R109.3038.3.7 TH35
insert
Part number R109303837TH35

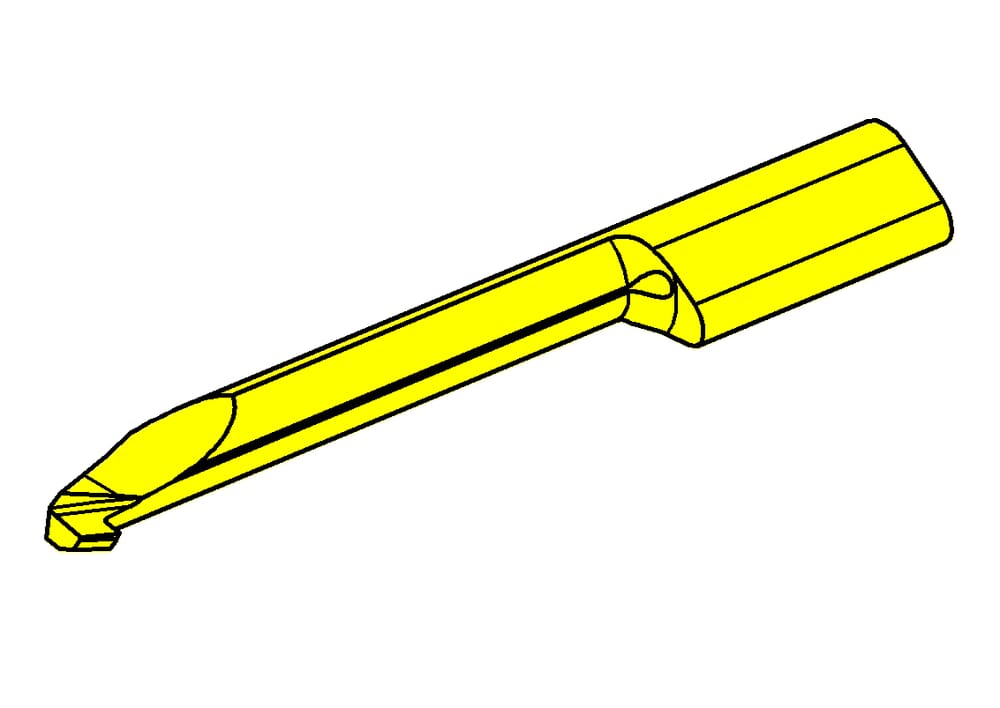

HORN insert R109.3038.3.7 TH35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
Smallest bore diameter (Dmin)
7
mm
Total length (l5)
38
mm
Setting range radial (f)
3.8
mm
Neck diameter (d)
4
mm
Katalog_SSC
109140
DIN_SSC
HORN-10914095N
ISO_SSC
HORN109140$95N$$$$$
Maximum depth of groove (tmax)
2.5
mm
Head size (a)
6.7
mm
Top radius (r)
0.2
mm
Neck length (l2)
20
mm
| Downloads | |
|---|---|
| R109303837_20211123_231159190.DXF | Download |
| R109303837_20210630_174819488.STP | Download |
| Download all files | |
