R111.0810.45 EG55
Insert
Part number R111081045EG55

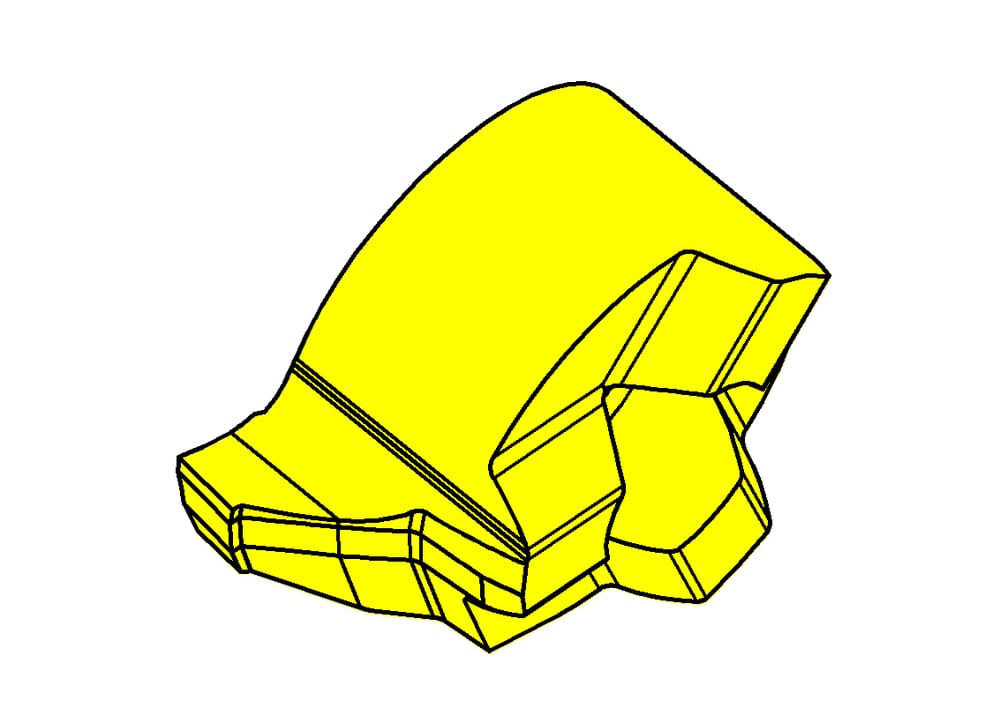

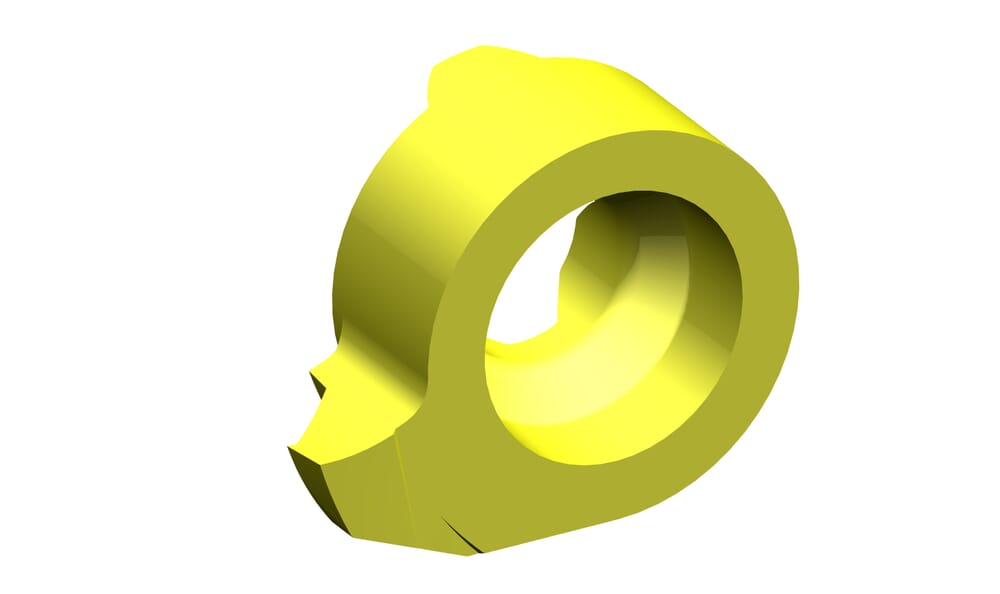

HORN Insert R111.0810.45 EG55 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11

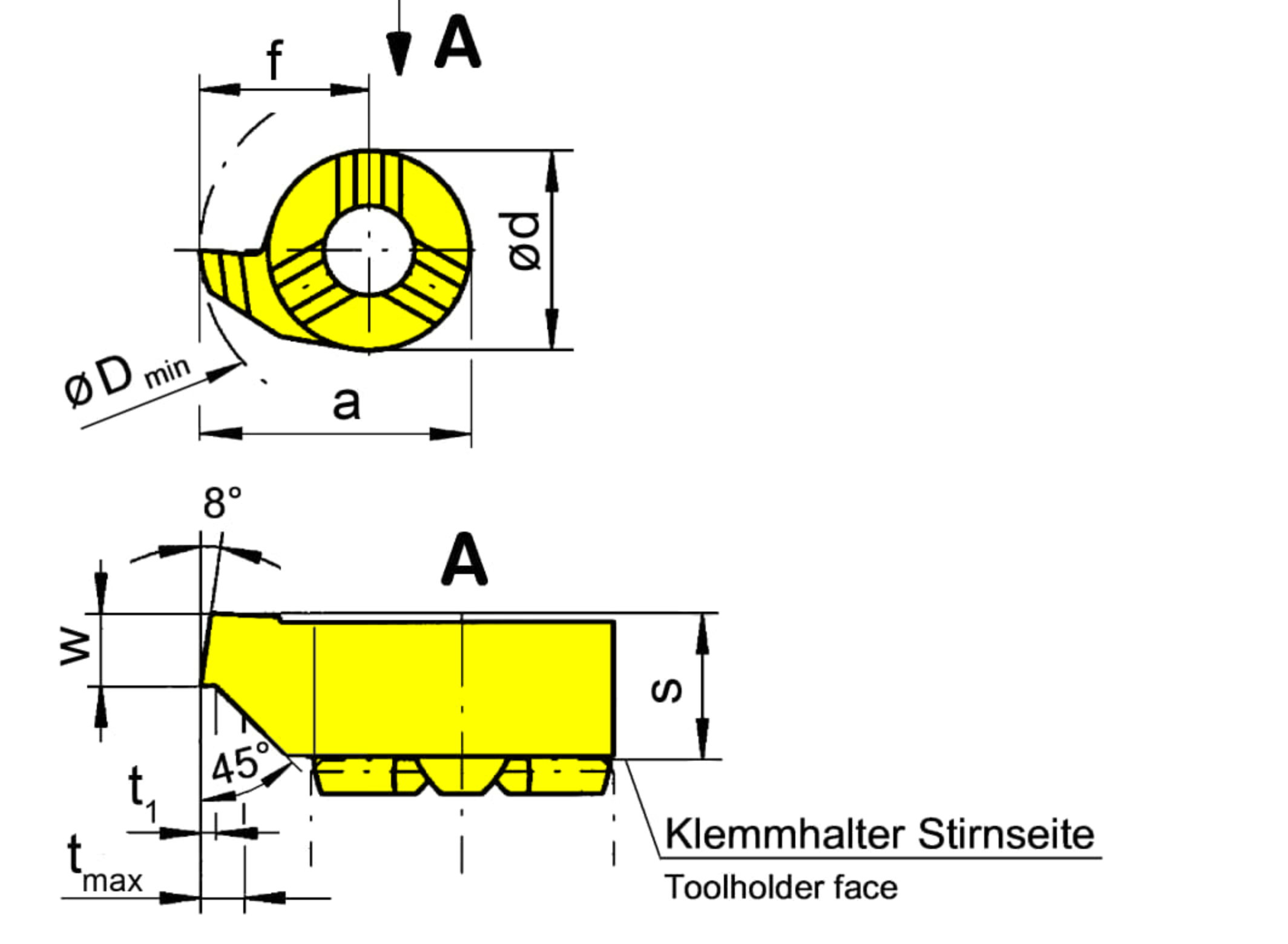

smallest-bore-diameter-met
11
mm
cutting-insert-height-met
3.95
mm
tooth-diameter-met
8
mm
cutting-width-met
1
mm
Katalog_SSC
111080R
DIN_SSC
HORN-11108084R
ISO_SSC
HORN111080$84R$$$$$
groove-depth-without-groove-outer-edge-chamfer-met
0.2
mm
depth-of-groove-max-met
1.5
mm
head-size-met
10.7
mm
top-radius-met
6.7
mm
| Downloads | |
|---|---|
| R111081045_20210628_185913349.DXF | Download |
| R111081045_20230113_212359408.STP | Download |
| Download all files | |
