R114.0200.02 EG55

Insert

Part number R114020002EG55

HORN Insert R114.0200.02 EG55 for Turning

ISO_SSC

HORN114090$84R$$$$$

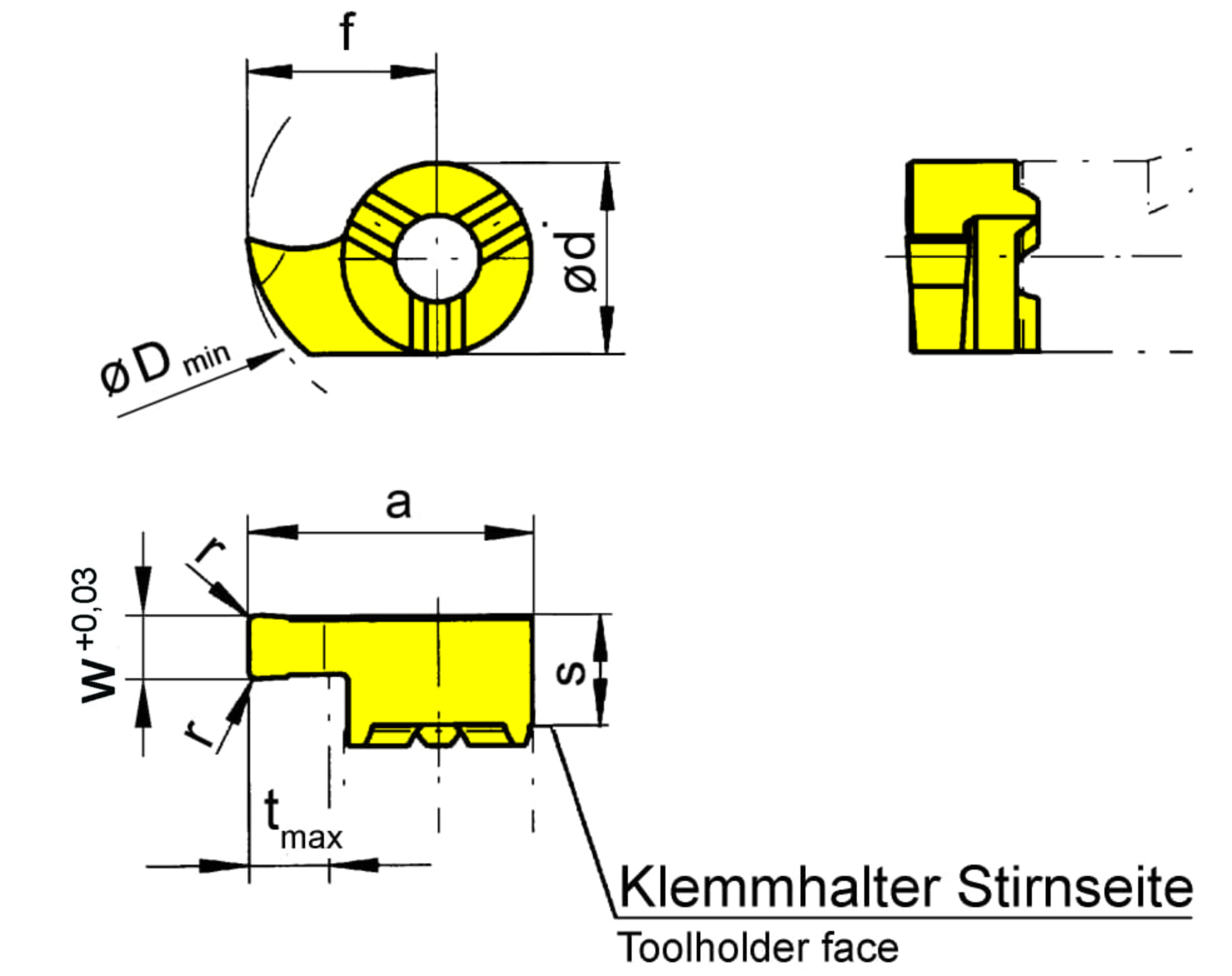

Smallest bore diameter (Dmin)

14 mm

Cutting insert height, Cutting insert thickness (s)

5.3 mm

Corner radius (r)

0.2 mm

Tooth diameter, head diameter (d)

9 mm

Setting range radial (f)

9 mm

Width of groove (w)

2 mm

Katalog_SSC

114090R

DIN_SSC

HORN-11409084R

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax)

4 mm

Head size (a)

13.5 mm
