R114.3090.02 TH35
Inserts
Part number R114309002TH35

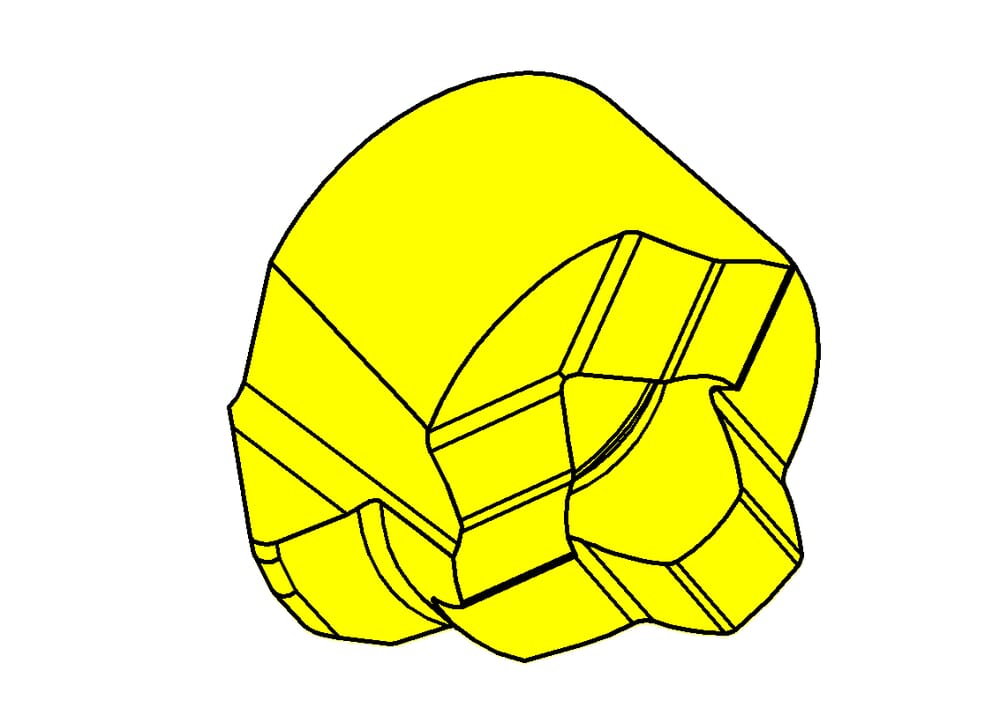

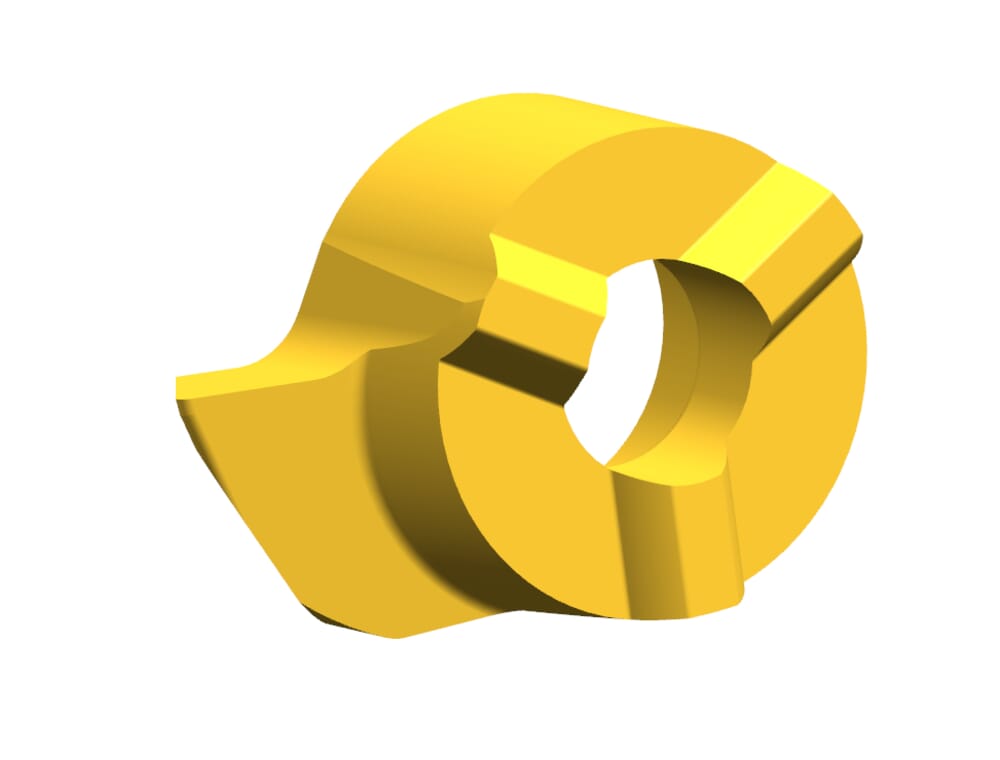

HORN Inserts R114.3090.02 TH35 for Turning
Please note:Technical instructions

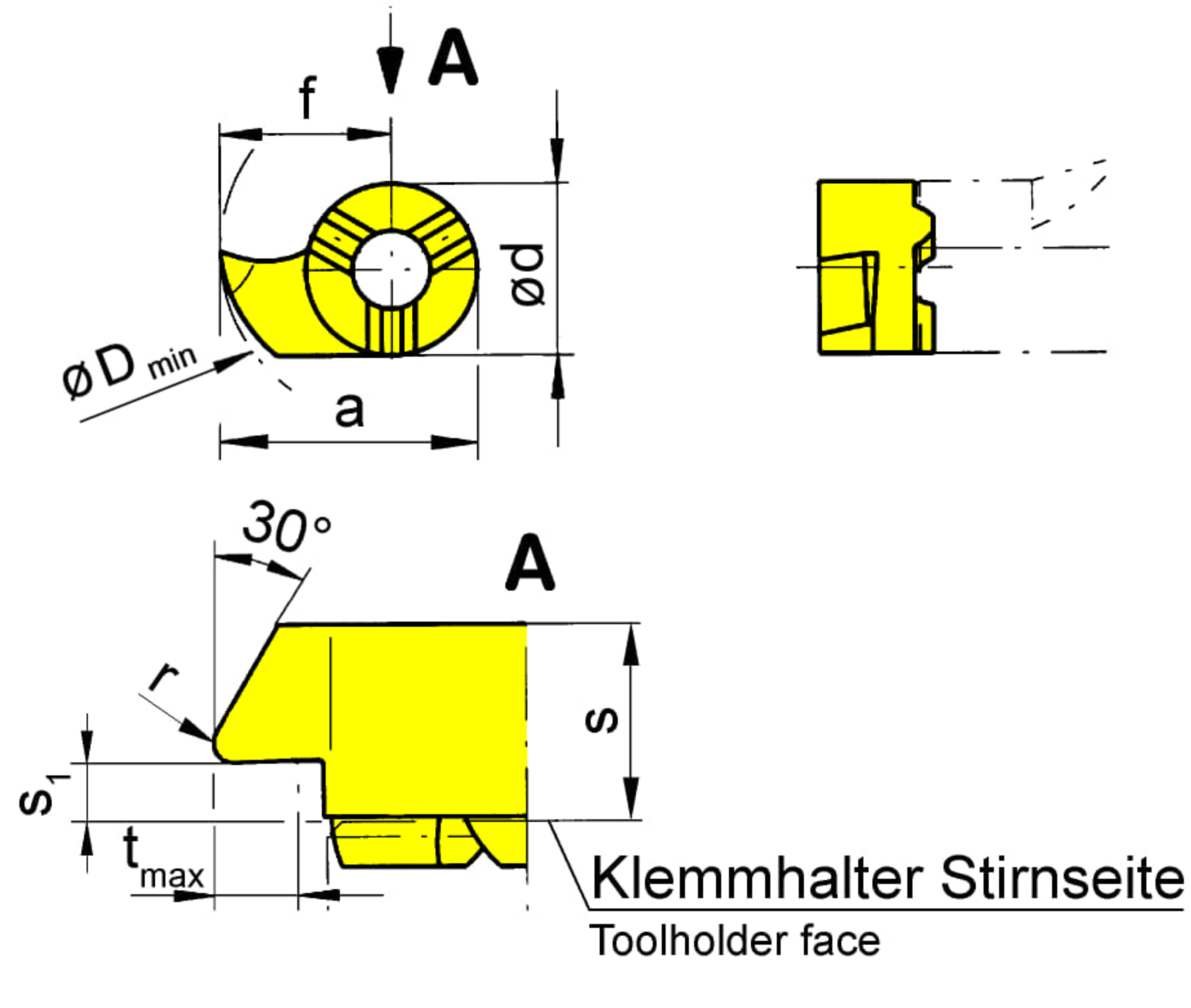

Cutting insert width (s1)
2.4
mm
Smallest bore diameter (Dmin)
13.8
mm
Cutting insert height, Cutting insert thickness (s)
5.5
mm
Tooth diameter, head diameter (d)
9
mm
Setting range radial (f)
8.7
mm
Katalog_SSC
114090R
DIN_SSC
HORN-11409084R
ISO_SSC
HORN114090$84R$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
3.5
mm
Top radius (r)
0.2
mm
Downloads | |
---|---|
R114309002_20210628_195901522.DXF | Download |
R114309002_20210630_140923133.STP | Download |
Download all files |
