R116.0815.45 TI25
Inserts
Part number R116081545TI25

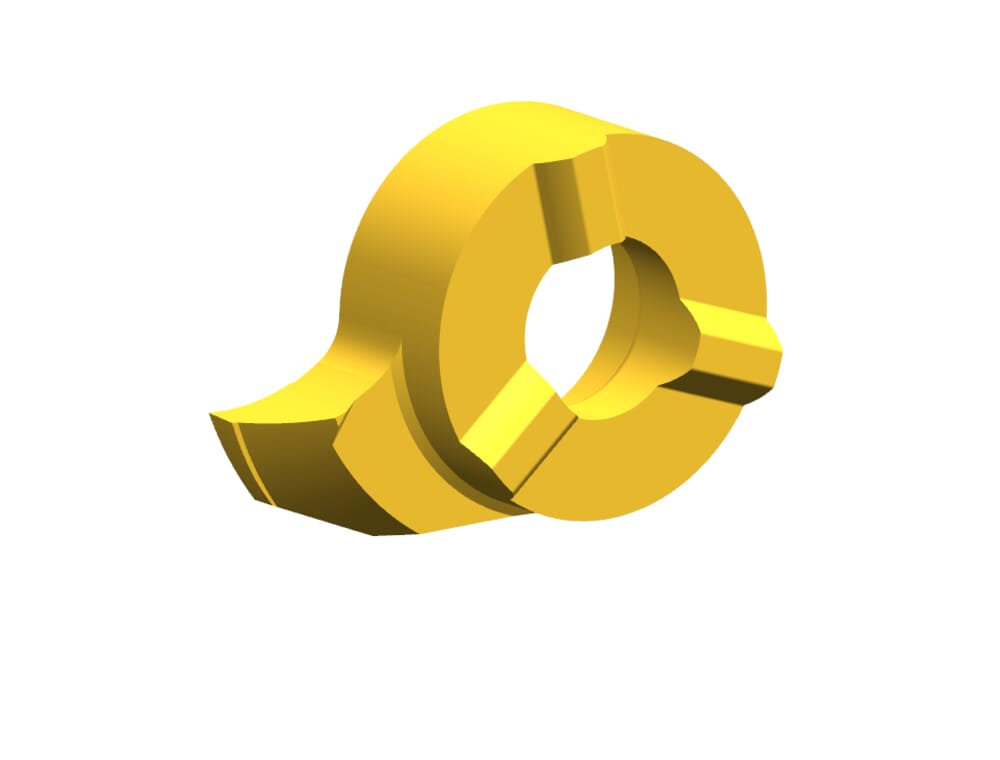

HORN Inserts R116.0815.45 TI25 for Turning
Please note:Technical instructions

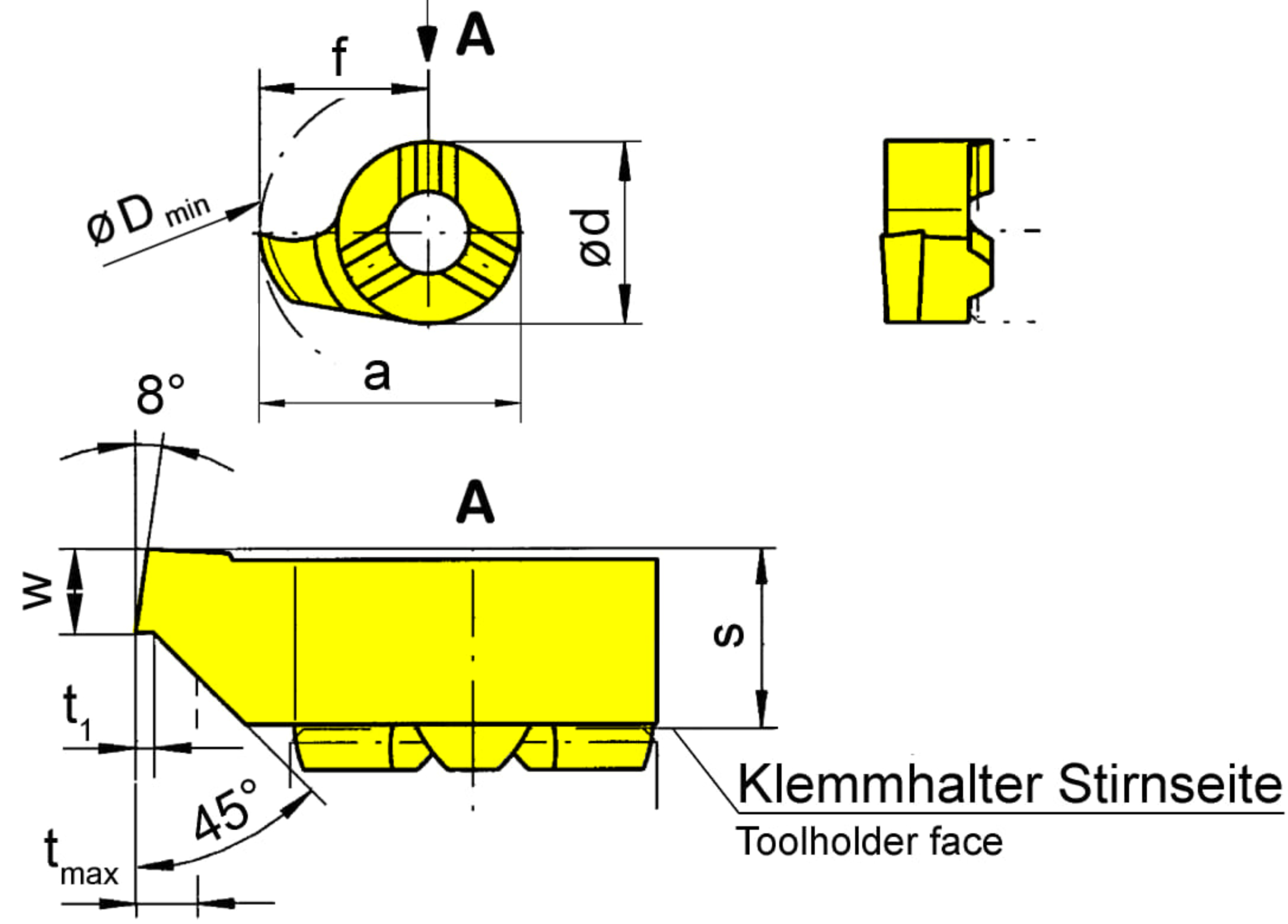

Smallest bore diameter (Dmin)
16
mm
Cutting insert height, Cutting insert thickness (s)
5.3
mm
Tooth diameter, head diameter (d)
11
mm
Setting range radial (f)
10.2
mm
Width of groove (w)
1.5
mm
Katalog_SSC
116110R
DIN_SSC
HORN-11611084R
ISO_SSC
HORN116110$84R$$$$$
eclass-shortcut
21-18-20-11
Groove depth without groove outer edge chamfer (t1)
0.2
mm
Maximum depth of groove (tmax)
1.5
mm
Head size (a)
15.7
mm
| Downloads | |
|---|---|
| R116081545_20210628_200619454.DXF | Download |
| R116081545_20230113_214520264.STP | Download |
| Download all files | |
