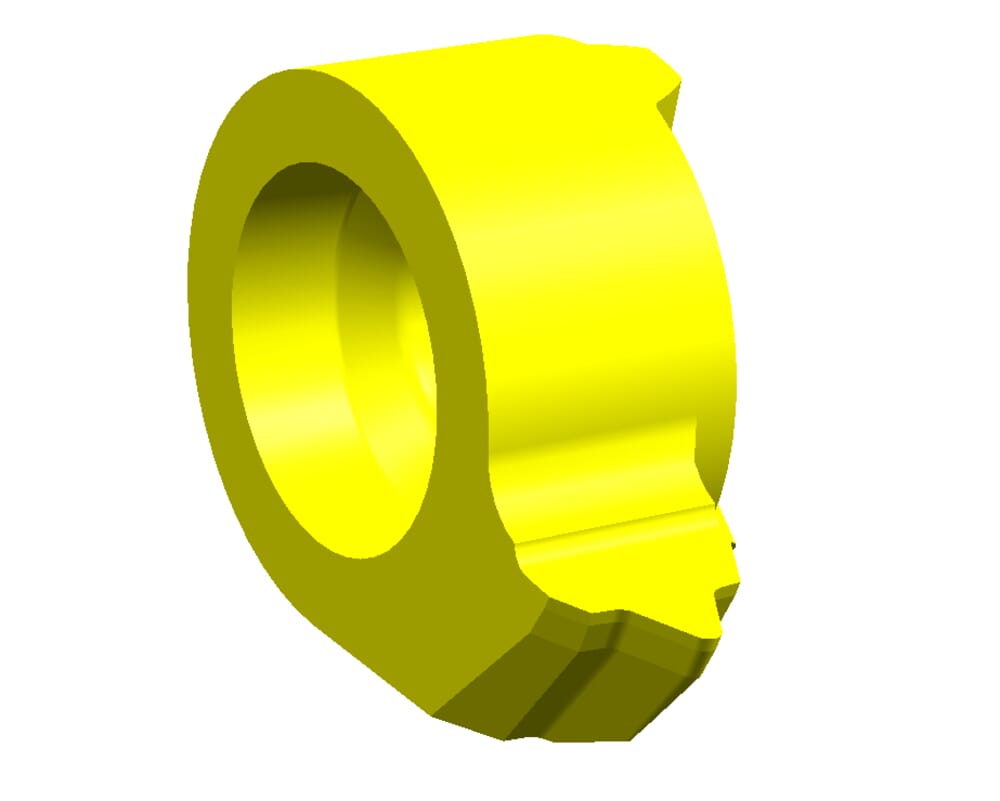

R116.5511.02 EG55
insert
Part number R116551102EG55
HORN insert R116.5511.02 EG55 for Gewinden
Please note:Technical instructions
ISO_SSC
HORN116110$84R$$$$$

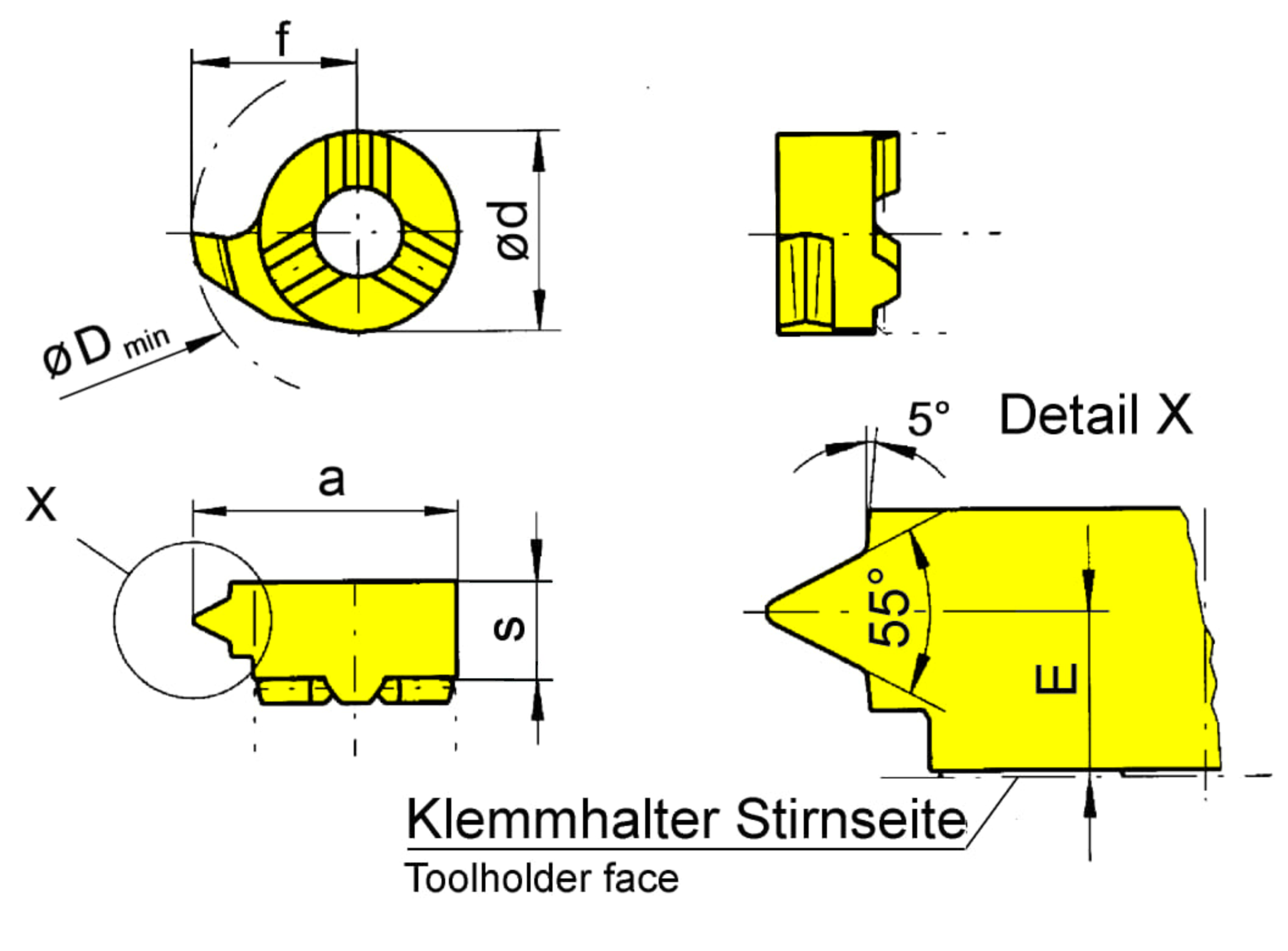

Smallest bore diameter (Dmin)
16
mm
Cutting insert height, Cutting insert thickness (s)
5.5
mm
Setting length (E)
3.5
mm
Tooth diameter, head diameter (d)
11
mm
Cutting insert width (a)
15.7
mm
Setting range radial (f)
10.2
mm
Katalog_SSC
116110R
DIN_SSC
HORN-11611084R
eclass-shortcut
21-18-20-11
Threads per inch (TPI)
11
number-of-teeth
1
St.
| Downloads | |
|---|---|
| R116551102_20210628_201154828.DXF | Download |
| R116551102_20230113_221225440.STP | Download |
| Download all files | |
