R368.2608.10.01
Toolholder
Part number R36826081001

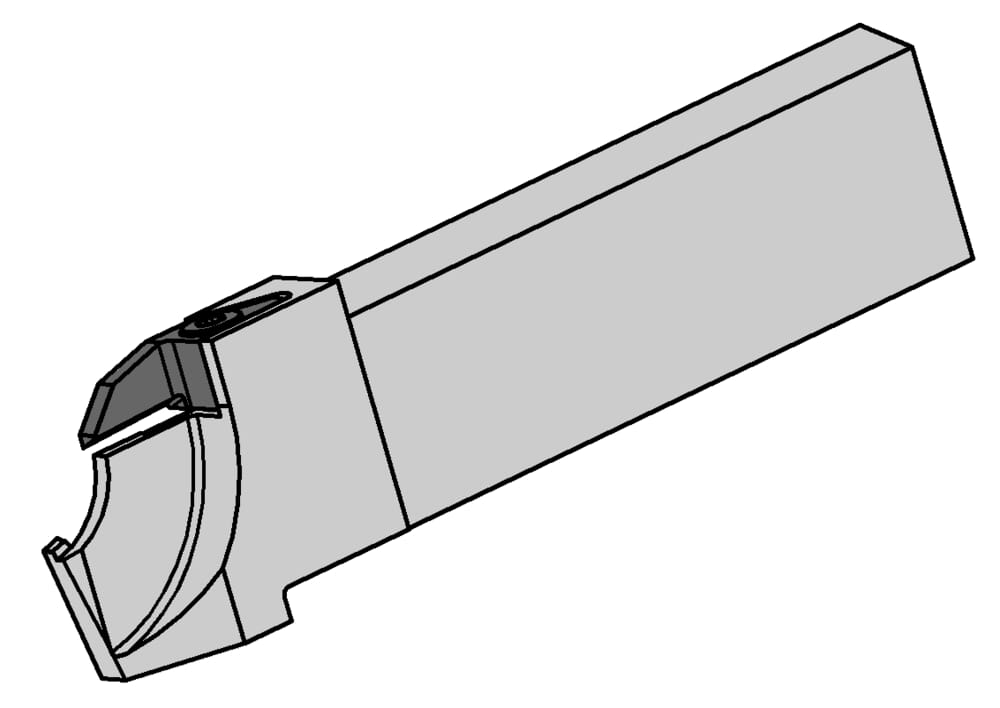

HORN Toolholder R368.2608.10.01 for Turning
Please note:Technical instructions

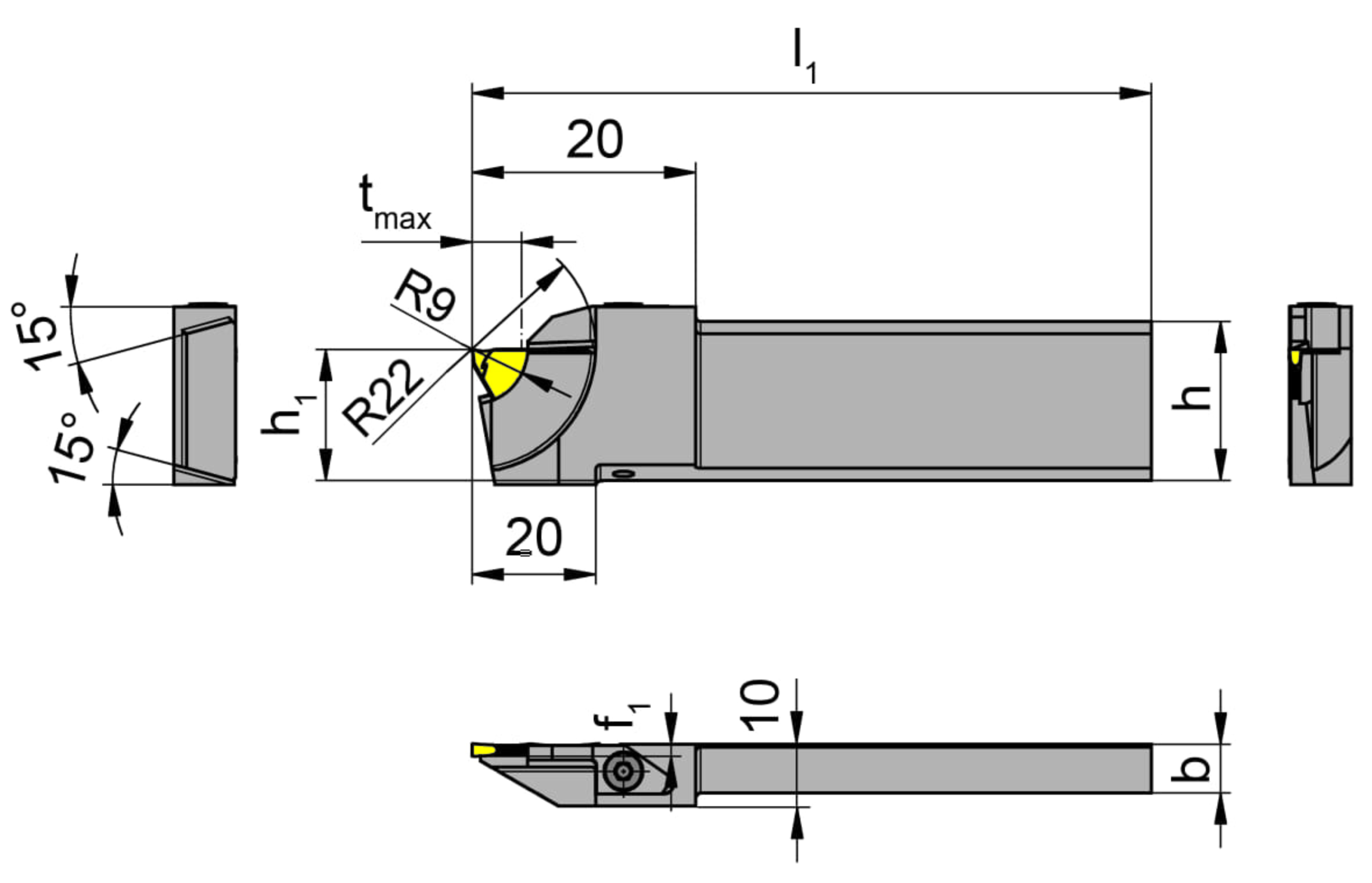

Width / thickness sword (b)
8
mm
Total length (including cutting insert) (l1)
110
mm
Shank height (h)
26
mm
Peak height (h1)
21.2
mm
ISO_CCTWS
HORN-31208$000N$$$$$
DIN_CCTWS
HORN-31208000N
Katalog_CCTWS
31208N
DIN_CCTMS
PMU02600105
ISO_CCTMS
PMU01C0260$$$$
eclass-shortcut
21-18-10-04
| Downloads | |
|---|---|
| R36826081001.DXF | Download |
| R36826081001_20240117_033855921.STP | Download |
| Download all files | |
