RB106.0012.01
Toolholder
Part number RB106001201

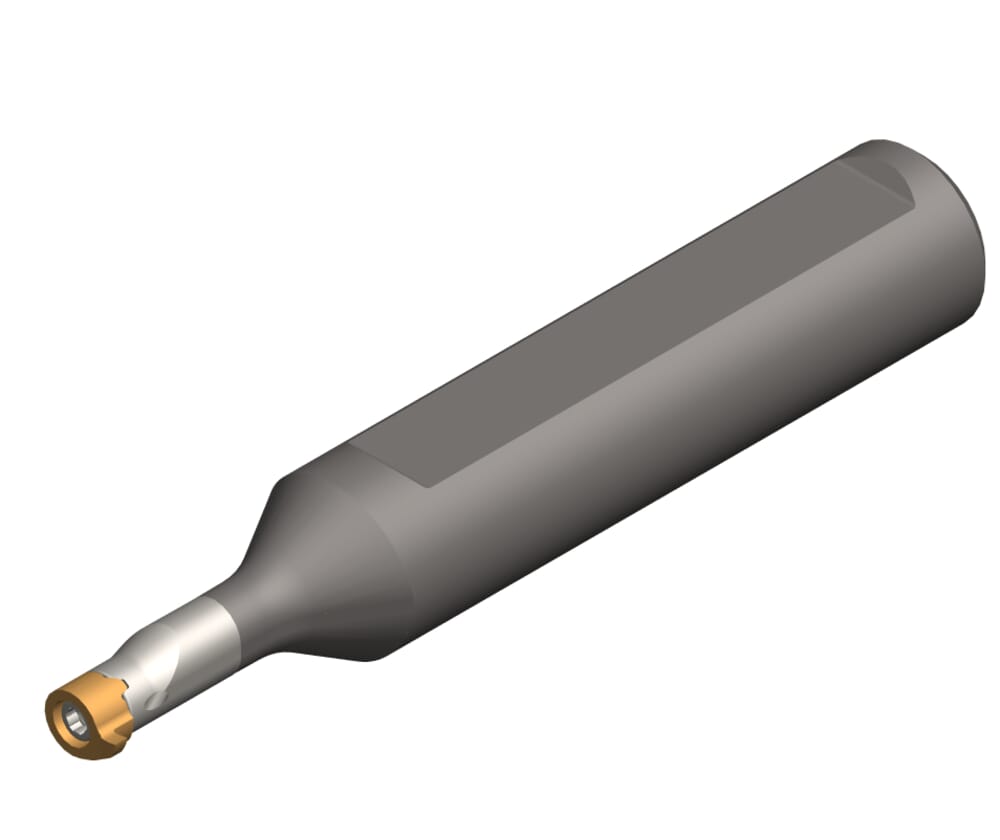

HORN Toolholder RB106.0012.01 for Turning
Please note:Technical instructions
Shank, clamping diameter (d)
12
eclass-shortcut
21-18-10-05
ISO_CCTMS
ZYL50G1200$$$$
DIN_CCTMS
ZYL01205015
Katalog_CCTWS
106044R
DIN_CCTWS
HORN-10604484R
ISO_CCTWS
HORN106044$84R$$$$$
Length of clamping surface(s) (l4)
40
mm
Height clamping surface(s) (h)
11
mm
Total length (including cutting insert) (l1)
70
mm
Outcropping, neck, working length (l2)
14
mm
| Downloads | |
|---|---|
| RB106001201_20210628_235115046.DXF | Download |
| RB106001201_20230116_121618294.STP | Download |
| Download all files | |
