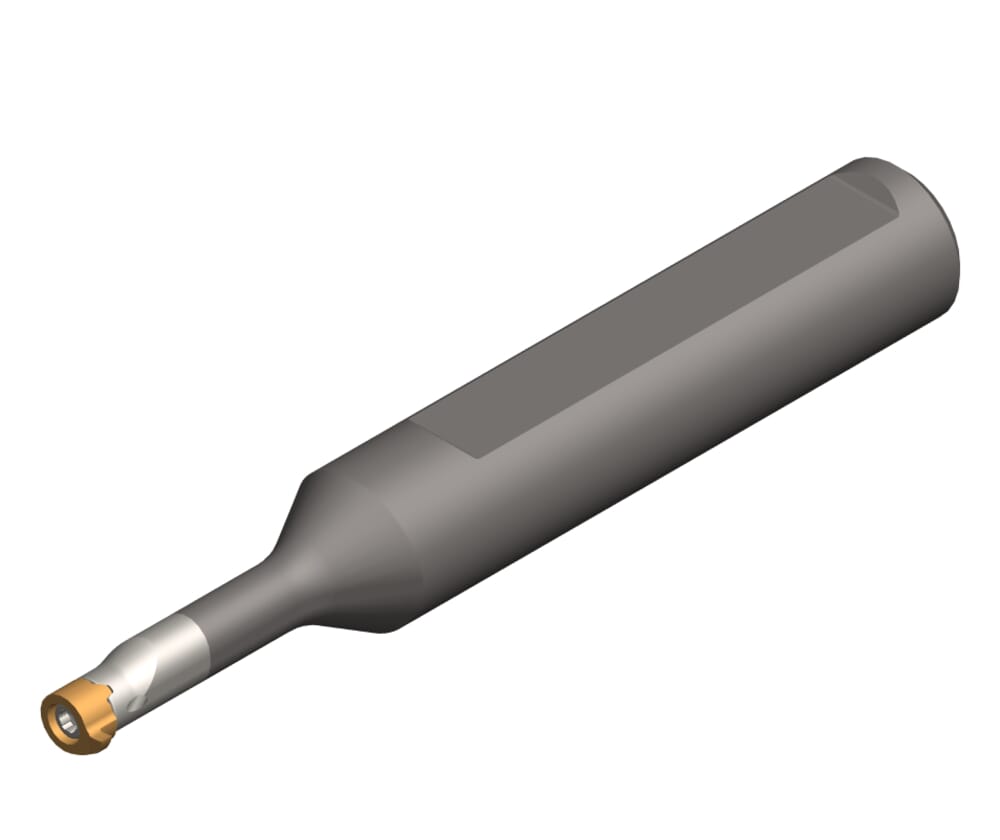

RB106.0012.02
Toolholder
Part number RB106001202
HORN Toolholder RB106.0012.02 for Turning
Please note:Technical instructions

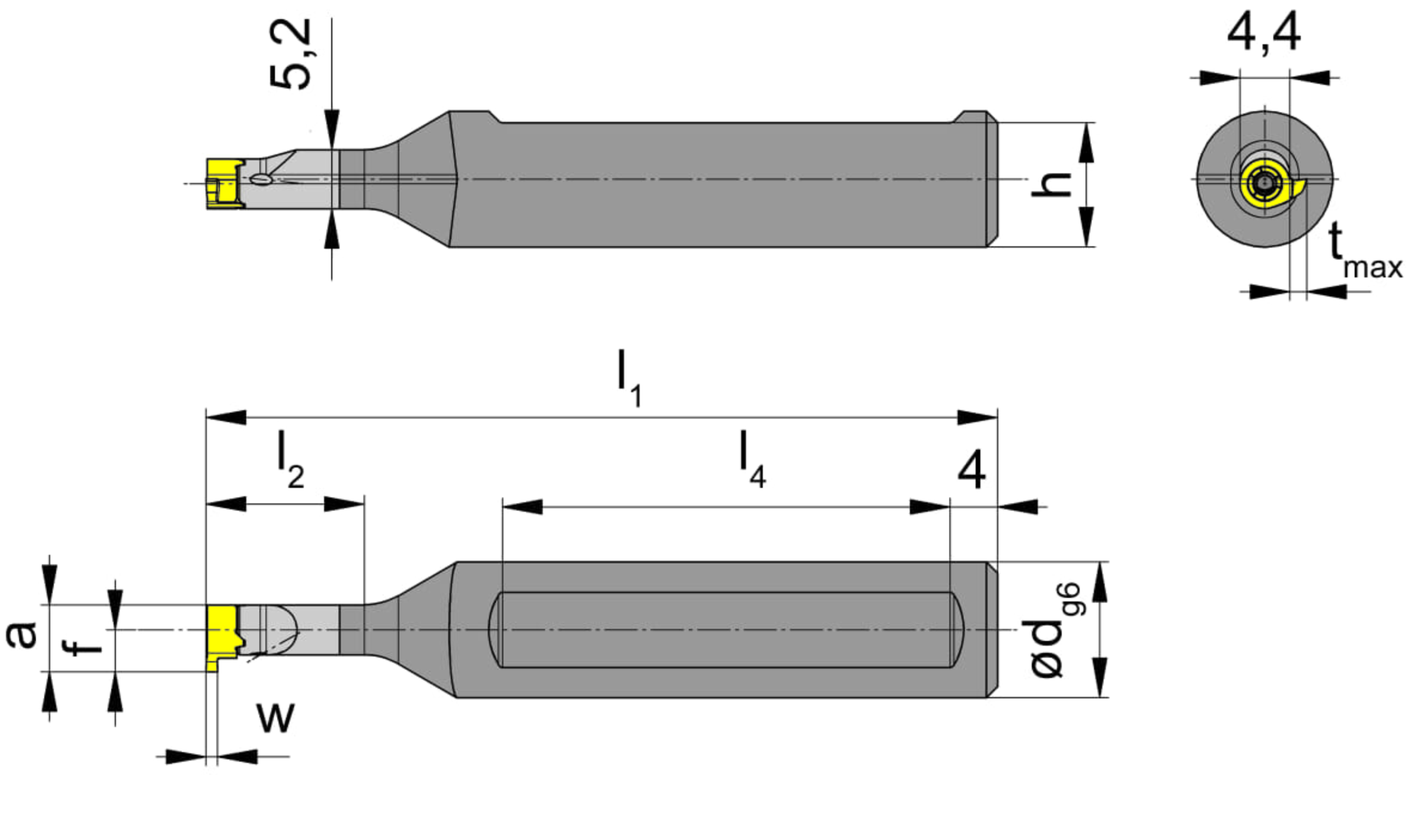

Shank, clamping diameter (d)
12
eclass-shortcut
21-18-10-05
ISO_CCTMS
ZYL50G1200$$$$
DIN_CCTMS
ZYL01205015
Katalog_CCTWS
106044R
DIN_CCTWS
HORN-10604484R
ISO_CCTWS
HORN106044$84R$$$$$
Length of clamping surface(s) (l4)
40
mm
Height clamping surface(s) (h)
11
mm
Total length (including cutting insert) (l1)
80
mm
Outcropping, neck, working length (l2)
20
mm
| Downloads | |
|---|---|
| RB106001202_20210628_235142078.DXF | Download |
| RB106001202_20230116_121628106.STP | Download |
| Download all files | |
