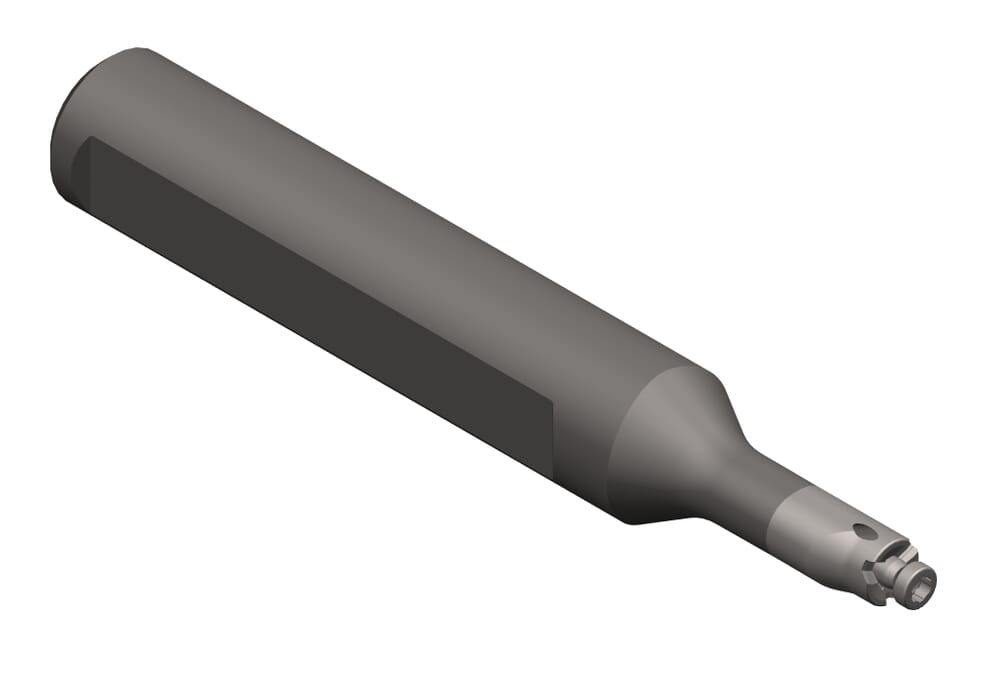

RB107.0012.01
Toolholder
Part number RB107001201
HORN Toolholder RB107.0012.01 for Turning
Please note:Technical instructions
Shank, clamping diameter (d)
12
eclass-shortcut
21-18-10-05
ISO_CCTMS
ZYL50G1200$$$$
DIN_CCTMS
ZYL01205015
Katalog_CCTWS
107052R
DIN_CCTWS
HORN-10705284R
ISO_CCTWS
HORN107052$84R$$$$$
Length of clamping surface(s) (l4)
45
mm
Height clamping surface(s) (h)
11
mm
Total length (including cutting insert) (l1)
80
mm
Outcropping, neck, working length (l2)
18
mm
| Downloads | |
|---|---|
| RB107001201_20210628_235206266.DXF | Download |
| RB107001201_20230116_121657518.STP | Download |
| Download all files | |
