RB10P.0012.00S
Toolholder
Part number RB10P001200S

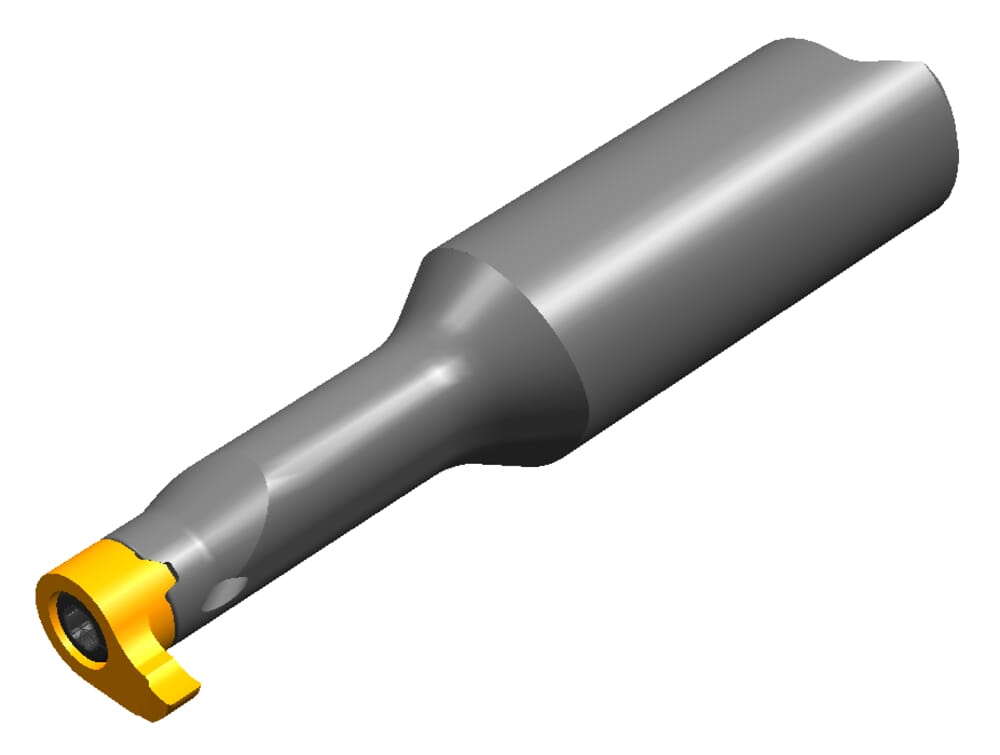

HORN Toolholder RB10P.0012.00S for Turning
Please note:Technical instructions

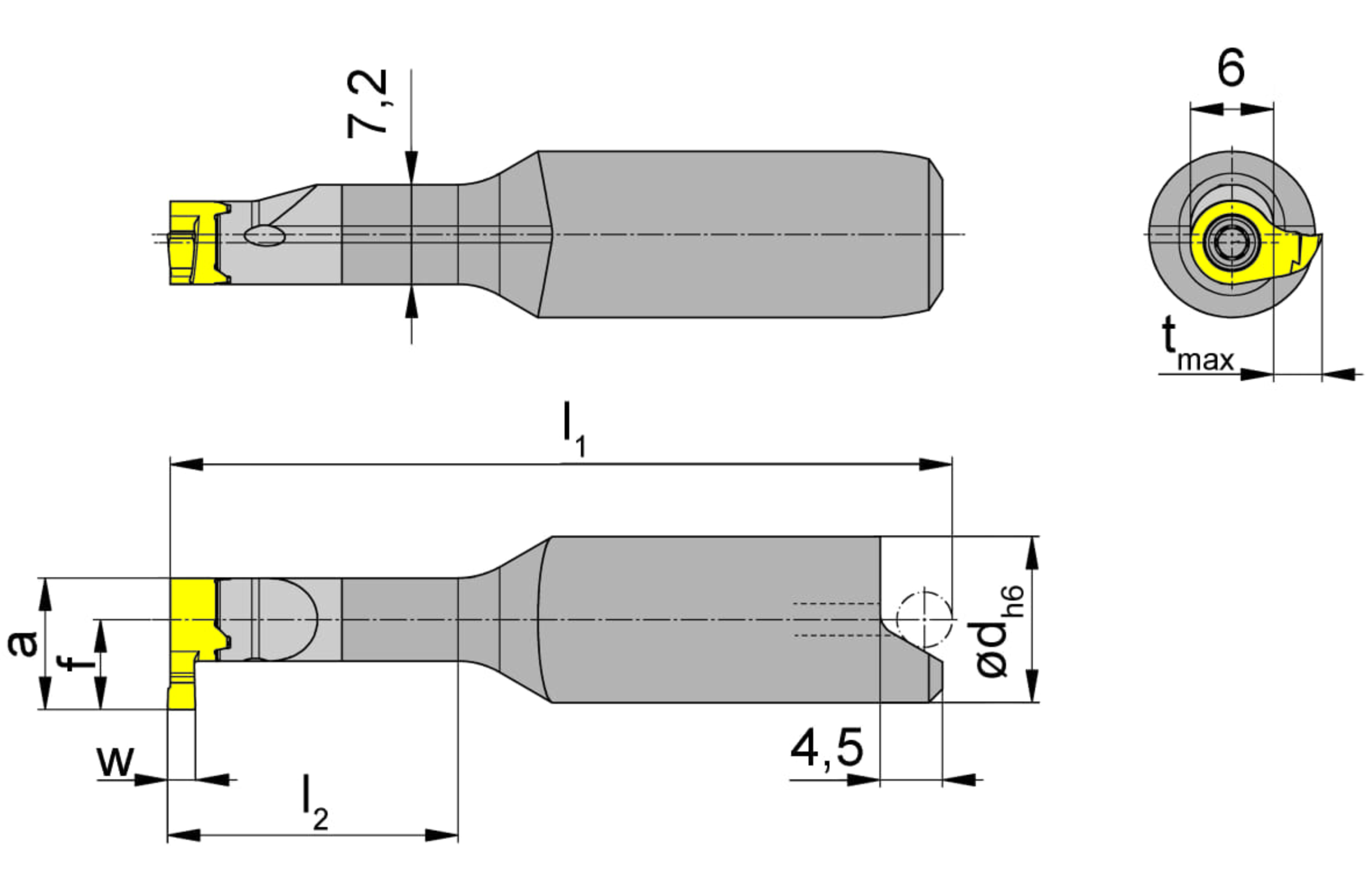

Outcropping, neck, working length (l2)
12.5
mm
Total length (including cutting insert) (l1)
48.7
mm
Shank, clamping diameter (d)
12
ISO_CCTWS
HORN10P060$84R$$$$$
DIN_CCTWS
HORN-10P06084R
Katalog_CCTWS
10P060R
DIN_CCTMS
ZYL01200115
ISO_CCTMS
ZYL01G1200h$06
eclass-shortcut
21-18-10-05
| Downloads | |
|---|---|
| RB10P001200S.DXF | Download |
| RB10P_0012_00S.STP | Download |
| Download all files | |
