RB10P.0012.03

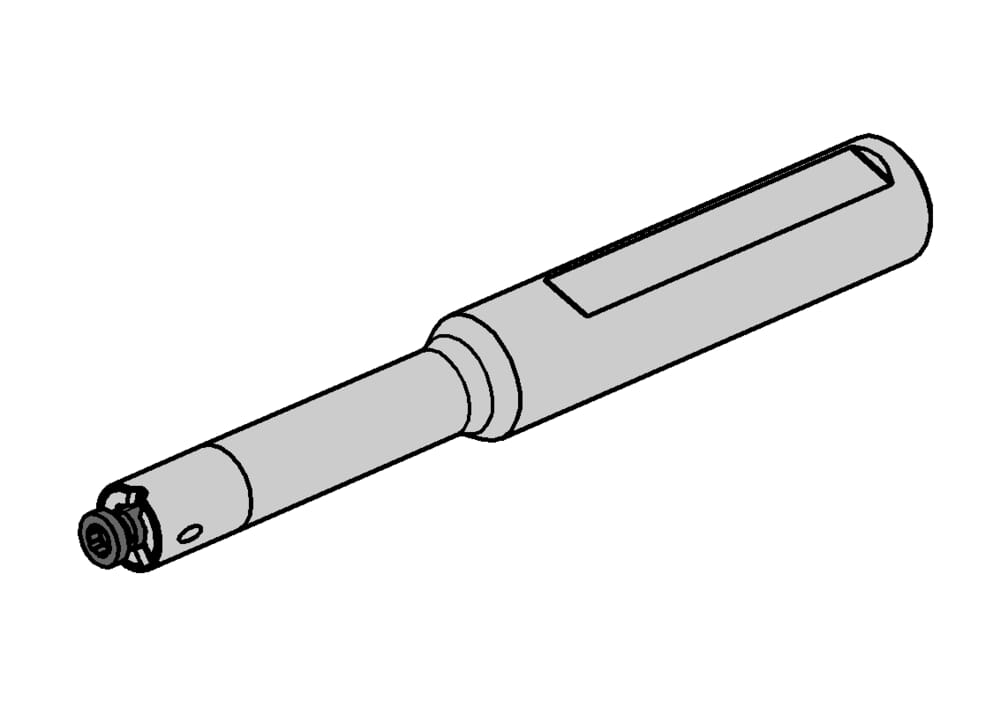

Toolholder
Part number RB10P001203

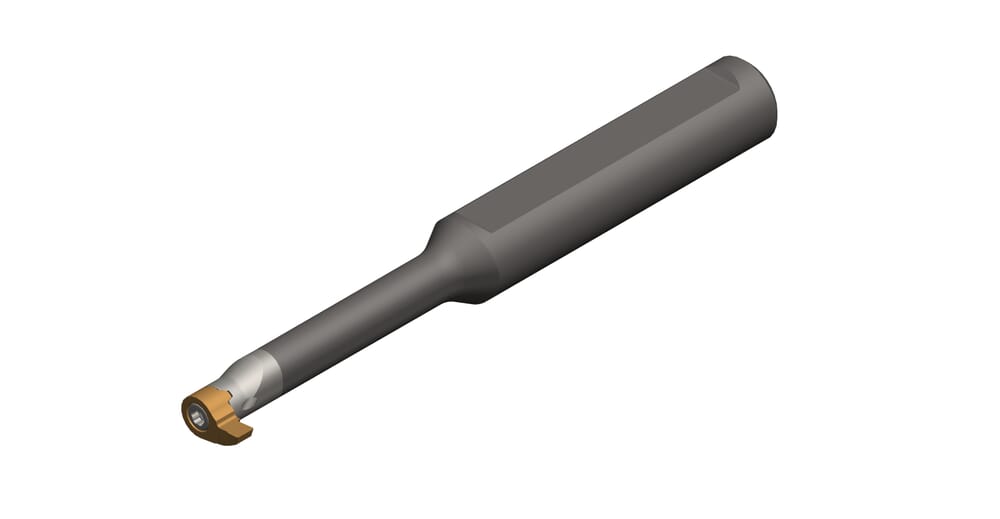

HORN Toolholder RB10P.0012.03 for Turning
Please note:Technical instructions

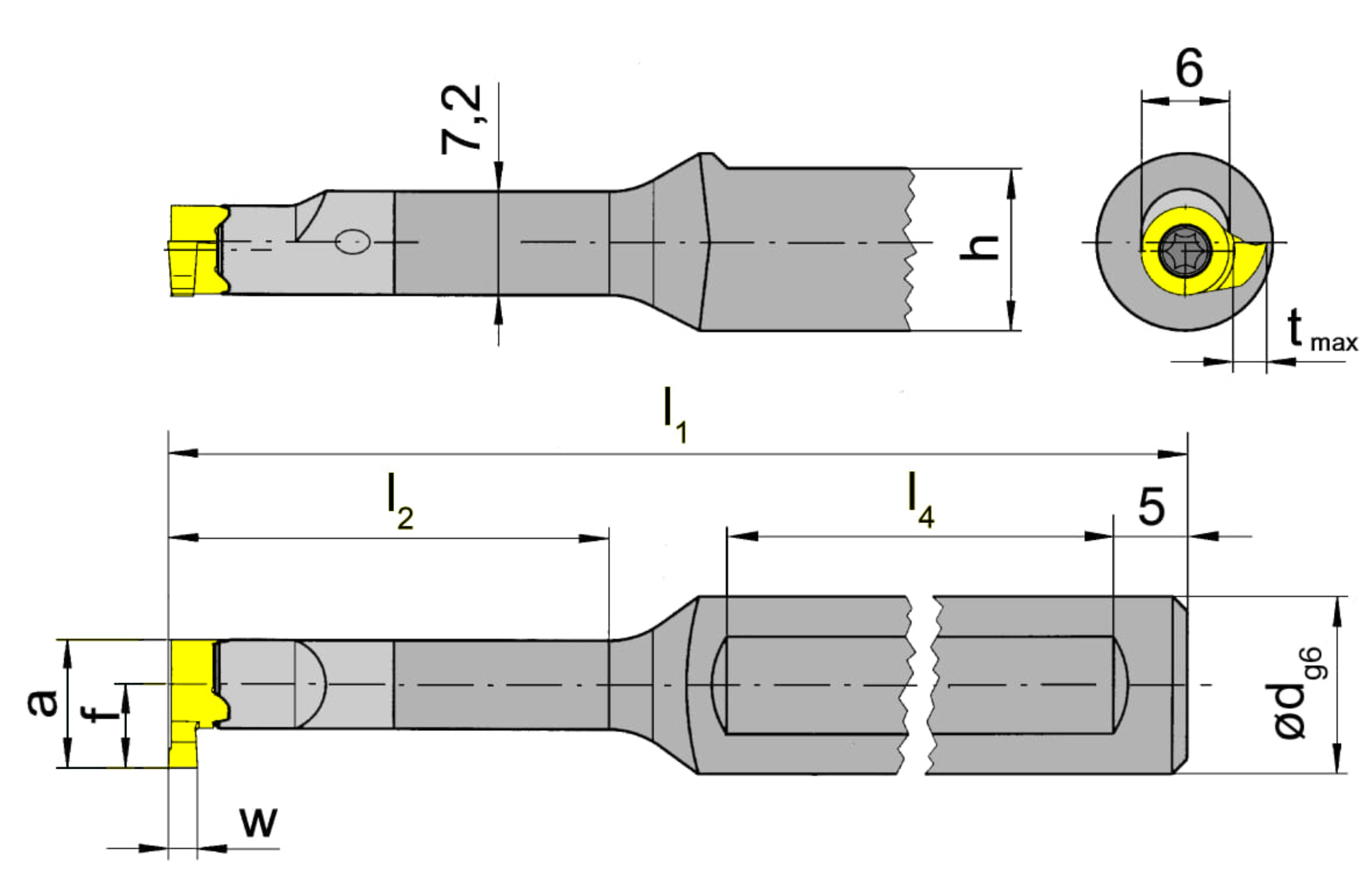

Shank, clamping diameter (d)
12
eclass-shortcut
21-18-10-05
ISO_CCTMS
ZYL50G1200$$$$
DIN_CCTMS
ZYL01205015
Katalog_CCTWS
10P060R
DIN_CCTWS
HORN-10P06084R
ISO_CCTWS
HORN10P060$84R$$$$$
Length of clamping surface(s) (l4)
45
mm
Height clamping surface(s) (h)
11
mm
Total length (including cutting insert) (l1)
100
mm
Outcropping, neck, working length (l2)
42
mm
| Downloads | |
|---|---|
| RB10P001203_20210628_233956641.DXF | Download |
| RB10P_0012_03_20171121_232616150.STP | Download |
| Download all files | |
