RB11P.0012.00
Toolholder
Part number RB11P001200

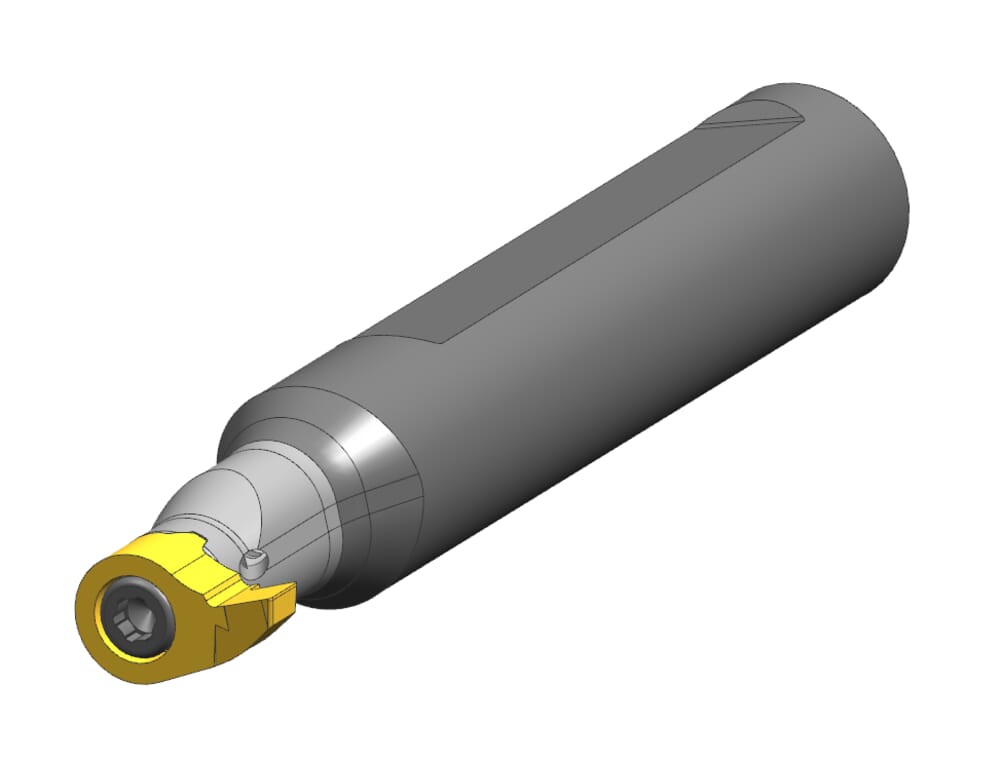

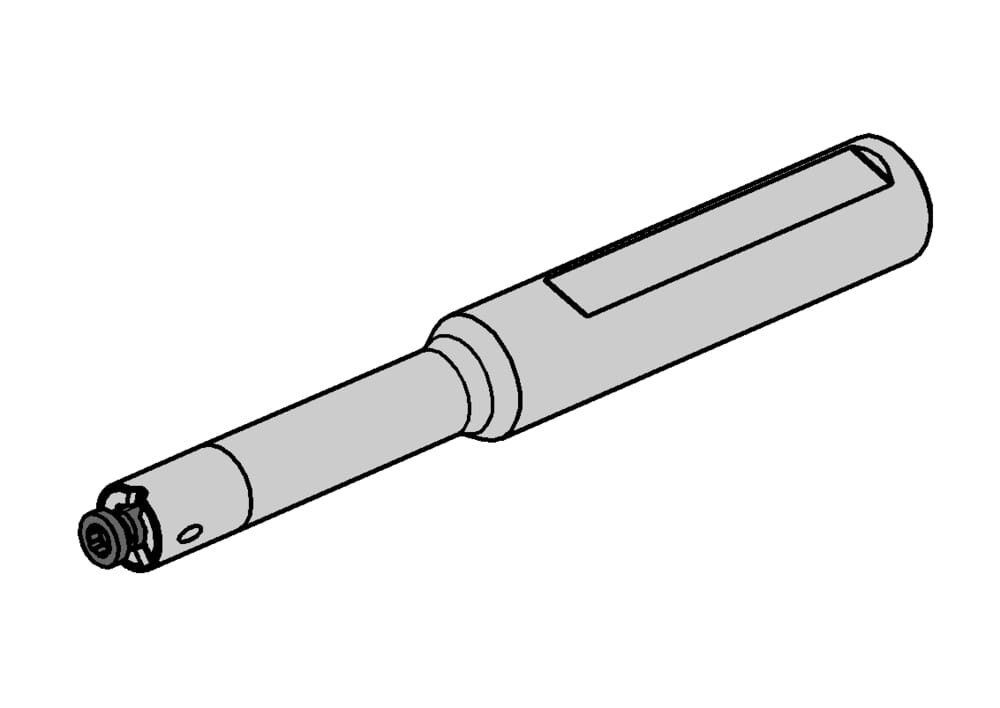

HORN Toolholder RB11P.0012.00 for Turning
Please note:Technical instructions

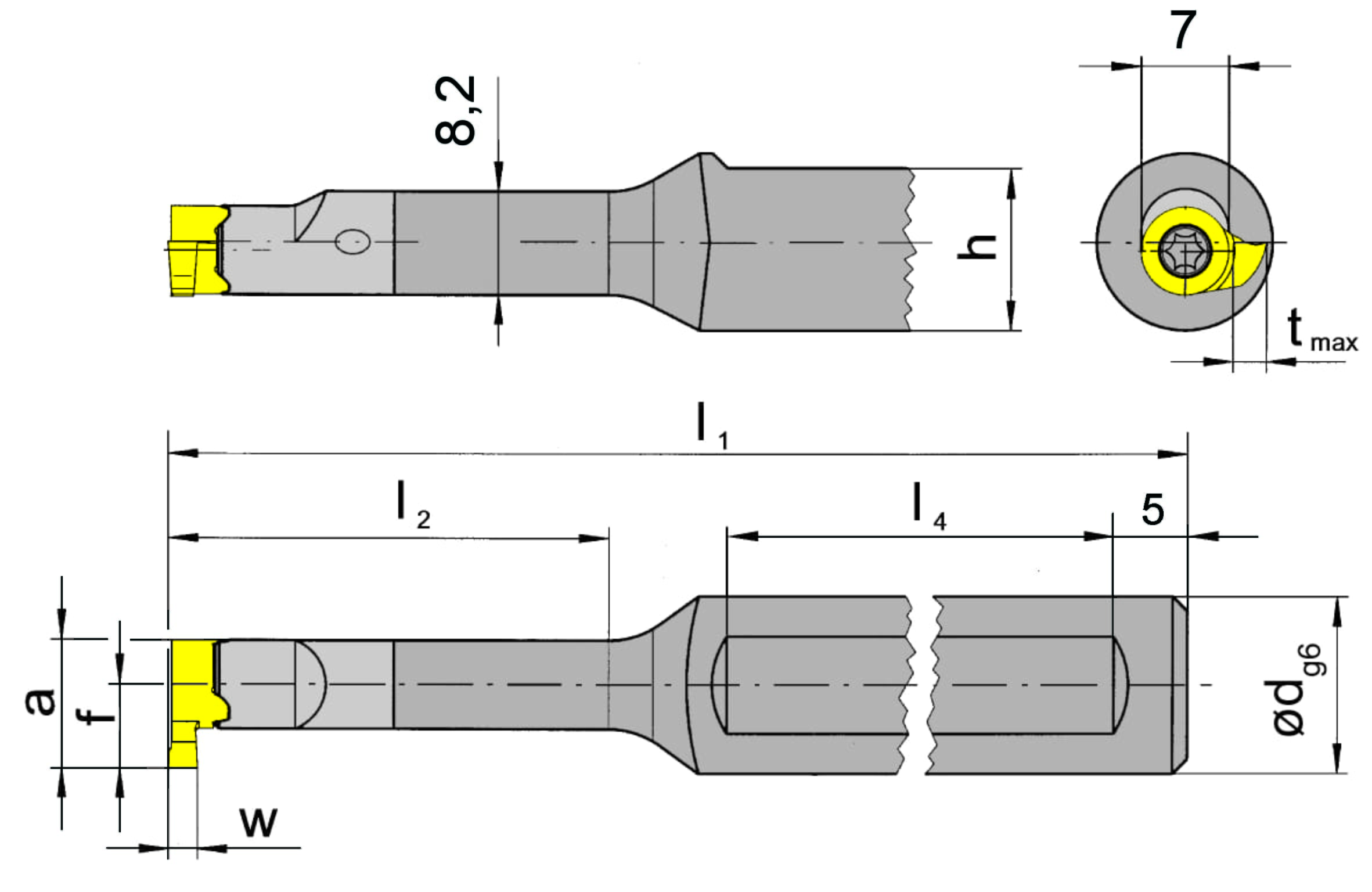

Shank, clamping diameter (d)
12
eclass-shortcut
21-18-10-05
ISO_CCTMS
ZYL50G1200$$$$
DIN_CCTMS
ZYL01205015
Katalog_CCTWS
11P070R
DIN_CCTWS
HORN-11P07084R
ISO_CCTWS
HORN11P070$84R$$$$$
Length of clamping surface(s) (l4)
40
mm
Height clamping surface(s) (h)
11
mm
Total length (including cutting insert) (l1)
75
mm
Outcropping, neck, working length (l2)
15
mm
| Downloads | |
|---|---|
| RB11P001200_20210628_234034908.DXF | Download |
| RB11P_0012_00.STP | Download |
| Download all files | |
