RB11P.0012.00S
Toolholder
Part number RB11P001200S

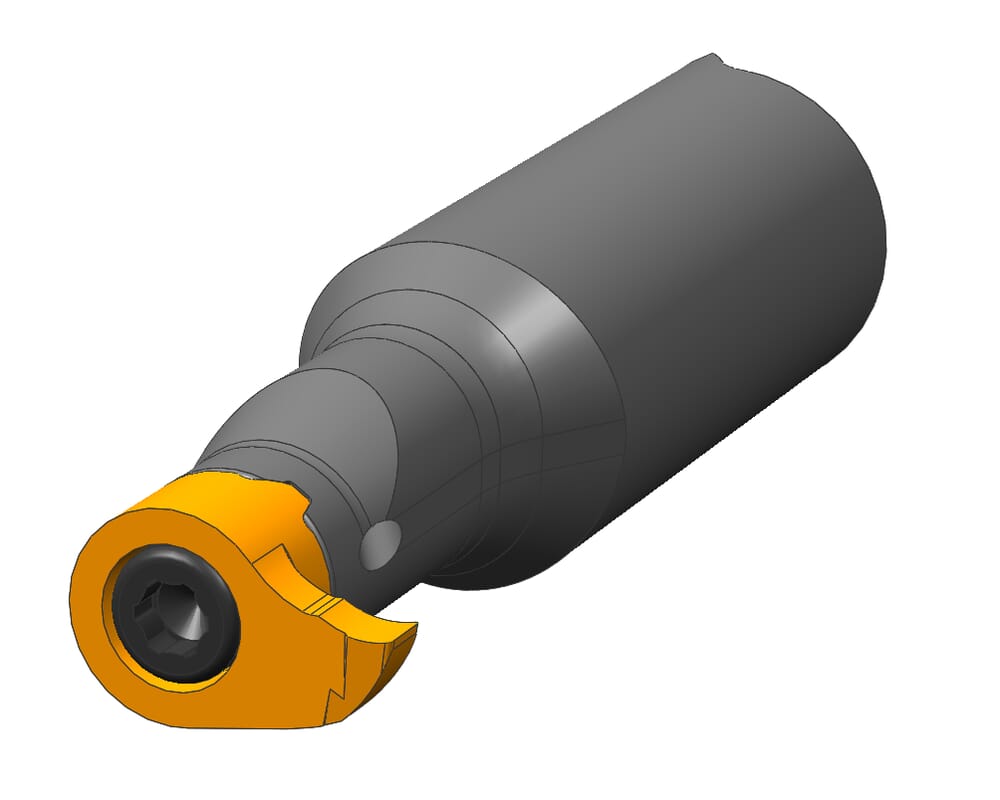

HORN Toolholder RB11P.0012.00S for Turning
Please note:Technical instructions

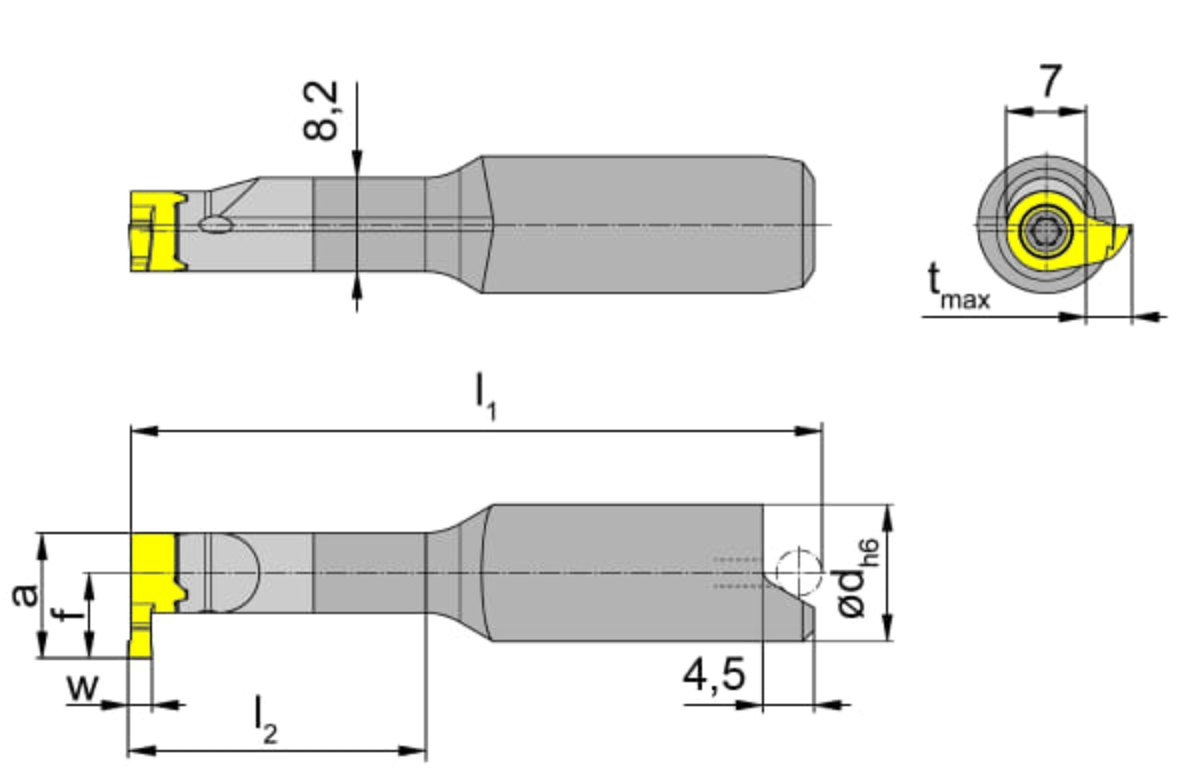

Outcropping, neck, working length (l2)
15
mm
Total length (including cutting insert) (l1)
49.7
mm
Shank, clamping diameter (d)
12
ISO_CCTWS
HORN11P070$84R$$$$$
DIN_CCTWS
HORN-11P07084R
Katalog_CCTWS
11P070R
DIN_CCTMS
ZYL01200115
ISO_CCTMS
ZYL01G1200h$06
eclass-shortcut
21-18-10-05
| Downloads | |
|---|---|
| RB11P001200S_20210628_234042439.DXF | Download |
| RB11P_0012_00S.STP | Download |
| Download all files | |
