RB11P.0012.2.01
Toolholder
Part number RB11P0012201

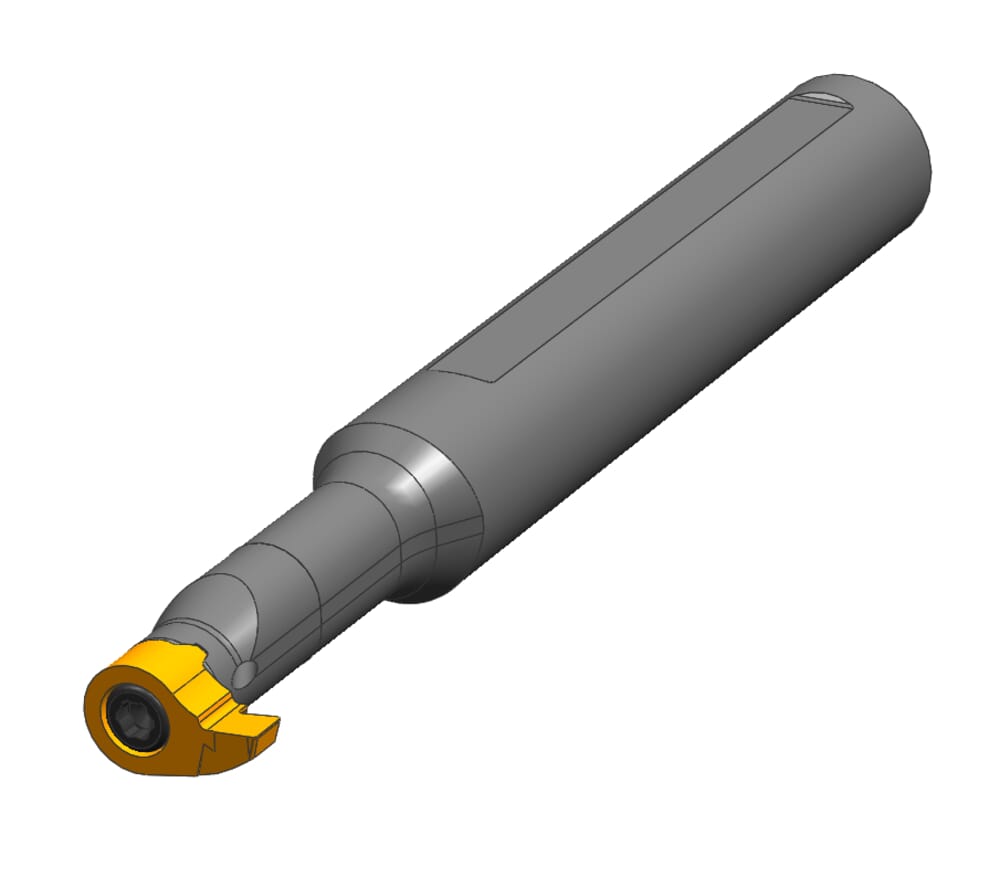

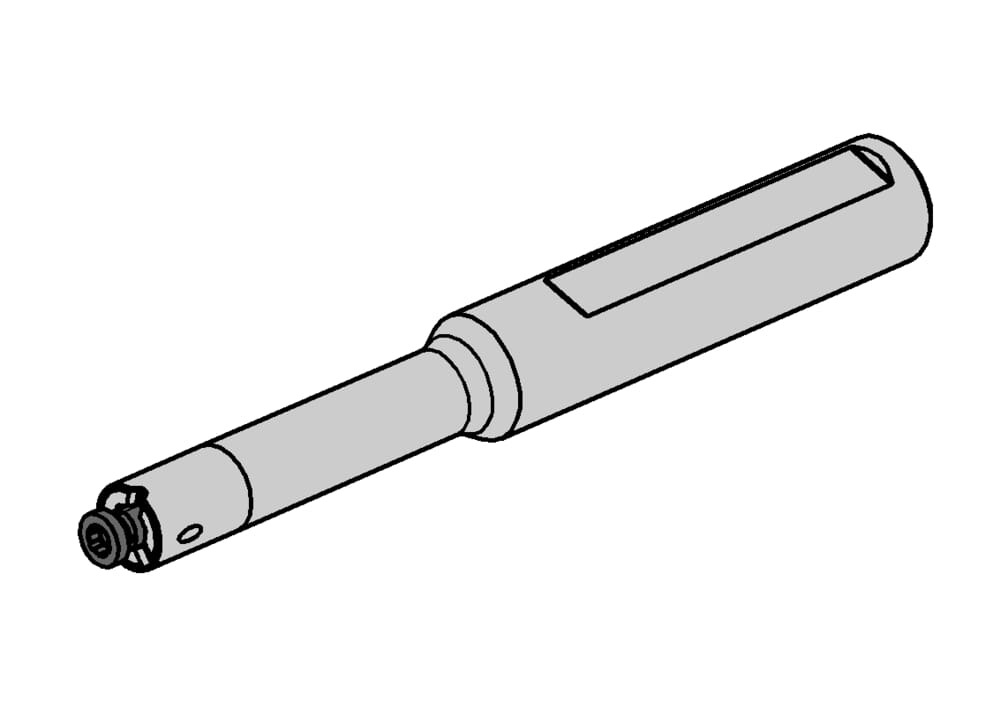

HORN Toolholder RB11P.0012.2.01 for Turning
Please note:Technical instructions
Shank, clamping diameter (d)
12
eclass-shortcut
21-18-10-05
ISO_CCTMS
ZYL23G1200$$$$
DIN_CCTMS
ZYL01202315
Katalog_CCTWS
11P070R
DIN_CCTWS
HORN-11P07084R
ISO_CCTWS
HORN11P070$84R$$$$$
Length of clamping surface(s) (l4)
50
mm
Height clamping surface(s) (h)
11
mm
Total length (including cutting insert) (l1)
95
mm
Outcropping, neck, working length (l2)
26
mm
| Downloads | |
|---|---|
| RB11P0012201_20210628_234237020.DXF | Download |
| RB11P_0012_2_01.STP | Download |
| Download all files | |
