Toolholder
Part number RH100260871R

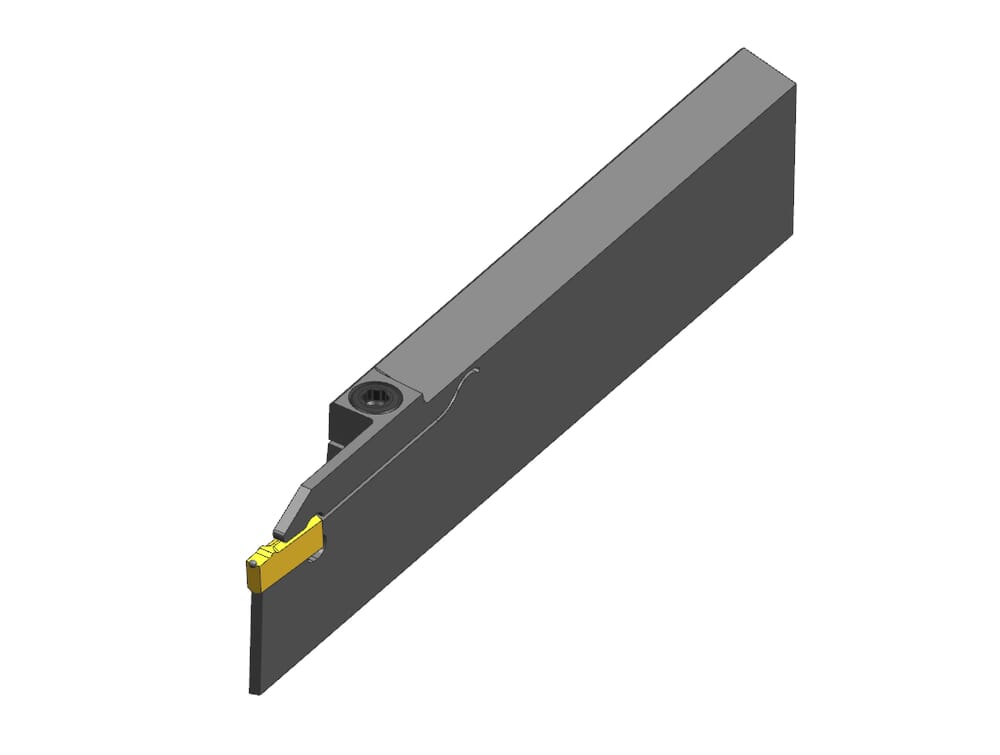

HORN Toolholder RH100.2608.71R for Turning
Please note:Technical instructions
Peak height (h1)
21.4
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
1
ISO_CCTMS
PMU01C0260$$$$
DIN_CCTMS
PMU02600105
Katalog_CCTWS
100018
DIN_CCTWS
HORN-100010058N
ISO_CCTWS
HORN100010058N$$$$$
Head length top (including cutting edge) (l3)
33.8
mm
Maximum workpiece diameter (Dmax)
50
mm
Maximum insertion depth (tmax)
25
mm
Head height (h)
26
mm
Total length (including cutting insert) (l1)
110
mm
Adjustment dimension (f1)
7.15
mm
Width / thickness sword (b)
7.9
mm
