RH224.2608.2.18.4.73.IK
Toolholder
Part number RH2242608218473IK

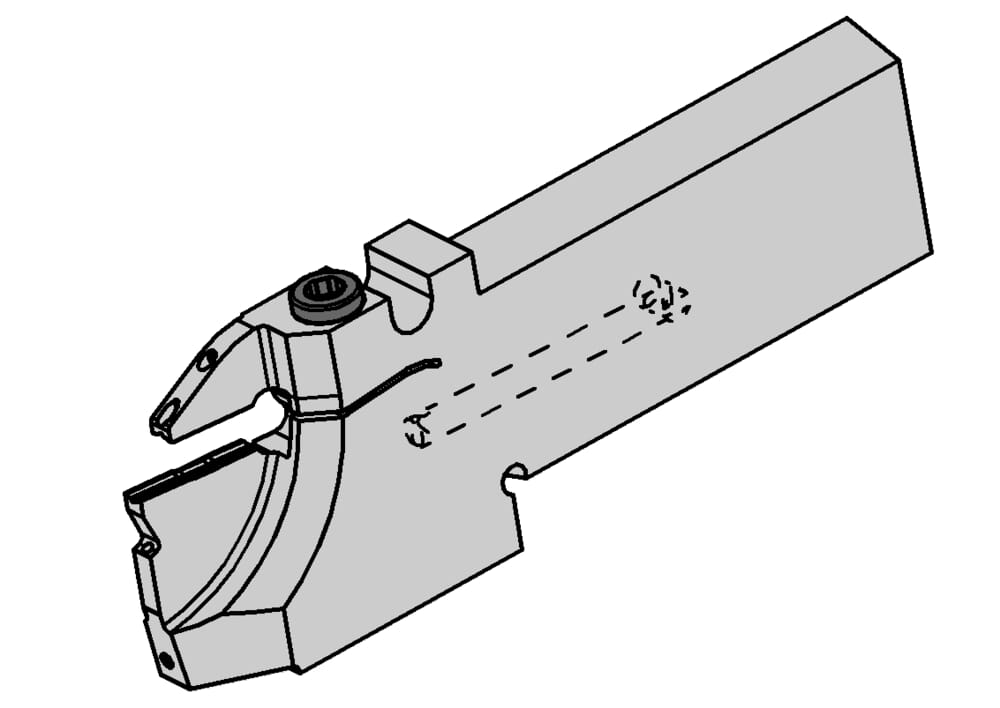

HORN Toolholder RH224.2608.2.18.4.73.IK for Turning
Please note:Technical instructions

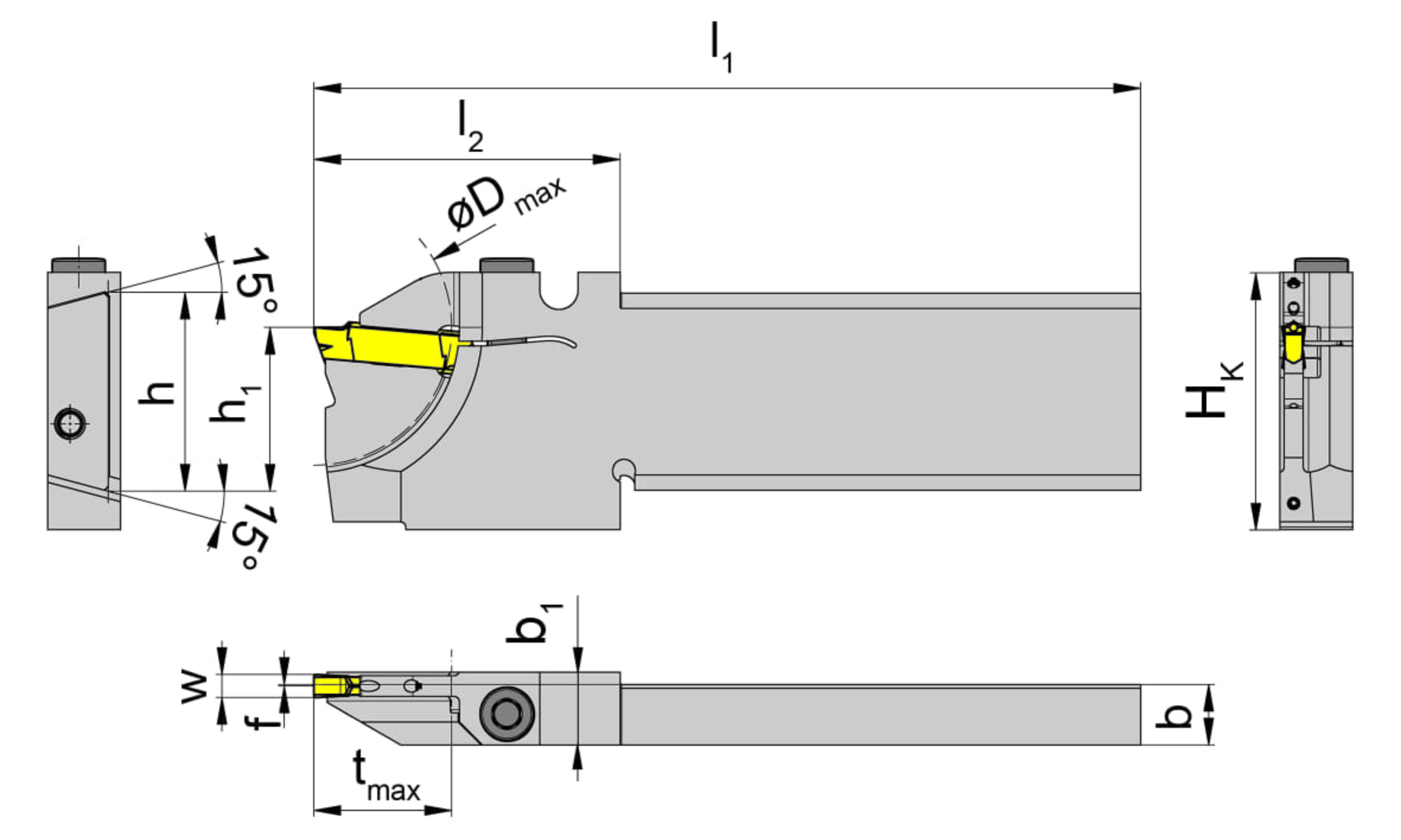

Peak height (h1)
21.4
mm
Width of groove (w)
3
mm
eclass-shortcut
21-18-10-90
Plating seat size (Größe)
3
ISO_CCTMS
PMU01C0260$$$$
DIN_CCTMS
PMU02600115
Katalog_CCTWS
224038
DIN_CCTWS
HORN-224030058N
ISO_CCTWS
HORN224030058N$$$$$
clamping-range-max-met
3
mm
clamping-range-min-met
3
mm
Maximum workpiece diameter (Dmax)
36
mm
Maximum insertion depth (tmax)
18
mm
Head length (l2)
65
mm
Head height (HK)
33.6
mm
Head width (b1)
9.5
mm
Shank height (h)
26
mm
Total length (including cutting insert) (l1)
124
mm
Adjustment dimension (f)
0.2
mm
Width / thickness sword (b)
7.9
mm
| Downloads | |
|---|---|
| RH2242608218473IK_20211124_164420818.DXF | Download |
| RH2242608218473IK.STP | Download |
| Download all files | |
