RH224.2608.81R
Toolholders
Part number RH224260881R

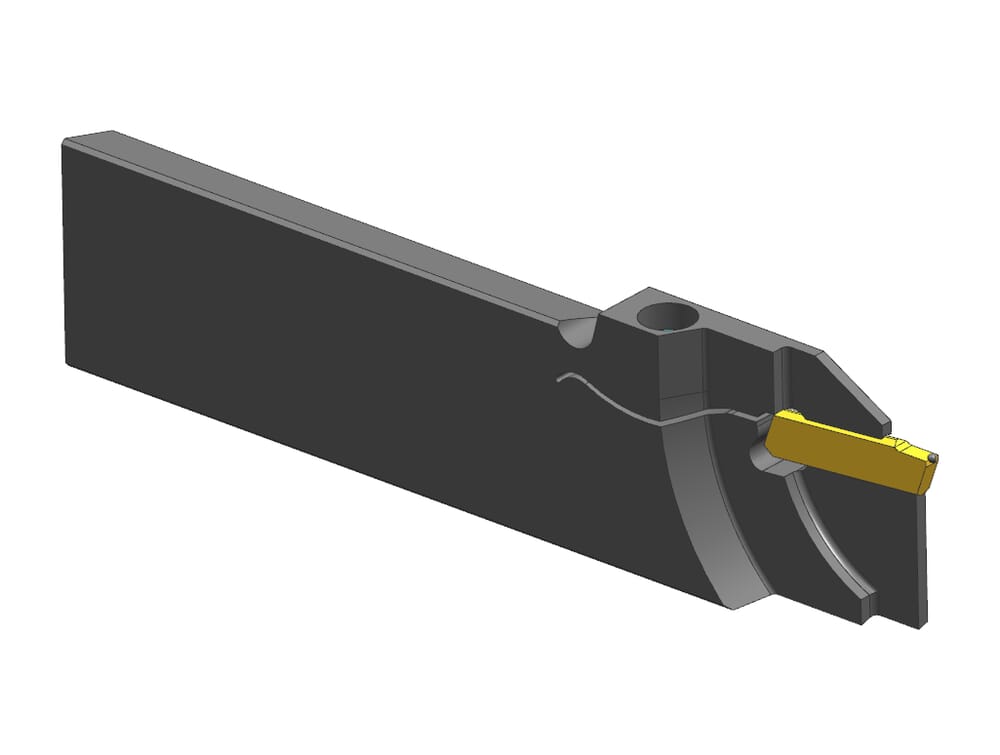

HORN Toolholders RH224.2608.81R for Turning
Please note:Technical instructions
Clamping range minimum (Spannbereich)
2
mm
Width of groove (w)
2
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
1
ISO_CCTMS
PMU01C0260$$$$
DIN_CCTMS
PMU02600105
Katalog_CCTWS
224018
DIN_CCTWS
HORN-224010058N
ISO_CCTWS
HORN224010058N$$$$$
Clamping range maximum (Spannbereich)
2.4
mm
Peak height (h1)
21.4
mm
Maximum workpiece diameter (Dmax)
36
mm
Maximum insertion depth (tmax)
18
mm
Head height (h)
26
mm
Total length (including cutting insert) (l1)
110
mm
Adjustment dimension (f)
7.15
mm
Width / thickness sword (b)
7.9
mm
