RH224.2608.83
Toolholders
Part number RH224260883

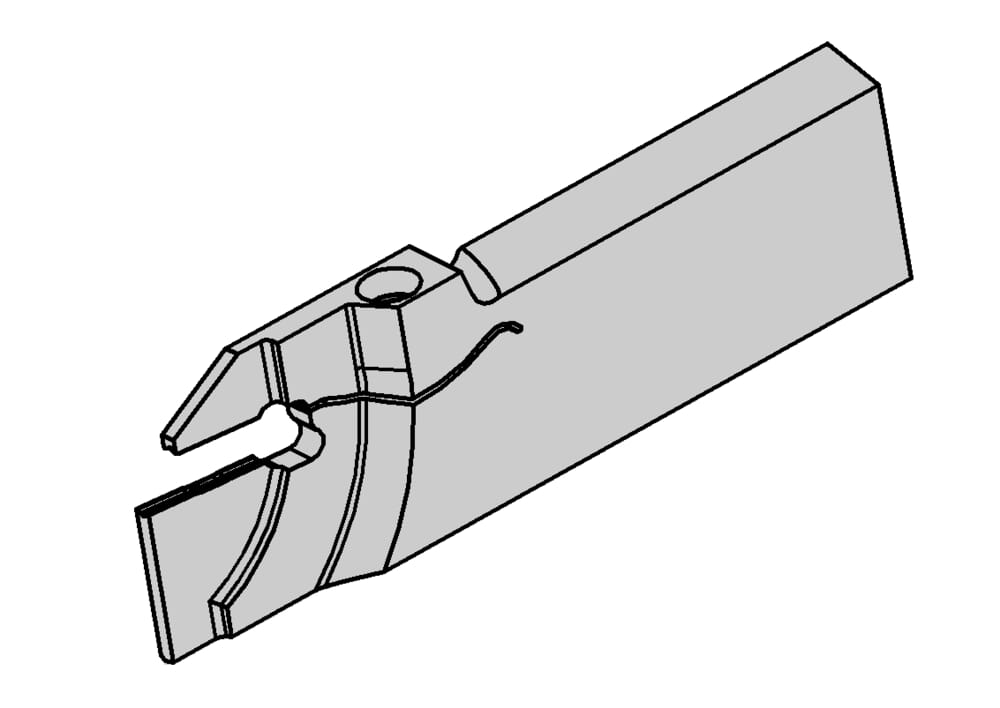

HORN Toolholders RH224.2608.83 for Turning
Please note:Technical instructions
clamping-range-min-met
2.8
mm

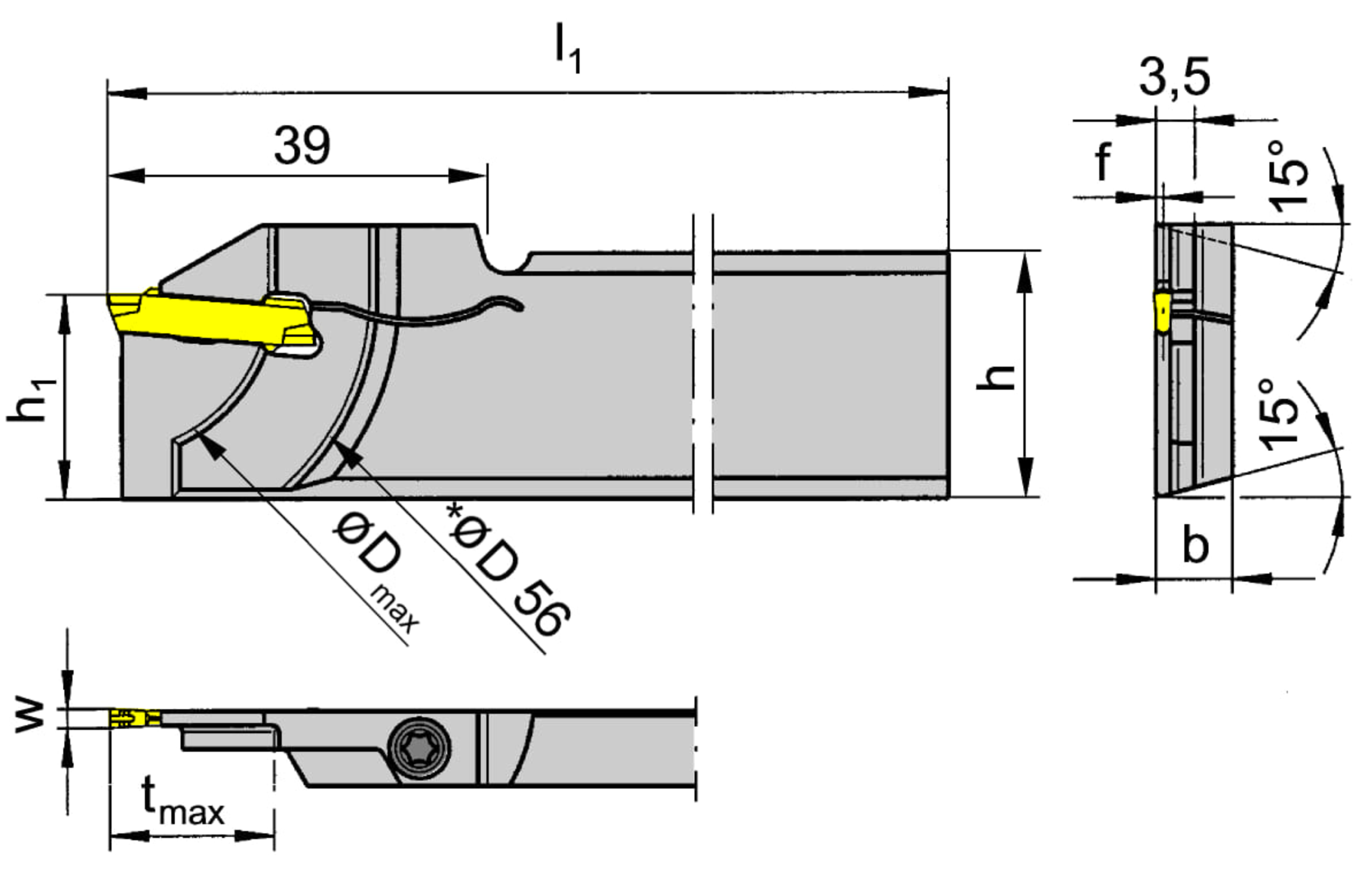

Width of groove (w)
3
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
3
ISO_CCTMS
PMU01C0260$$$$
DIN_CCTMS
PMU02600105
Katalog_CCTWS
224038
DIN_CCTWS
HORN-224030058N
ISO_CCTWS
HORN224030058N$$$$$
clamping-range-max-met
3.7
mm
Peak height (h1)
21.4
mm
Maximum workpiece diameter (Dmax)
36
mm
Maximum insertion depth (tmax)
18
mm
Head height (h)
26
mm
Total length (including cutting insert) (l1)
110
mm
Adjustment dimension (f)
1.2
mm
Width / thickness sword (b)
7.9
mm
| Downloads | |
|---|---|
| RH224260883.DXF | Download |
| RH224_2608_83_20171121_230434776.STP | Download |
| Download all files | |
