RH224.2608.83R
Toolholders
Part number RH224260883R

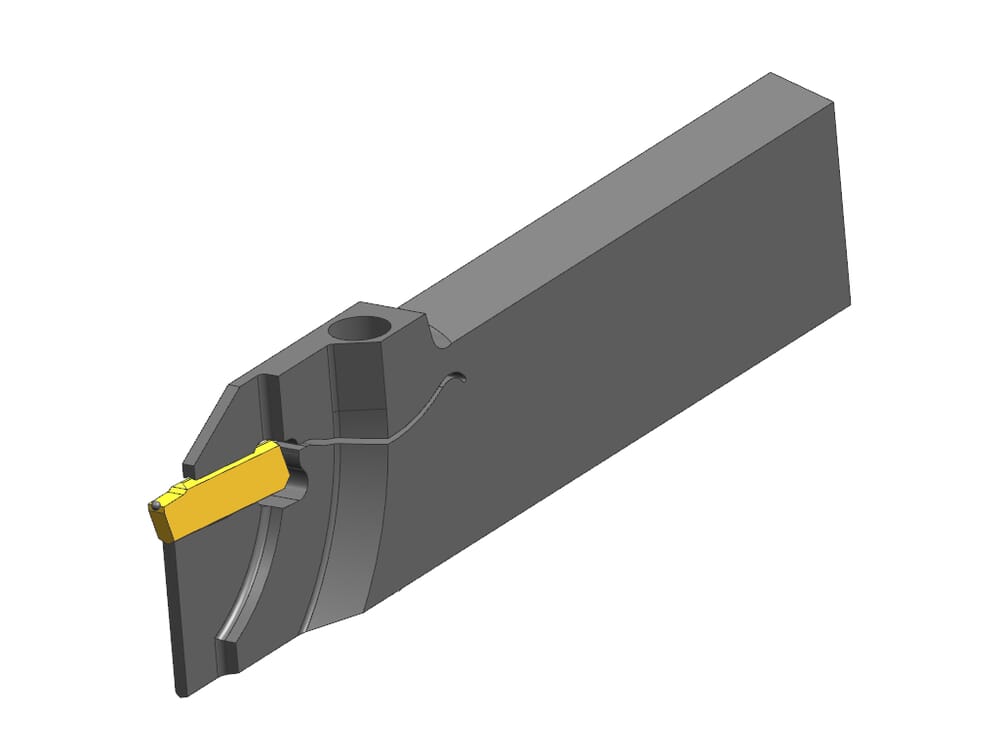

HORN Toolholders RH224.2608.83R for Turning
Please note:Technical instructions
Clamping range minimum (Spannbereich)
2.8
mm
Width of groove (w)
3
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
3
ISO_CCTMS
PMU01C0260$$$$
DIN_CCTMS
PMU02600105
Katalog_CCTWS
224038
DIN_CCTWS
HORN-224030058N
ISO_CCTWS
HORN224030058N$$$$$
Clamping range maximum (Spannbereich)
3.7
mm
Peak height (h1)
21.4
mm
Maximum workpiece diameter (Dmax)
36
mm
Maximum insertion depth (tmax)
18
mm
Head height (h)
26
mm
Total length (including cutting insert) (l1)
110
mm
Adjustment dimension (f)
6.75
mm
Width / thickness sword (b)
7.9
mm
| Downloads | |
|---|---|
| RH224260883R.DXF | Download |
| RH224_2608_83R_20171121_180121823.STP | Download |
| Download all files | |
