RS100.0530.EN2 AS62
Insert
Part number RS1000530EN2AS62

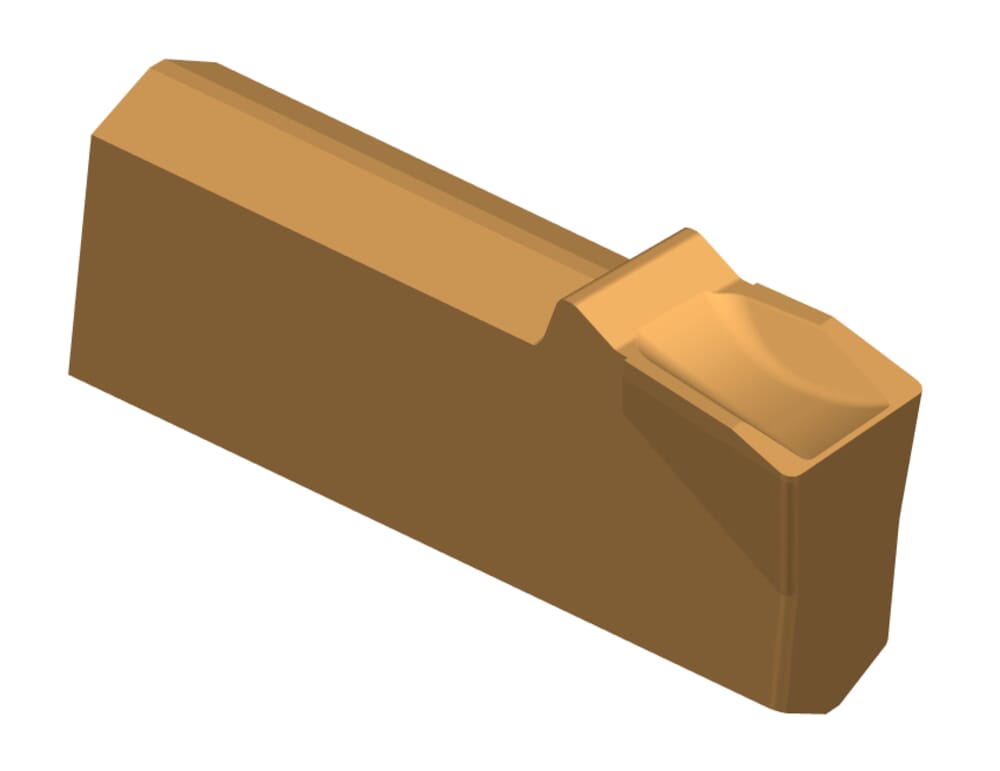

HORN Insert RS100.0530.EN2 AS62 for Turning
Please note:Technical instructions
Parting-off chamfer (α)
5
°
eclass-shortcut
21-18-20-11
ISO_SSC
HORN100030058N$$$$$
DIN_SSC
HORN-100030058N
Katalog_SSC
100038
Plating seat size (Größe)
3
Width of groove (w)
3
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| RS1000530EN2_20210629_024613898.DXF | Download |
| RS1000530EN2_20210630_182621099.STP | Download |
| Download all files | |
