RS108.0100.D1 EG55

Insert

Part number RS1080100D1EG55

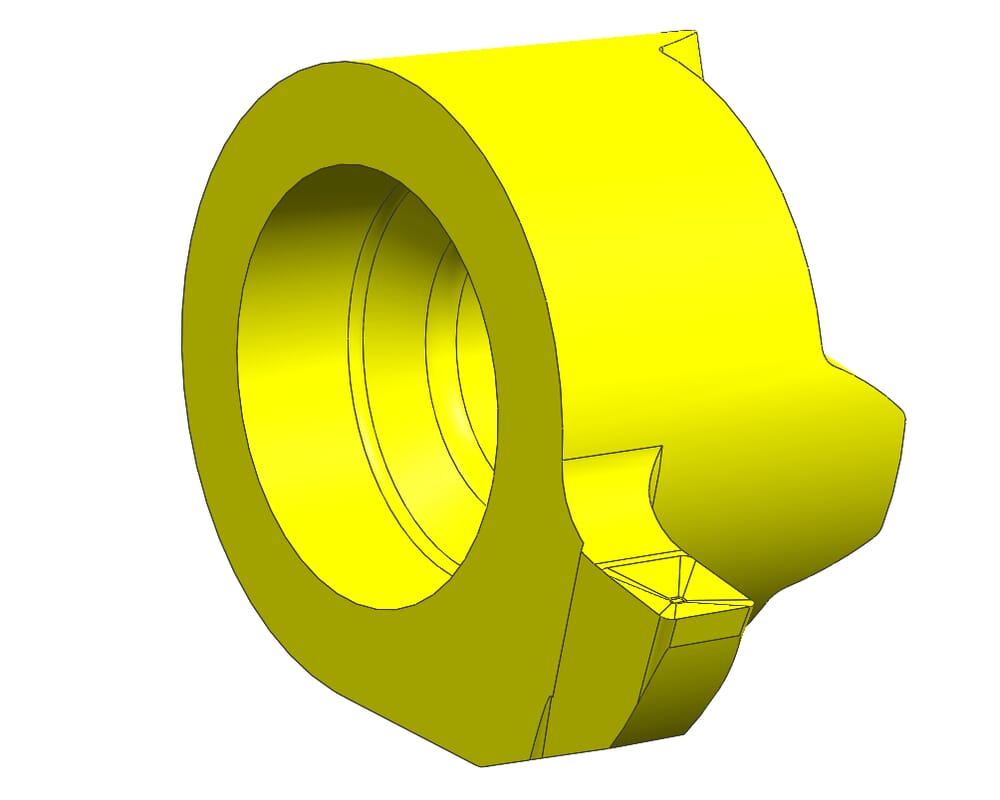

HORN Insert RS108.0100.D1 EG55 for Turning

ISO_SSC

HORN108060$84R$$$$$

Smallest bore diameter (Dmin)

8 mm

Cutting insert height, Cutting insert thickness (s)

3.2 mm

Corner radius (r)

0.1 mm

Tooth diameter, head diameter (d)

6 mm

Setting range radial (f)

4.8 mm

Width of groove (w)

1 mm

Katalog_SSC

108060R

DIN_SSC

HORN-10806084R

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax)

1 mm

Head size (a)

7.8 mm
