RS10P.0200.2.D2 EG55

Insert

Part number RS10P02002D2EG55

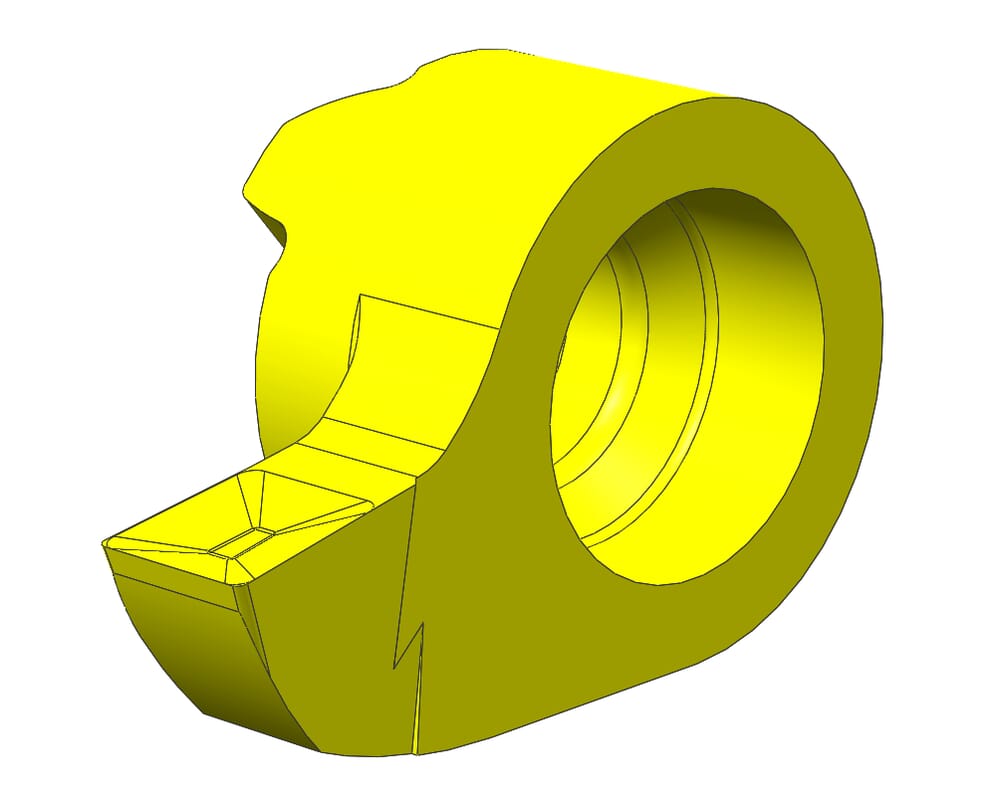

HORN Insert RS10P.0200.2.D2 EG55 for Turning

ISO_SSC

HORN10P060$84R$$$$$

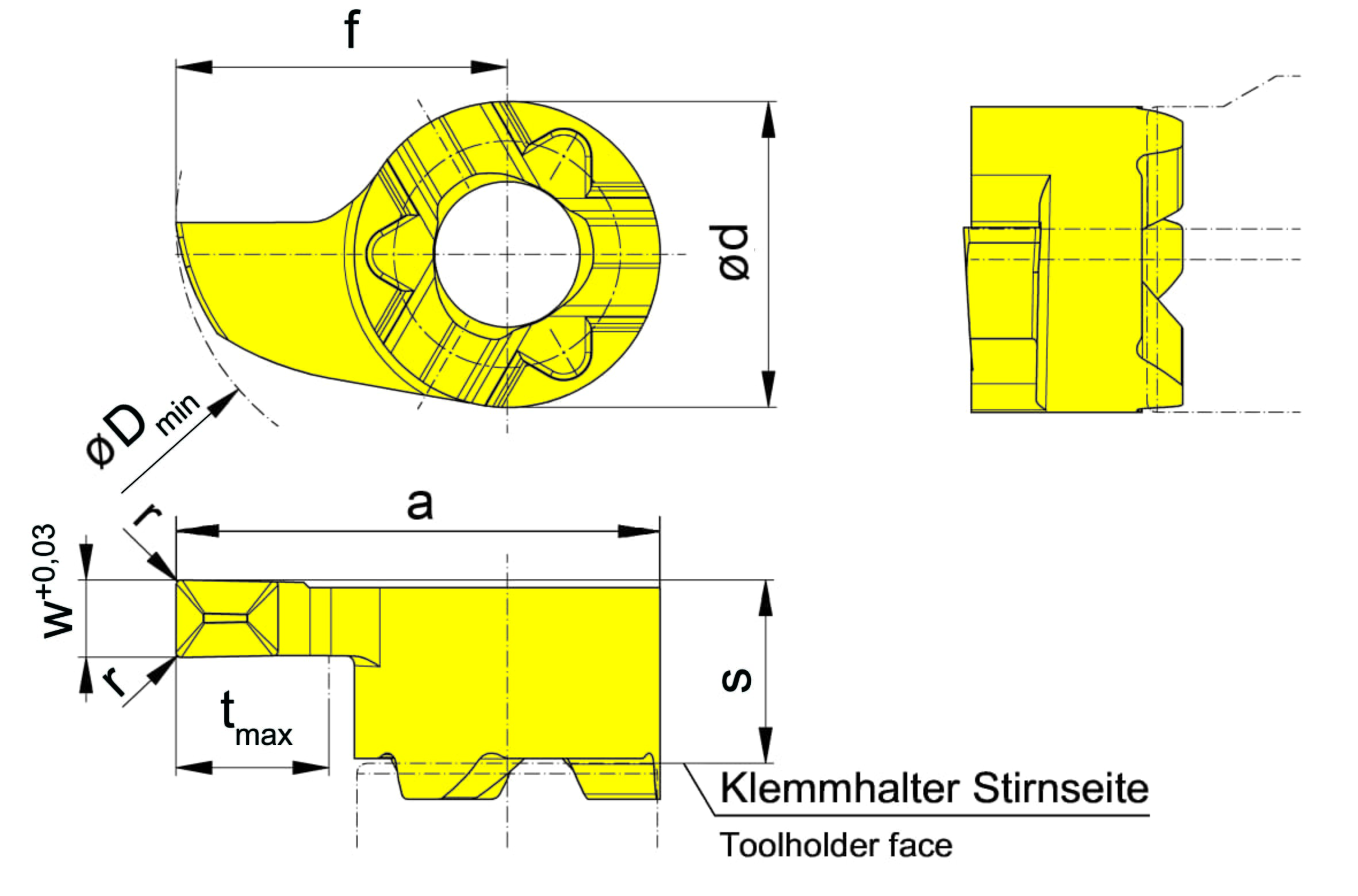

Smallest bore diameter (Dmin)

10 mm

Cutting insert height, Cutting insert thickness (s)

3.6 mm

Corner radius (r)

0.2 mm

Tooth diameter, head diameter (d)

6 mm

Setting range radial (f)

6.5 mm

Width of groove (w)

2 mm

Katalog_SSC

10P060R

DIN_SSC

HORN-10P06084R

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax)

3 mm

Head size (a)

9.5 mm
