RS10P.1854.R4 EG55
Insert
Part number RS10P1854R4EG55

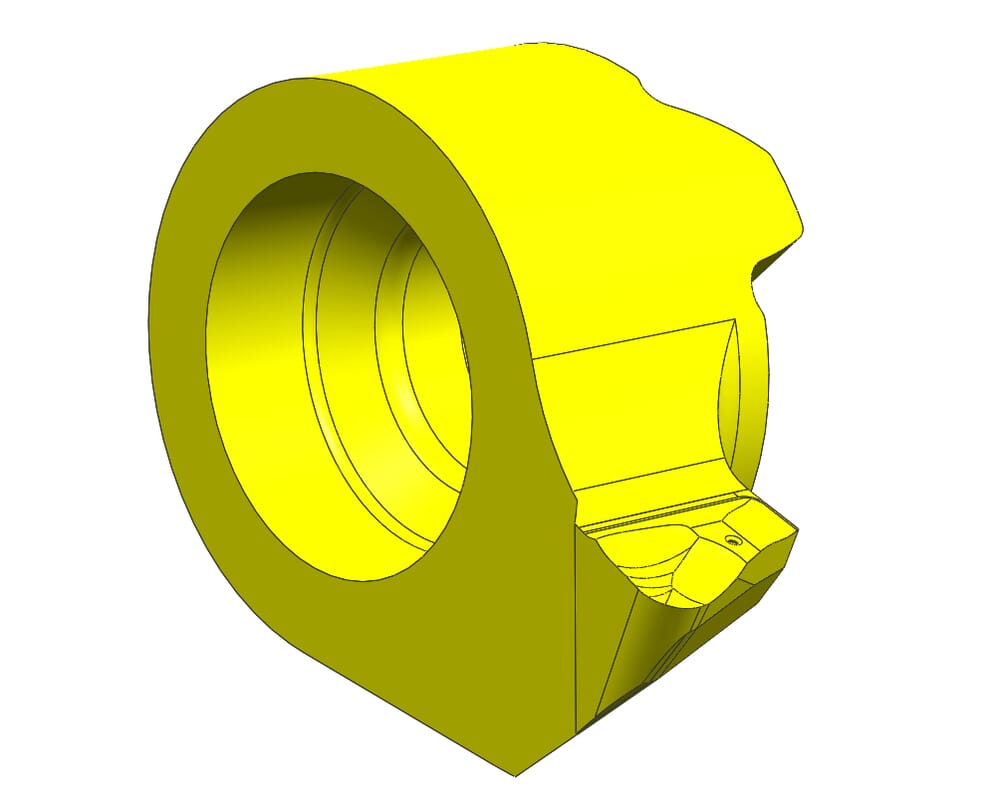

HORN Insert RS10P.1854.R4 EG55 for Turning
Please note:Technical instructions
Top radius (r)
0.4
mm
Head size (a)
8.4
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN10P060$84R$$$$$
DIN_SSC
HORN-10P06084R
Katalog_SSC
10P060R
Setting range radial (f)
5.4
mm
Tooth diameter, head diameter (d)
6
mm
Cutting insert height, Cutting insert thickness (s)
3.6
mm
Smallest bore diameter (Dmin)
8.8
mm
| Downloads | |
|---|---|
| RS10P1854R4_20210629_024116783.DXF | Download |
| RS10P1854R4_20210630_131711300.STP | Download |
| Download all files | |
