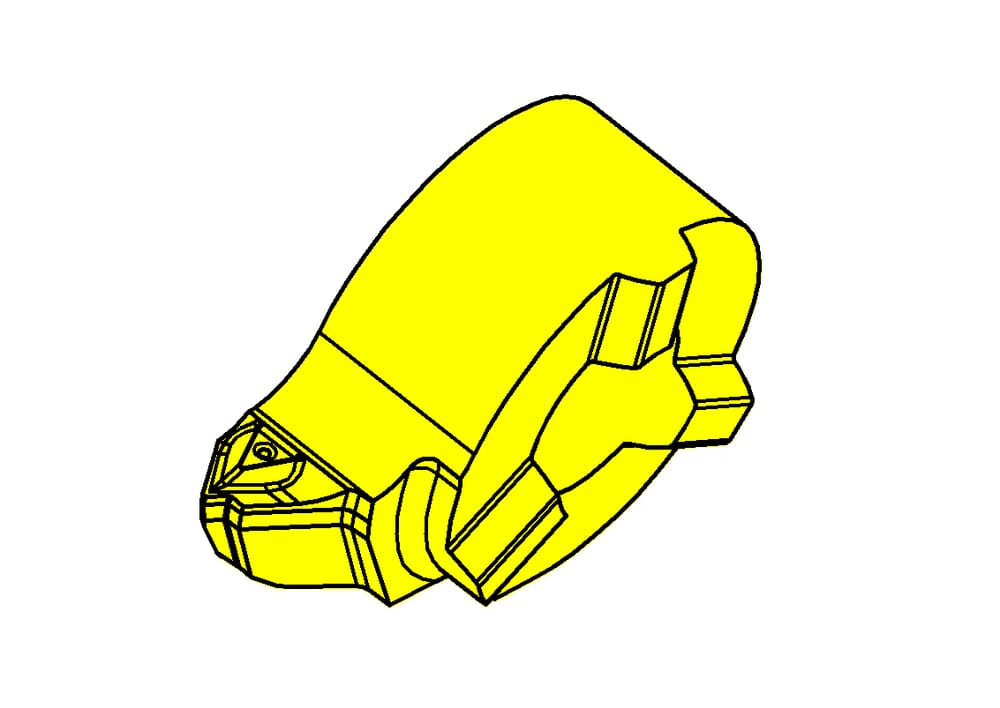

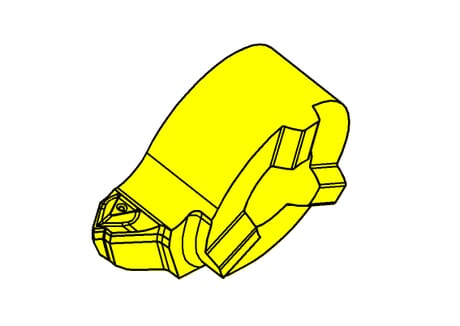

RS114.0510.GM2 EG55

Insert

Part number RS1140510GM2EG55

HORN Insert RS114.0510.GM2 EG55 for Gewinden

DIN_SSC

HORN-11409084R

Pitch (P)

1 mm

Smallest bore diameter (Dmin)

14 mm

Cutting insert height, Cutting insert thickness (s)

5.2 mm

Setting length (E)

4.1 mm

Tooth diameter, head diameter (d)

9 mm

Cutting insert width (a)

13.5 mm

Setting range radial (f)

9 mm

Katalog_SSC

114090R

ISO_SSC

HORN114090$84R$$$$$

eclass-shortcut

21-18-20-11
