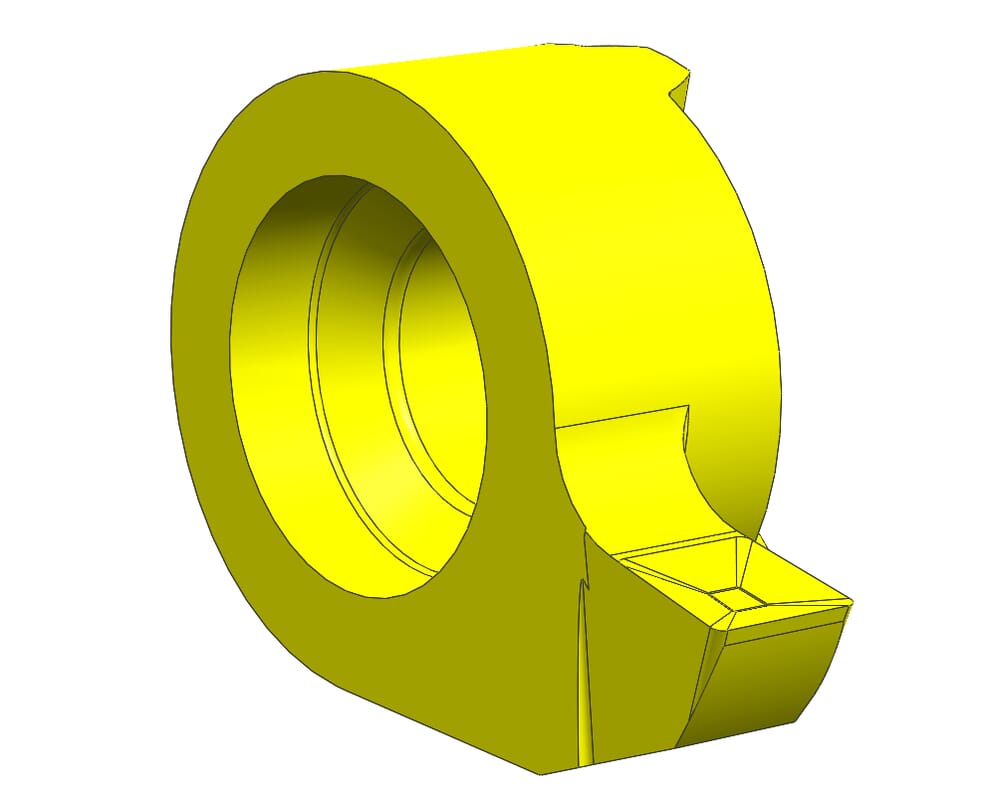

RS116.0300.D2 TH35
Insert
Part number RS1160300D2TH35
HORN Insert RS116.0300.D2 TH35 for Turning
Please note:Technical instructions
ISO_SSC
HORN116110$84R$$$$$

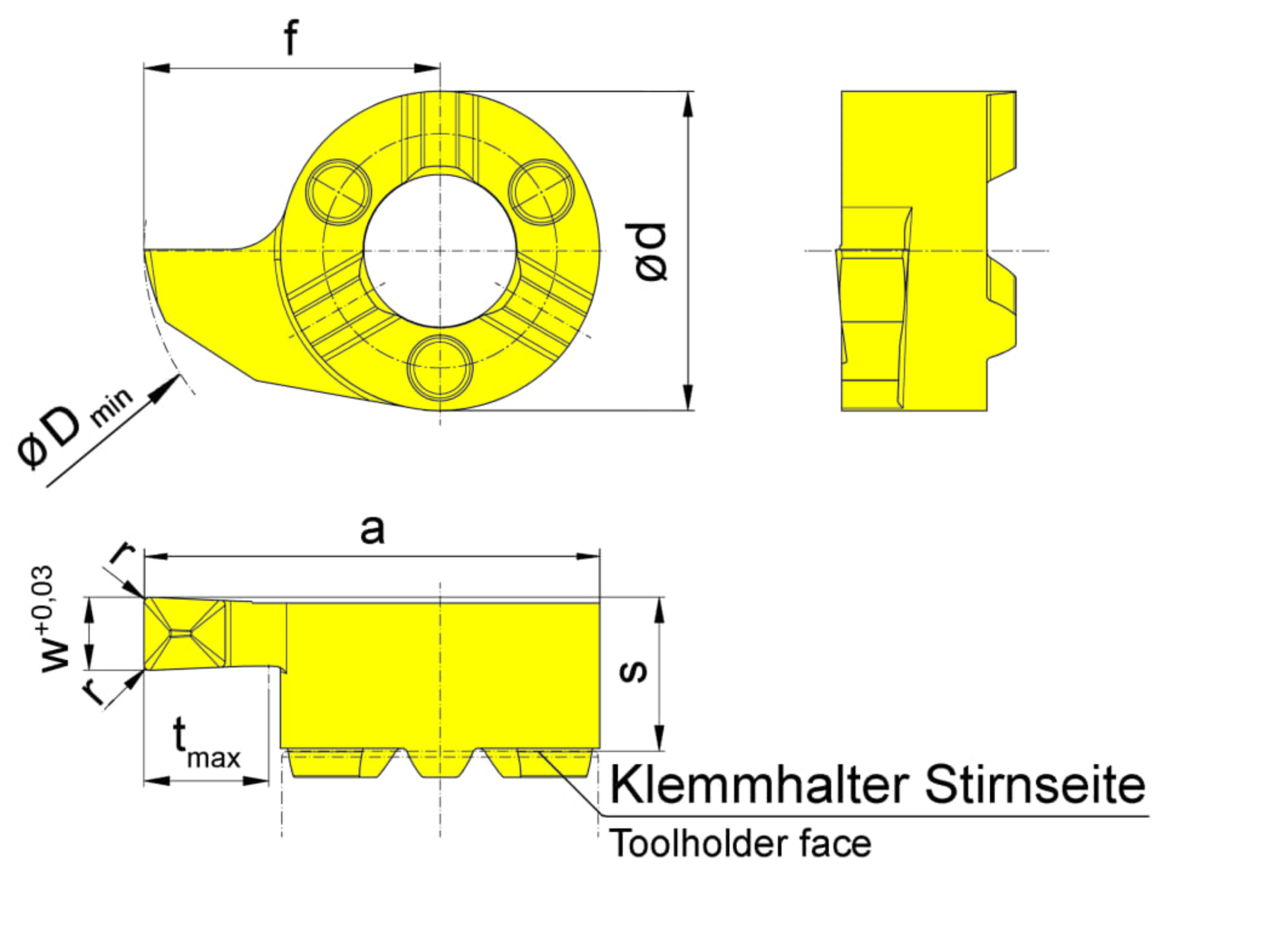

Smallest bore diameter (Dmin)
16
mm
Cutting insert height, Cutting insert thickness (s)
5.3
mm
Corner radius (r)
0.2
mm
Tooth diameter, head diameter (d)
11
mm
Setting range radial (f)
10.2
mm
Width of groove (w)
3
mm
Katalog_SSC
116110R
DIN_SSC
HORN-11611084R
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
4.3
mm
Head size (a)
15.7
mm
| Downloads | |
|---|---|
| RS1160300D2_20210629_025443722.DXF | Download |
| RS1160300D2_20230116_110507455.STP | Download |
| Download all files | |
