S100.0250.FY2 TI25
Insert
Part number S1000250FY2TI25

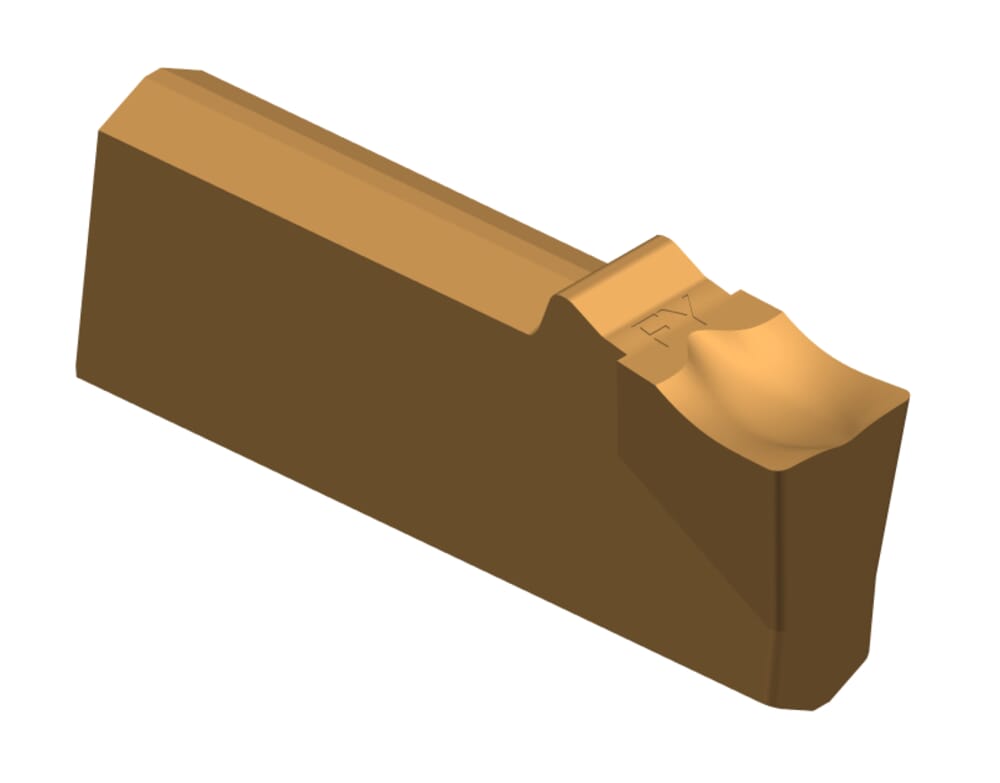

HORN Insert S100.0250.FY2 TI25 for Turning
Please note:Technical instructions
Parting-off chamfer (α)
0
°
eclass-shortcut
21-18-20-11
ISO_SSC
HORN100020058N$$$$$
DIN_SSC
HORN-100020058N
Katalog_SSC
100028
Plating seat size (Größe)
2
Width of groove (w)
2.5
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| S1000250FY2_20210629_052230355.DXF | Download |
| S1000250FY2_20230116_210929000.STP | Download |
| Download all files | |
