S100.0300.FY2 AS45
Insert
Part number S1000300FY2AS45

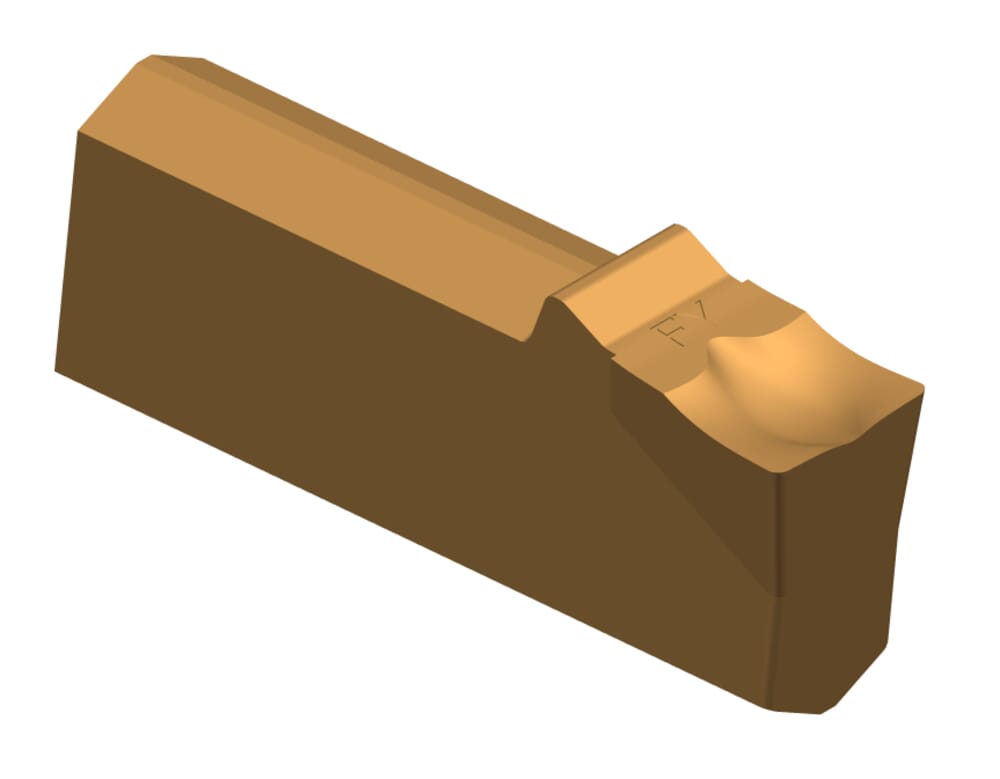

HORN Insert S100.0300.FY2 AS45 for Turning
Please note:Technical instructions
Parting-off chamfer (α)
0
°
eclass-shortcut
21-18-20-11
ISO_SSC
HORN100030058N$$$$$
DIN_SSC
HORN-100030058N
Katalog_SSC
100038
Plating seat size (Größe)
3
Width of groove (w)
3
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| S1000300FY2_20210629_052352013.DXF | Download |
| S100_0300_FY2_20171121_191423963.STP | Download |
| Download all files | |
