S100.0500.E3 TC93
Inserts
Part number S1000500E3TC93

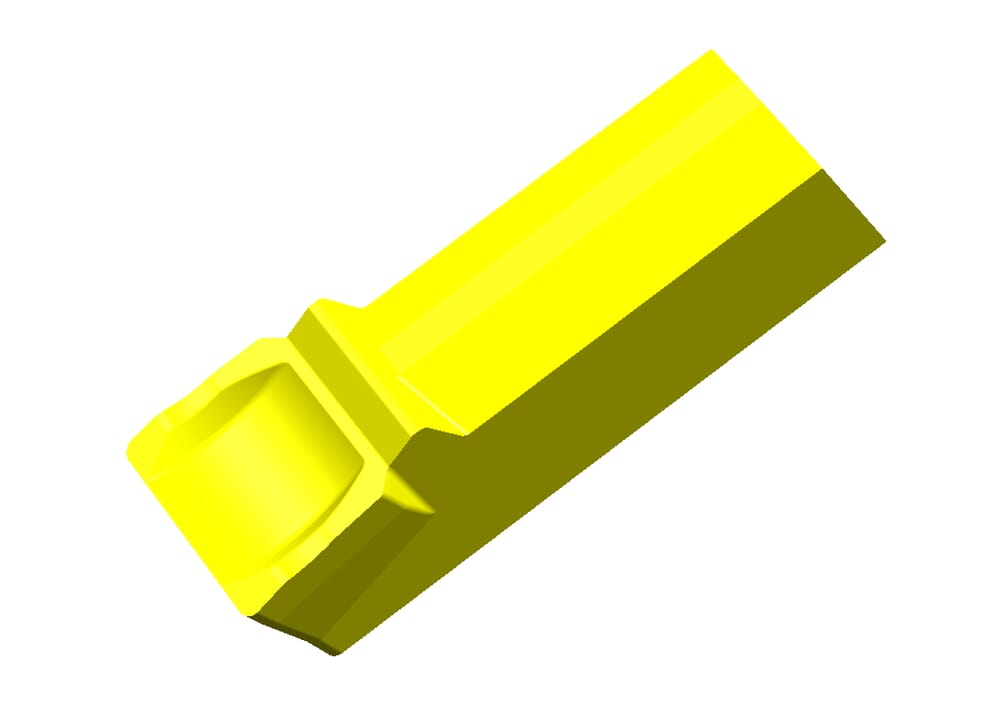

HORN Inserts S100.0500.E3 TC93 for Turning
Please note:Technical instructions
Parting-off chamfer (α)
0
°
eclass-shortcut
21-18-20-11
ISO_SSC
HORN100050058N$$$$$
DIN_SSC
HORN-100050058N
Katalog_SSC
100058
Plating seat size (Größe)
5
Width of groove (w)
5
mm
Corner radius (r)
0.3
mm
| Downloads | |
|---|---|
| S1000500E3_20210625_161625868.DXF | Download |
| S1000500E3_20230116_084529633.STP | Download |
| Download all files | |
