S100.0800.EN8 AS6G
Insert
Part number S1000800EN8AS6G

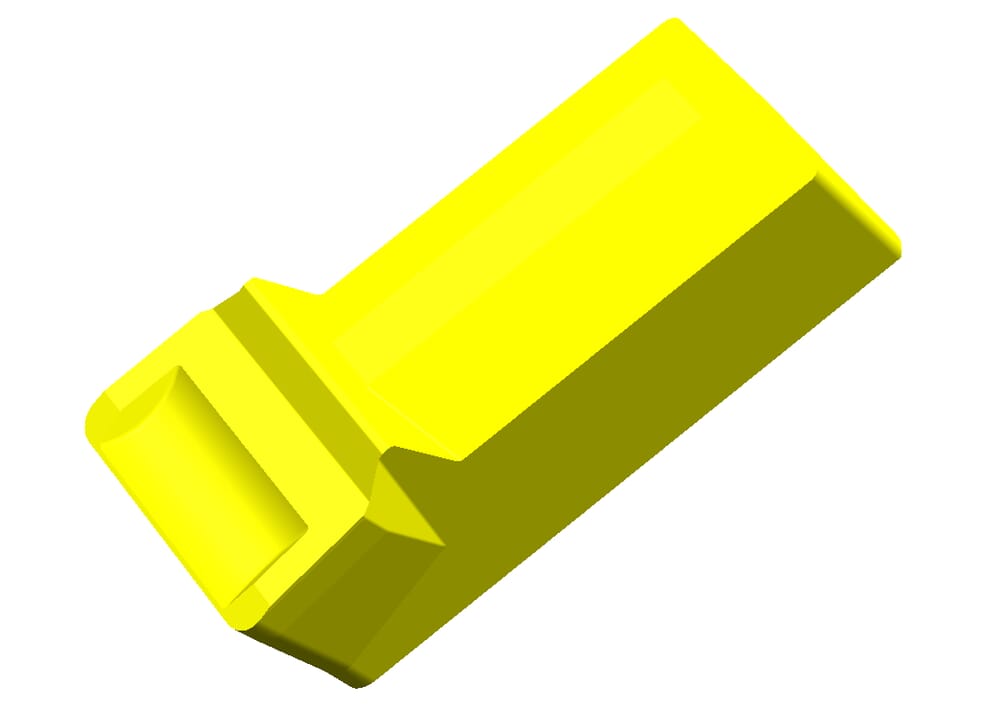

HORN Insert S100.0800.EN8 AS6G for Turning
Please note:Technical instructions
Parting-off chamfer (α)
0
°
eclass-shortcut
21-18-20-11
ISO_SSC
HORN100080058N$$$$$
DIN_SSC
HORN-100080058N
Katalog_SSC
100088
Plating seat size (Größe)
8
Width of groove (w)
8
mm
Corner radius (r)
0.8
mm
| Downloads | |
|---|---|
| S1000800EN8.DXF | Download |
| S1000800EN8_20230116_091747724.STP | Download |
| Download all files | |
