S100.1600.EN8 AS6G
Insert
Part number S1001600EN8AS6G

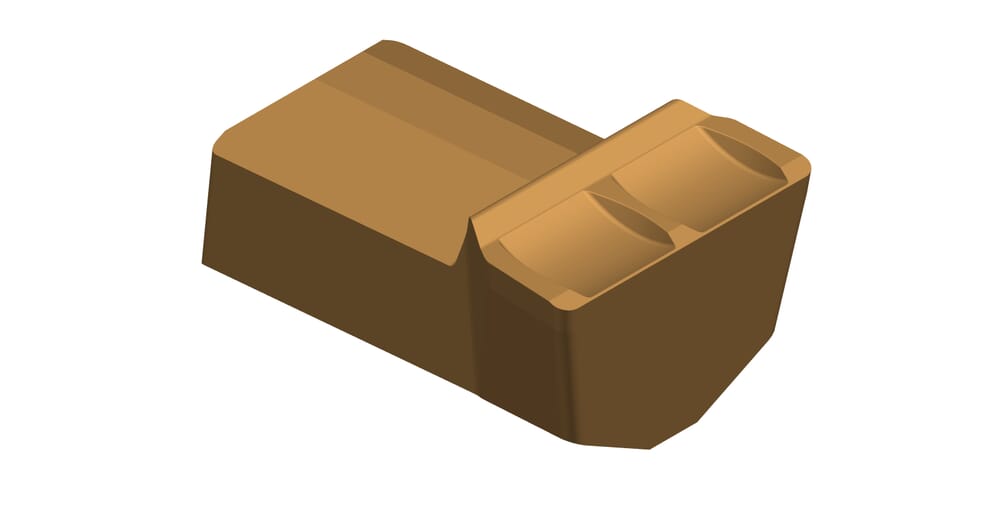

HORN Insert S100.1600.EN8 AS6G for Turning
Please note:Technical instructions
Parting-off chamfer (α)
0
°
eclass-shortcut
21-18-20-11
ISO_SSC
HORN100160058N$$$$$
DIN_SSC
HORN-100160058N
Katalog_SSC
100168
Plating seat size (Größe)
16
Width of groove (w)
16
mm
Corner radius (r)
0.8
mm
| Downloads | |
|---|---|
| S1001600EN8_20210629_052852566.DXF | Download |
| S1001600EN8_20230116_210835376.STP | Download |
| Download all files | |
