S117.SQ.1719.12.A1 AN45
insert
Part number S117SQ171912A1AN45

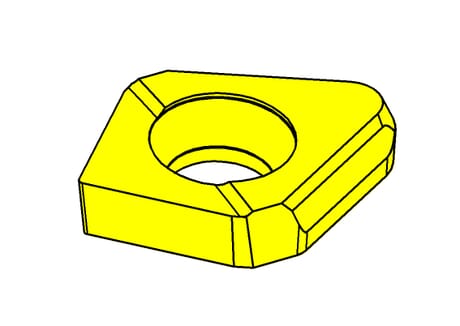

HORN insert S117.SQ.1719.12.A1 AN45 for Broaching
Please note:Technical instructions
Form (Form)
Q
Cutting width minimum (b1)
9.08
mm
Smallest bore diameter (Dmin)
17.5
mm
Total length (l)
16.7
mm
Cutting width maximum (b1)
10.33
mm
Katalog_SSC
117Q205
DIN_SSC
HORN-117Q21050N
ISO_SSC
HORN117Q21050N$$$$$
Key range maximum (SW)
19
mm
Key range minimum (SW)
17
mm
Toolholder (Klemmhalter)
SH117.1732.SQ.1.12.IK
Top radius (r)
0.2
mm
| Downloads | |
|---|---|
| S117SQ171912A1.DXF | Download |
| S117SQ171912A1_20230116_121101252.STP | Download |
