S223.0030.C0 TI25
Inserts
Part number S2230030C0TI25

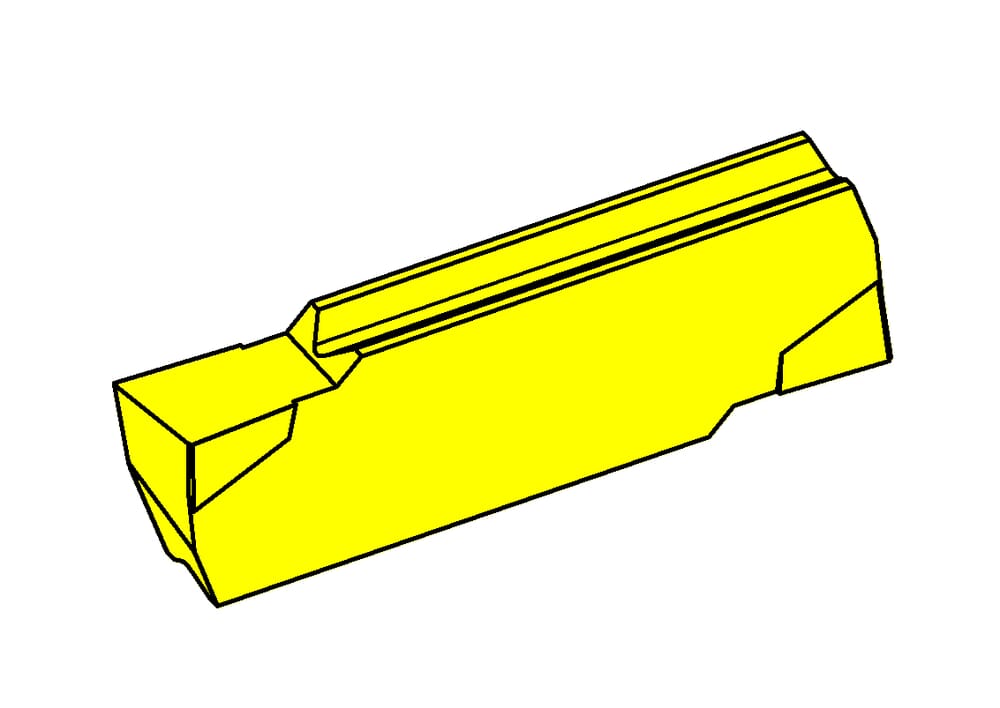

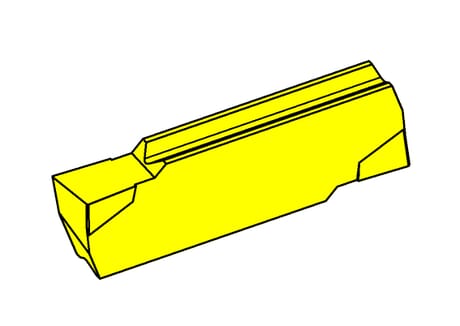

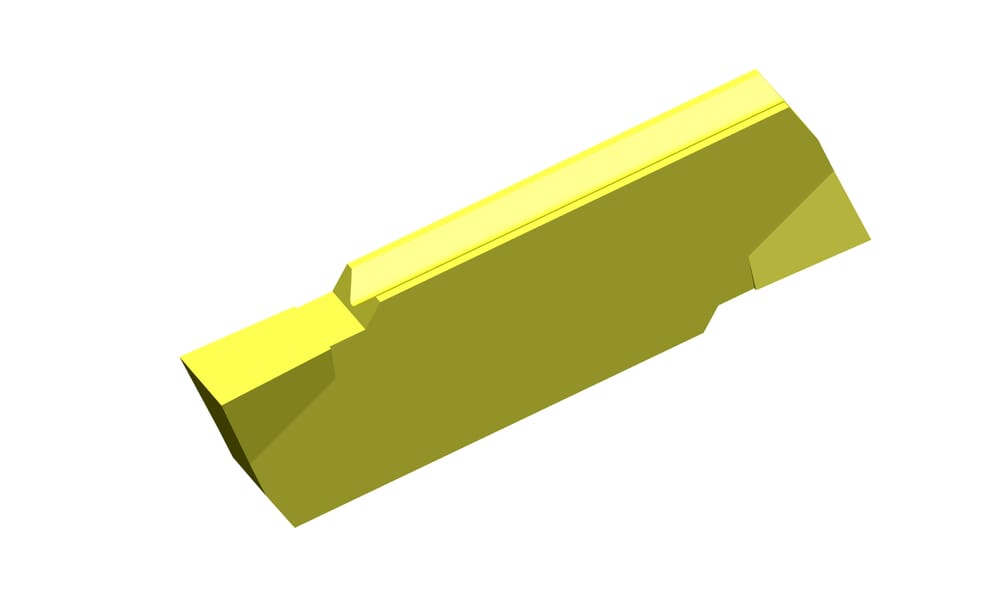

HORN Inserts S223.0030.C0 TI25 for Turning
Please note:Technical instructions

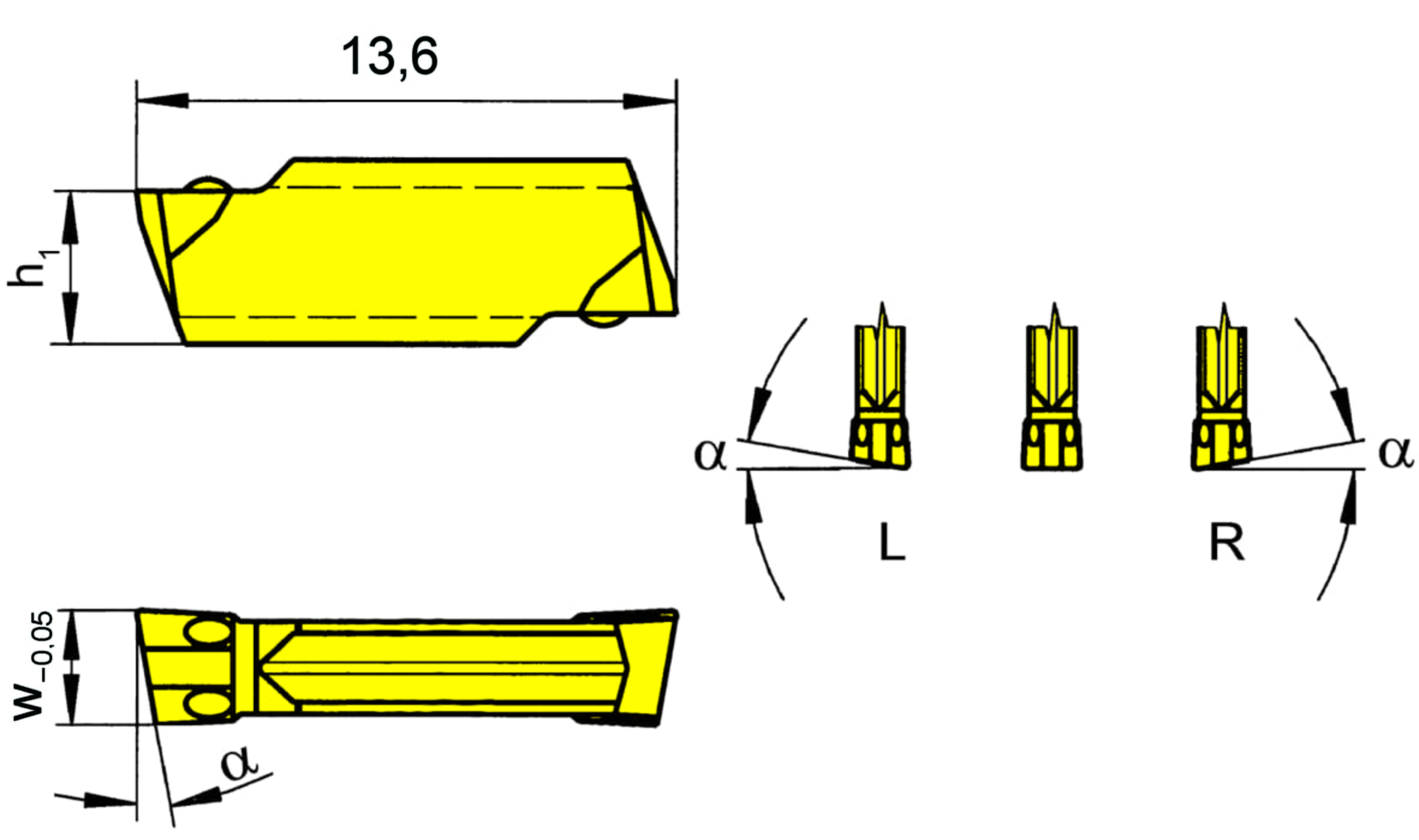

Parting-off chamfer (α)
0
°
Peak height (h1)
3.95
mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN223030008N$$$$$
DIN_SSC
HORN-223030008N
Katalog_SSC
22303
Plating seat size (Größe)
3
Width of groove (w)
3
mm
| Downloads | |
|---|---|
| S223_0030_C0.DXF | Download |
| S223_0030_C0_20171121_225559215.STP | Download |
| Download all files | |
