S223.0030.C1 TF45
Inserts
Part number S2230030C1TF45

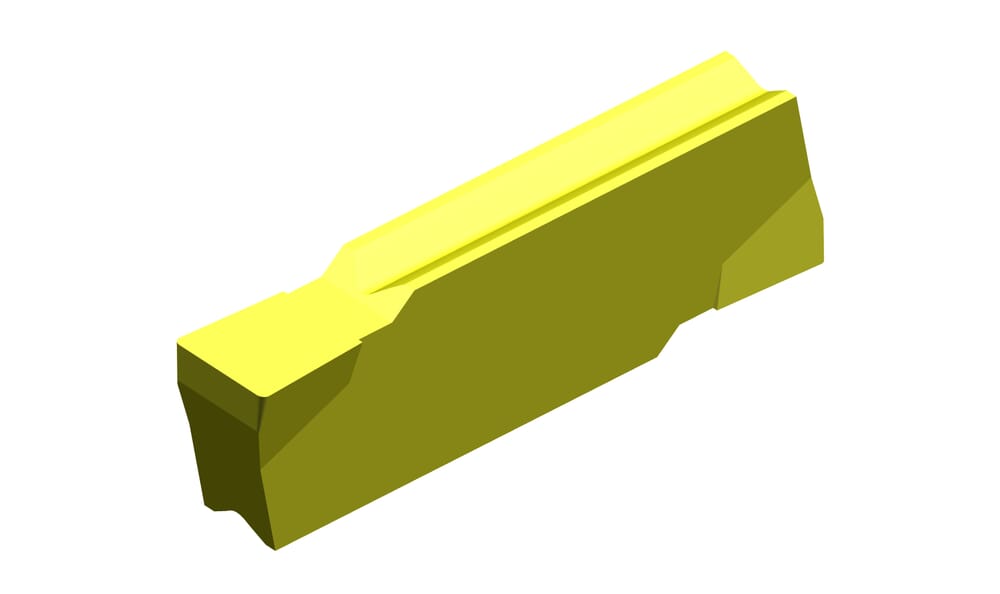

HORN Inserts S223.0030.C1 TF45 for Turning
Please note:Technical instructions
Parting-off chamfer (α)
0
°
Peak height (h1)
3.95
mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN223030008N$$$$$
DIN_SSC
HORN-223030008N
Katalog_SSC
22303
Plating seat size (Größe)
3
Width of groove (w)
3
mm
Corner radius (r)
0.15
mm
| Downloads | |
|---|---|
| S223_0030_C1.DXF | Download |
| S223_0030_C1_20171121_221301668.STP | Download |
| Download all files | |
