S223.0215.32 TN35
Inserts
Part number S223021532TN35

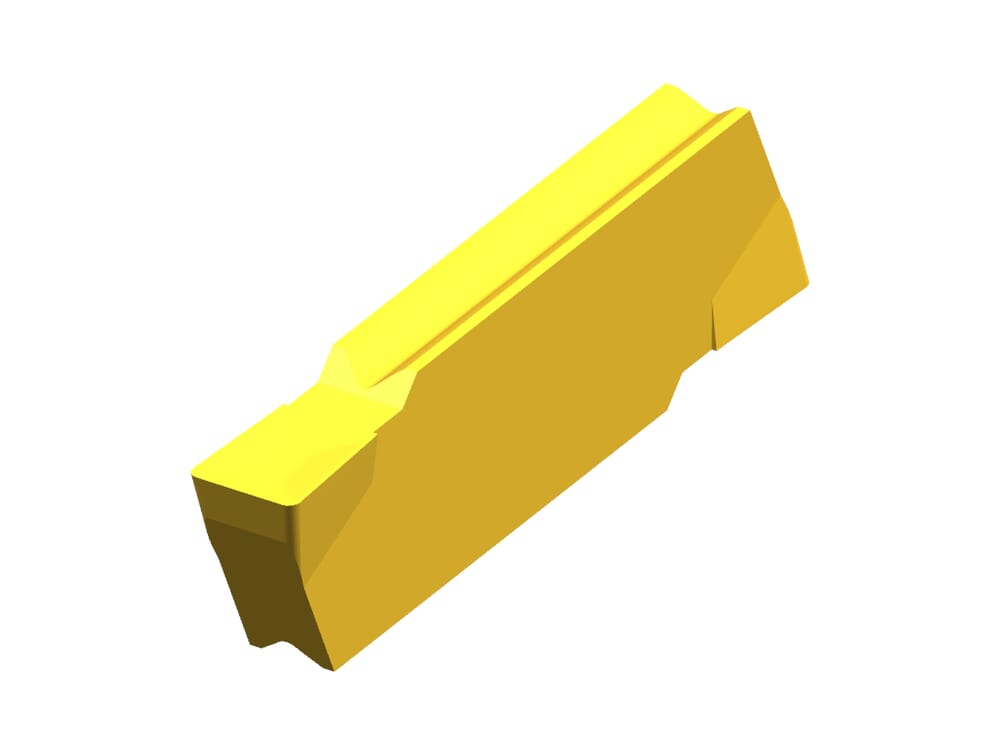

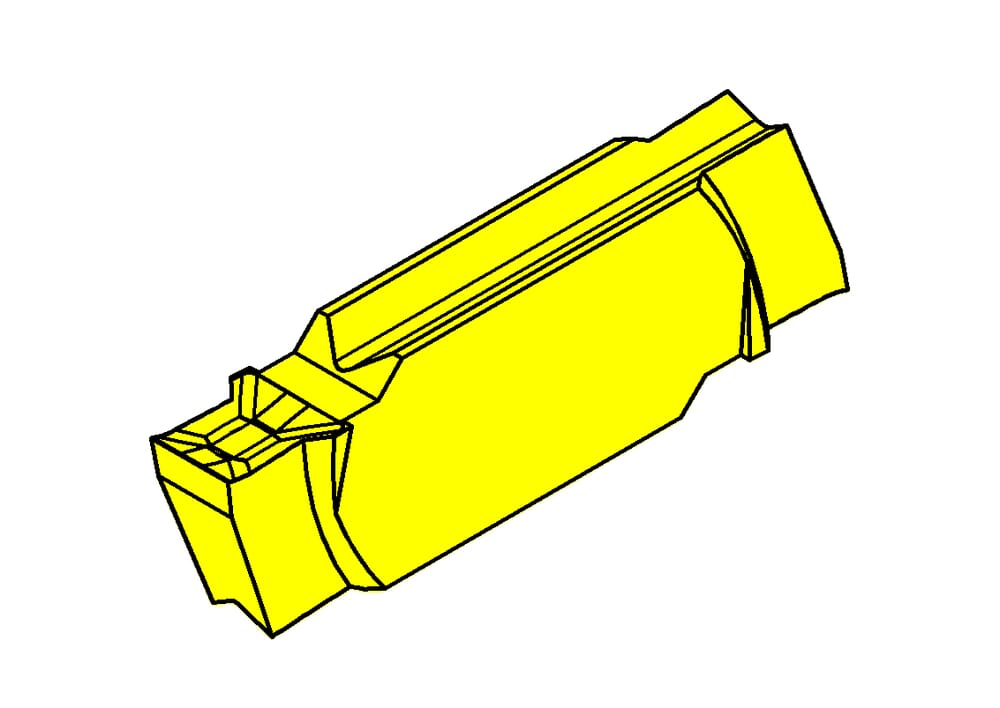

HORN Inserts S223.0215.32 TN35 for Turning
Please note:Technical instructions

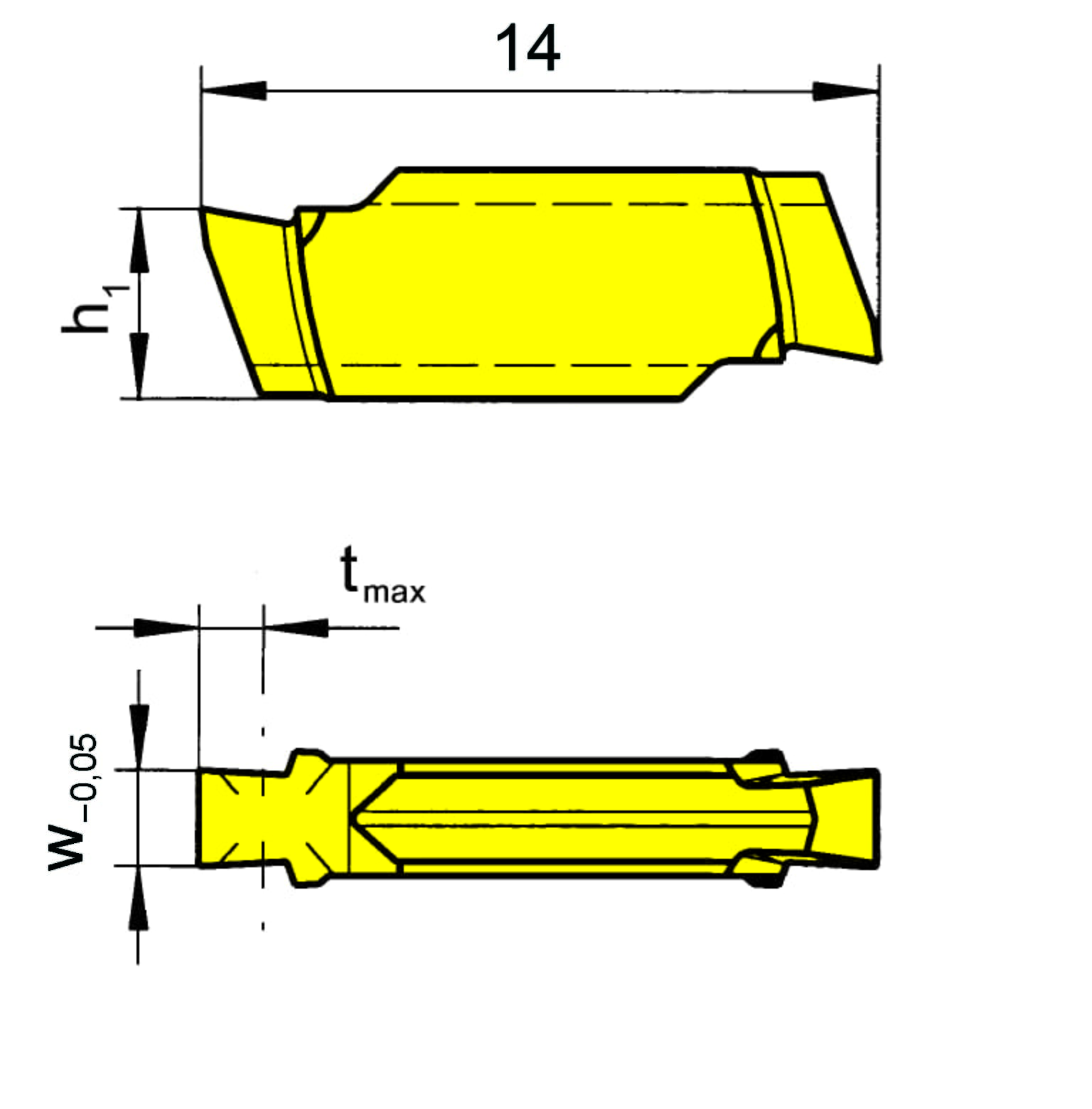

Maximum depth of groove (tmax)
1.65
mm
Peak height (h1)
3.75
mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN223020008N$$$$$
DIN_SSC
HORN-223020008N
Katalog_SSC
22302
Plating seat size (Größe)
2
Width of groove (w)
2.29
mm
Nominal range (Nw)
2.15
mm
cutting-insert-width-met
1.9
mm
| Downloads | |
|---|---|
| S223021532.DXF | Download |
| S223021532_20230116_213301974.STP | Download |
| Download all files | |
