S224.0025.C1 TC92
Inserts
Part number S2240025C1TC92

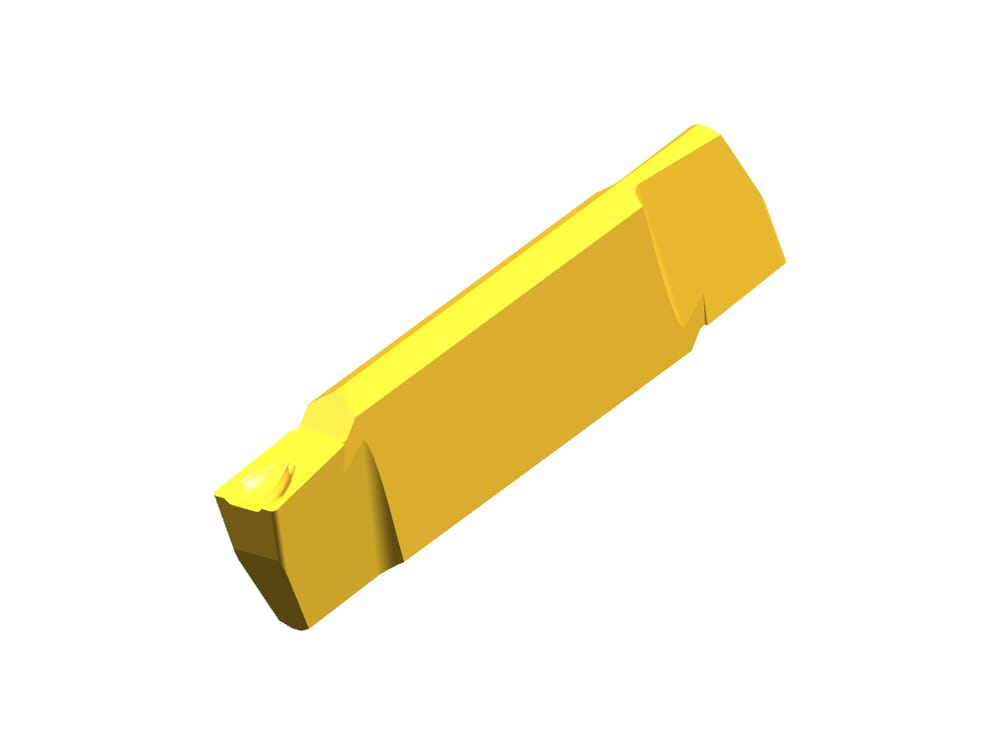

HORN Inserts S224.0025.C1 TC92 for Turning
Please note:Technical instructions
Parting-off chamfer (α)
0
°
eclass-shortcut
21-18-20-03
ISO_SSC
HORN224020058N$$$$$
DIN_SSC
HORN-224020058N
Katalog_SSC
224028
Plating seat size (Größe)
2
Width of groove (w)
2.5
mm
Corner radius (r)
0.15
mm
| Downloads | |
|---|---|
| S2240025C1.DXF | Download |
| S224_0025_C1_20171121_182213015.STP | Download |
| Download all files | |
