S224.0400.E2 TF45
Inserts
Part number S2240400E2TF45

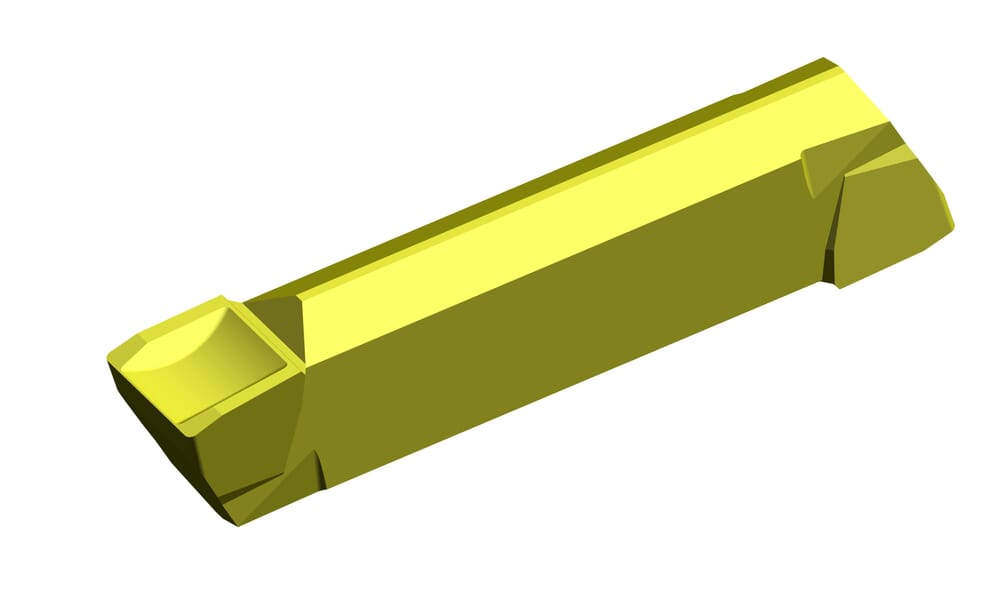

HORN Inserts S224.0400.E2 TF45 for Turning
Please note:Technical instructions
Parting-off chamfer (α)
0
°
eclass-shortcut
21-18-20-03
ISO_SSC
HORN224040058N$$$$$
DIN_SSC
HORN-224040058N
Katalog_SSC
224048
Plating seat size (Größe)
4
Width of groove (w)
4
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| S2240400E2_20210629_064353825.DXF | Download |
| S2240400E2_20230116_174131834.STP | Download |
| Download all files | |
