B105.0028.01

Toolholders

Part number B105002801

HORN Toolholders B105.0028.01 for Turning

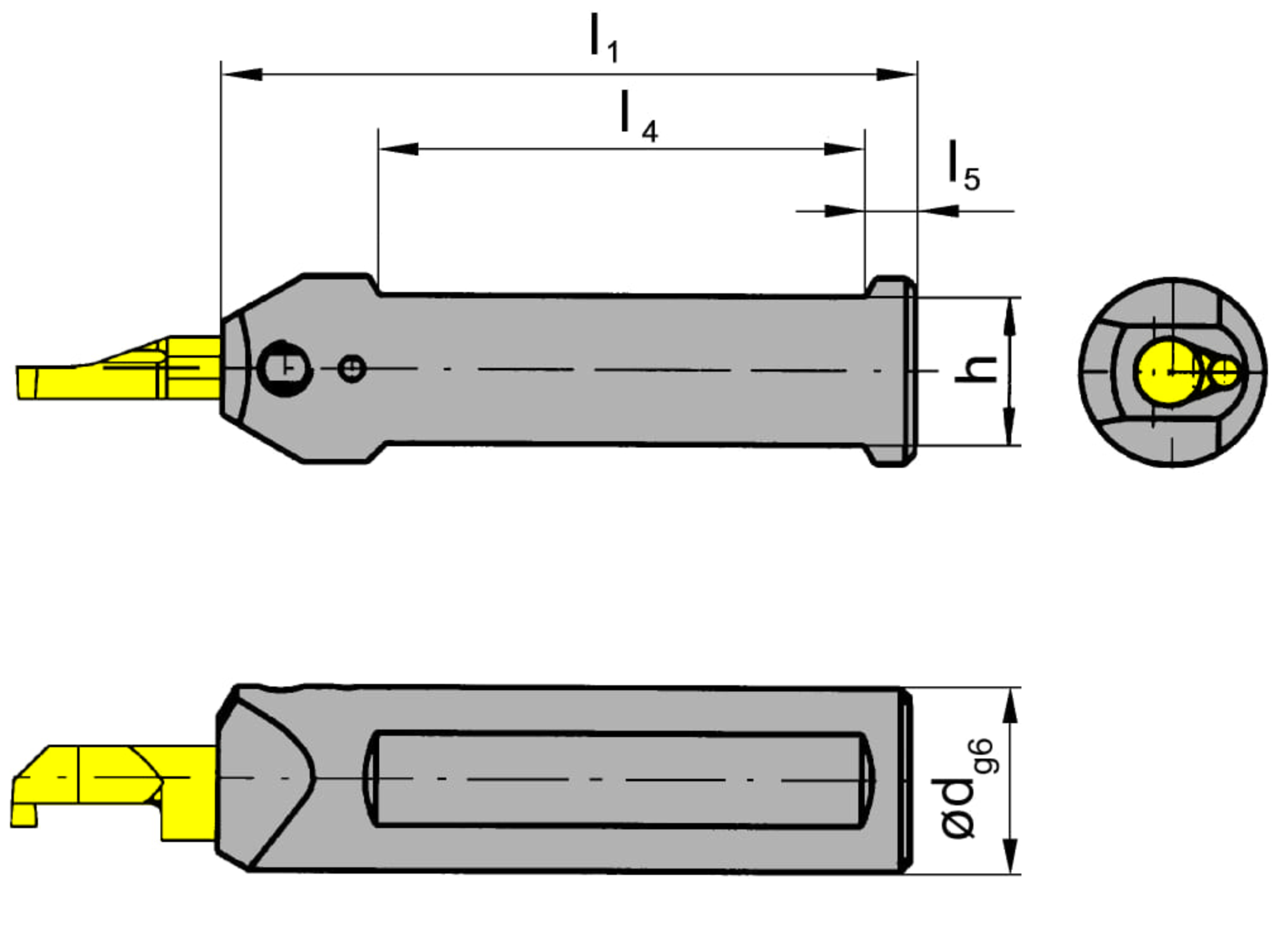

Shank, clamping diameter (d)

28 mm

eclass-shortcut

21-18-10-05

ISO_CCTMS

ZYL23G2800$$$$

DIN_CCTMS

ZYL02802315

Katalog_CCTWS

105123;105124;105125

DIN_CCTWS

HORN-10512395N;HORN-10512495N;HORN-10512595N

ISO_CCTWS

HORN105123$95N$$$$$;HORN105124$95N$$$$$;HORN105125$95N$$$$$

Length of clamping surface(s) (l4)

72 mm

Height clamping surface(s) (h)

26 mm

Total length (without cutting insert) (l1)

120 mm

Flange thickness (l5)

12 mm
