BU105.0750.S.05
Toolholder
Part number BU1050750S05

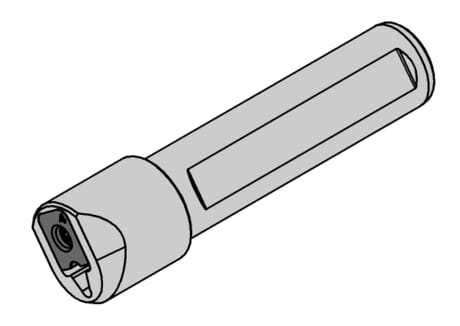

HORN Toolholder BU105.0750.S.05 for Turning
Please note:Technical instructions
Shank, clamping diameter (d)
19.05
mm
eclass-shortcut
21-18-10-01
ISO_CCTMS
ZYL23R7500$$$$
DIN_CCTMS
ZYL07502335
Katalog_CCTWS
105125
DIN_CCTWS
HORN-10512595N
ISO_CCTWS
HORN105125$95N$$$$$
Width of blank (b)
7
mm
Length of clamping surface(s) (l4)
55
mm
Head diameter (d1)
19.05
mm
Height clamping surface(s) (h)
17.05
mm
Total length (without cutting insert) (l1)
90
mm
Adjustment dimension (f1)
6.3
mm
| Downloads | |
|---|---|
| BU1050750S05.DXF | Download |
| BU1050750S05_20230112_173454086.STP | Download |
| Download all files | |
