DAHM.25.012.D122.02B
milling tool
Part number DAHM25012D12202B

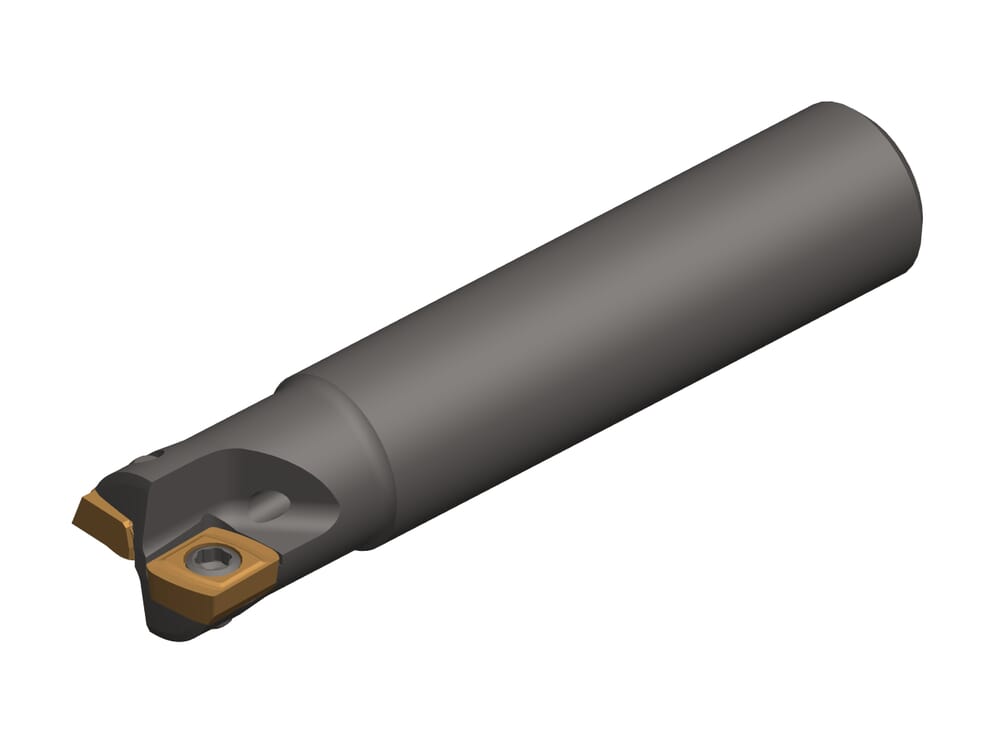

HORN milling tool DAHM.25.012.D122.02B for Milling
Please note:Technical instructions
Katalog_CCTWS
DAH25
eclass-shortcut
21-18-08-90

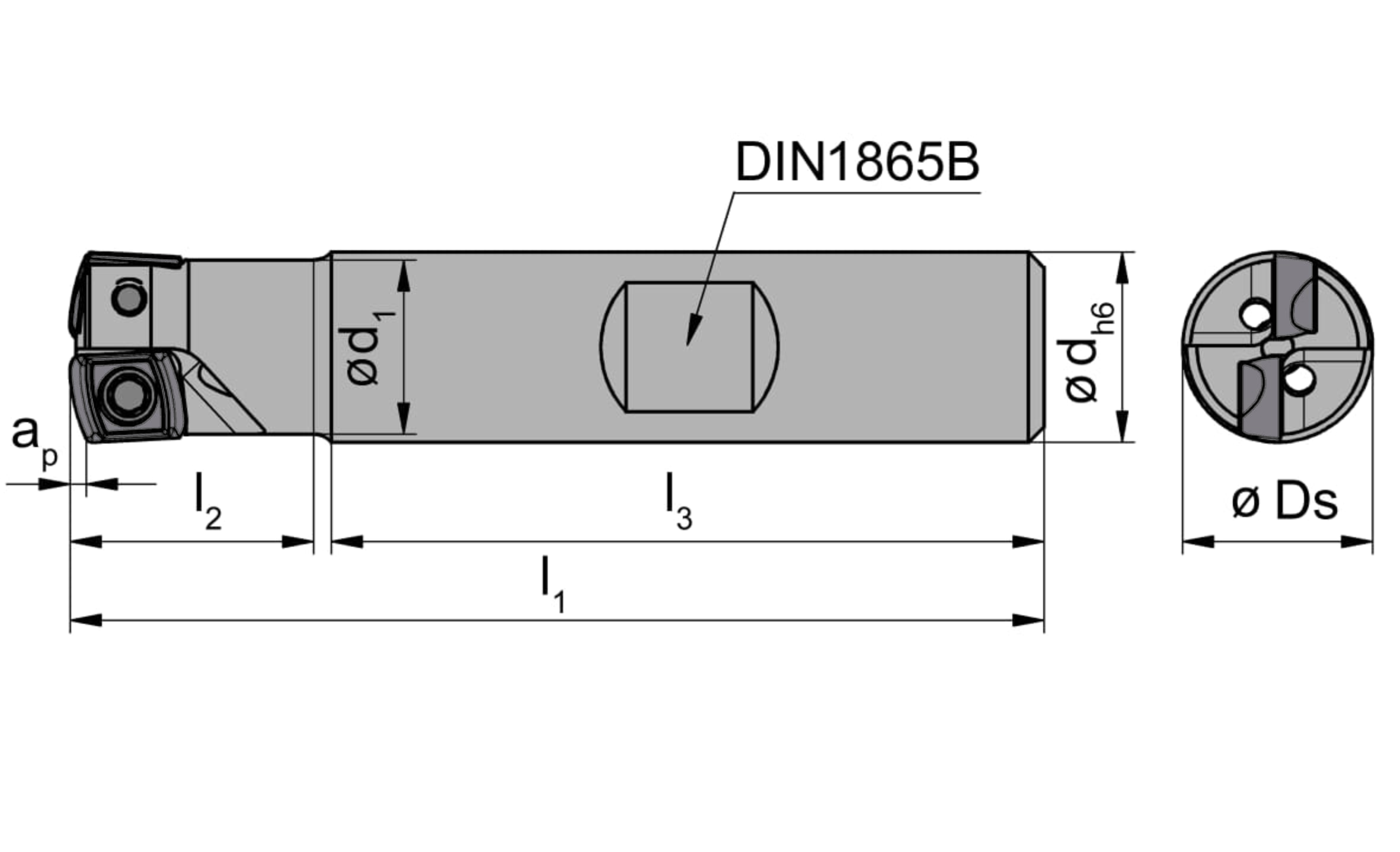

Tension length (l3)
45
Working length, Neck length, Extension length (l2)
15
Total length insert (l1)
61.5
mm
cone-diameter-met
12
Neck diameter (d1)
11
mm
Cutting depth (ap)
1
mm
ISO_CCTMS
ZYL10G1200h$06
DIN_CCTMS
ZYL01201005
DIN_CCTWS
HORN-DAH253N
ISO_CCTWS
HORNDAH25$$$3N$$$$$
Number of teeth (Z)
2
St.
Cutting diameter (Ds)
12
mm
Shank diameter (d)
12
mm
| Downloads | |
|---|---|
| DAHM25012D12202B_20210629_120214513.DXF | Download |
| DAHM25012D12202B_20210630_095948200.STP | Download |
| Download all files | |
