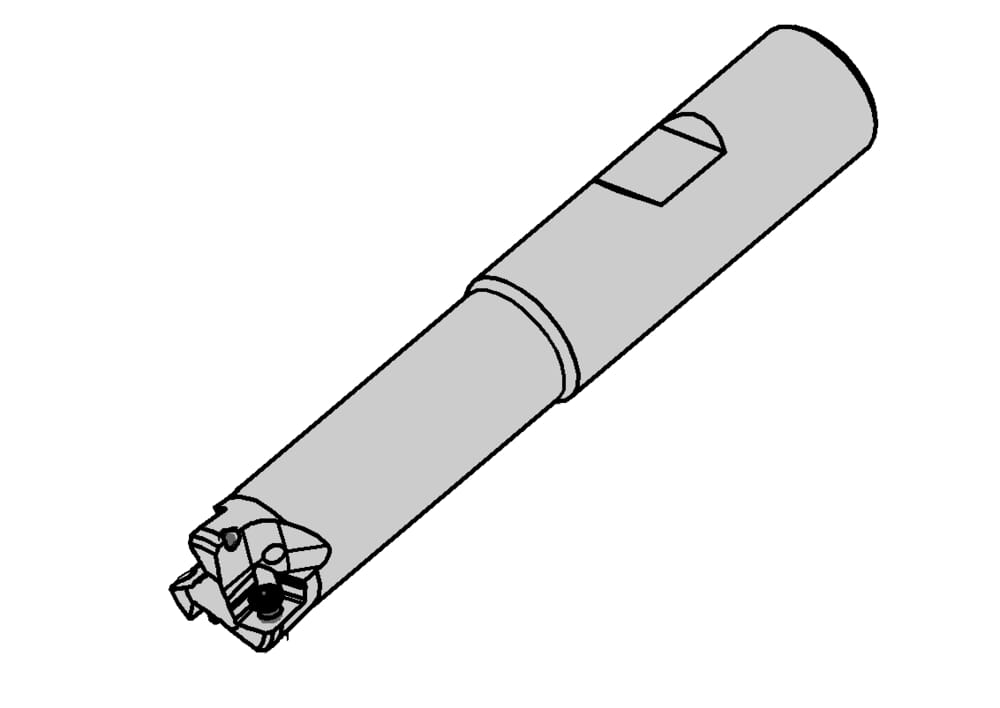

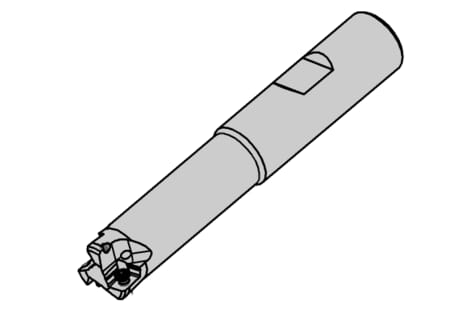

DAHM.25.012.D124.02B

milling tool

Part number DAHM25012D12402B

HORN milling tool DAHM.25.012.D124.02B for Milling

Katalog_CCTWS

DAH25

eclass-shortcut

21-18-08-90

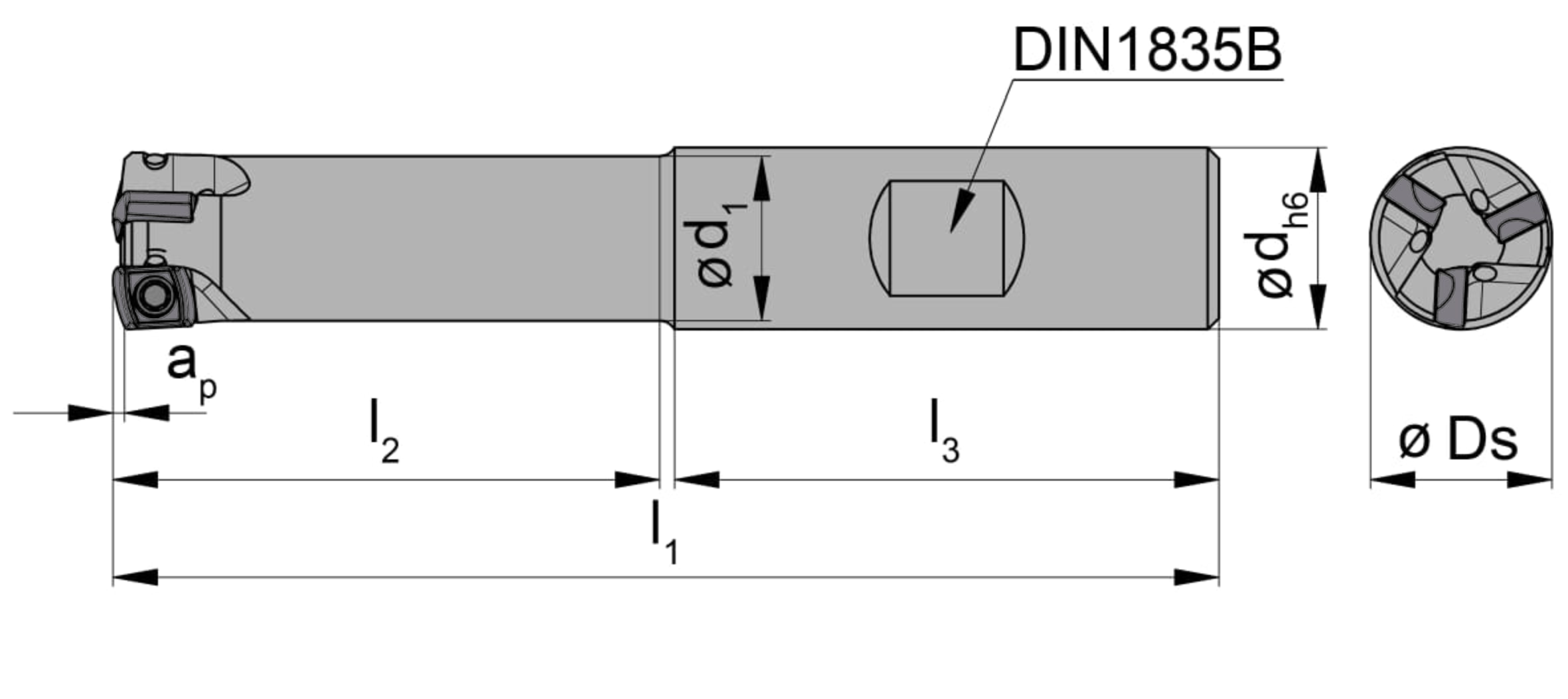

Tension length (l3)

45 mm

Working length, Neck length, Extension length (l2)

36 mm

Total length insert (l1)

82.5 mm

cone-diameter-met

12 mm

Neck diameter (d1)

11.5 mm

Cutting depth (ap)

1 mm

ISO_CCTMS

ZYL10G1200h$06

DIN_CCTMS

ZYL01201005

DIN_CCTWS

HORN-DAH253N

ISO_CCTWS

HORNDAH25$$$3N$$$$$

Number of teeth (Z)

2 St.

Cutting diameter (Ds)

12 mm

Shank diameter (d)

12 mm
