DAHM.25.012.M062.02
milling tool
Part number DAHM25012M06202

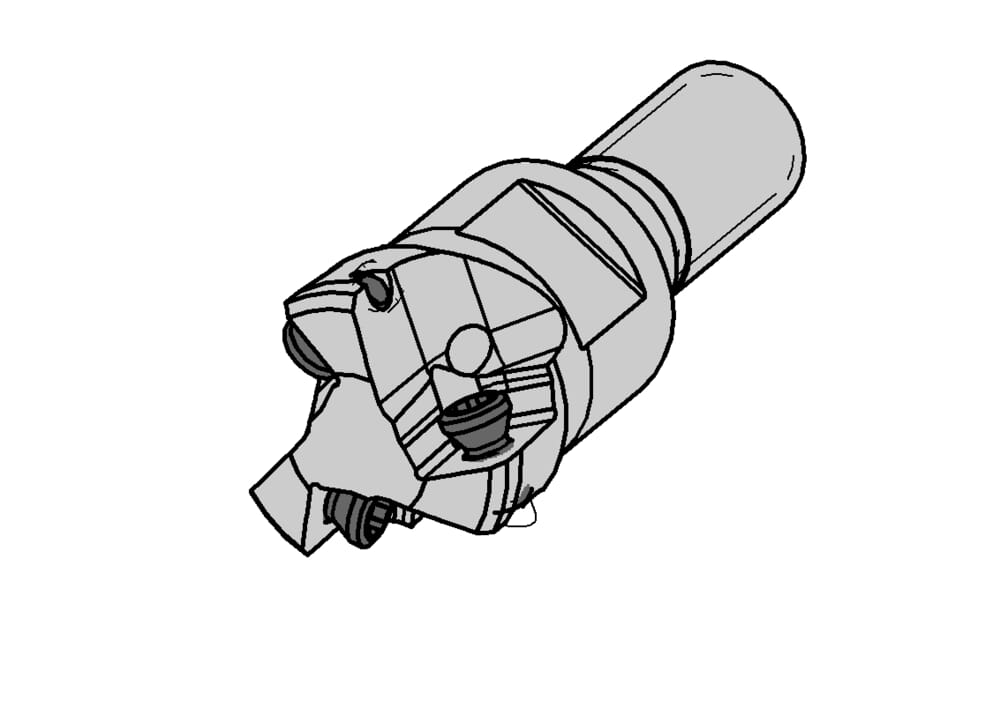

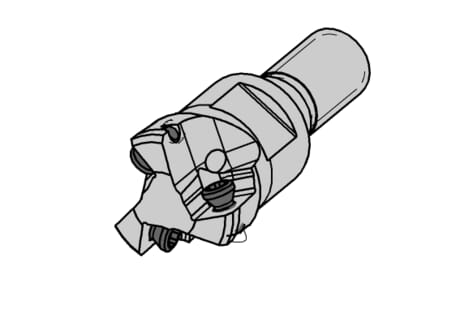

HORN milling tool DAHM.25.012.M062.02 for Milling
Please note:Technical instructions
DIN_CCTWS
HORN-DAH253N
eclass-shortcut
21-18-08-90

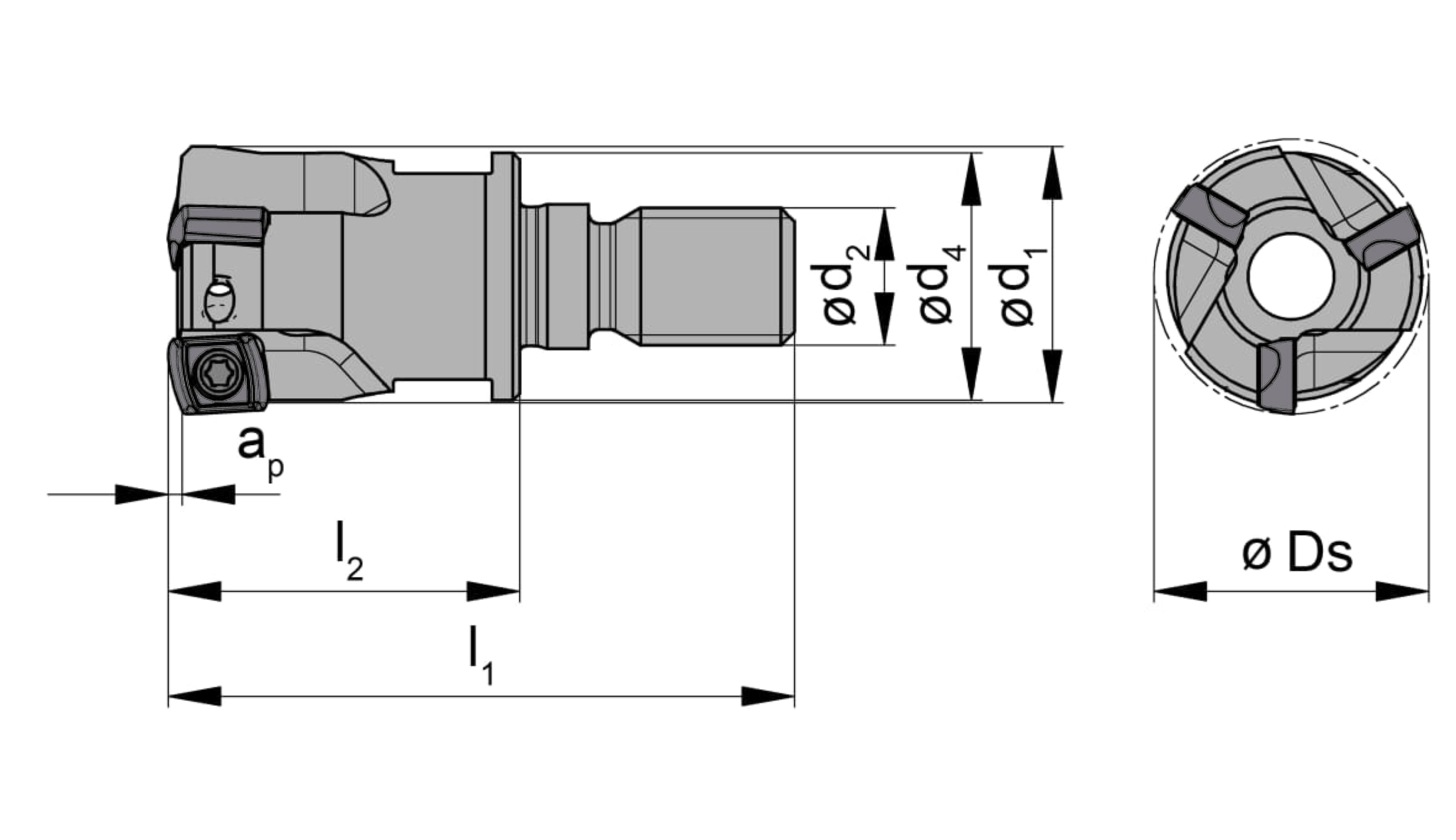

Maximum stepover (ap) (ap)
1
mm
Neck diameter on stop (d4)
11.5
Length from stop (l2)
13.5
Total milling length with insert (l1)
26
Katalog_CCTMS
6001
ISO_CCTMS
HORN00600105$$
DIN_CCTMS
HORN-00600105
Katalog_CCTWS
DAH25
ISO_CCTWS
HORNDAH25$$$3N$$$$$
Diameter miller body (d1)
11
Number of teeth (Z)
2
St.
Cutting diameter (Ds)
12
mm
Screw thread (d2)
M6
| Downloads | |
|---|---|
| DAHM25012M06202.DXF | Download |
| DAHM25012M06202_20210630_100047998.STP | Download |
| Download all files | |
