DAHM.37.080.A3245.08
Toolholder
Part number DAHM37080A324508

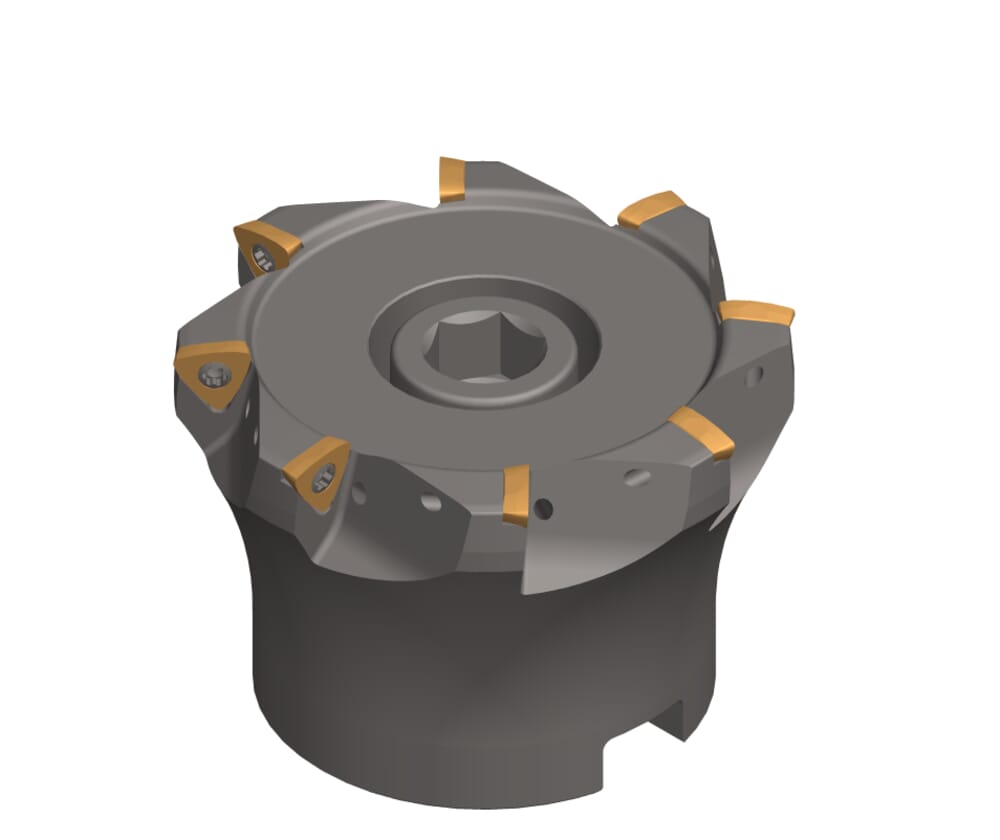

HORN Toolholder DAHM.37.080.A3245.08 for Milling
Please note:Technical instructions
cutting-depth-met
1.2
mm
eclass-shortcut
21-18-08-90
flange-diameter-milling-mandrel-met
59
mm
Diameter facing system for disk cutters (d2)
32
mm
Maximum stepover (ap) (ap)
1.2
mm
Depth carrier cross groove (C)
8
mm
Width carrier cross groove (b)
12.4
mm
Length from stop to base fastening screw head (l2)
33
mm
Neck diameter/ Flange diameter miller mandrel (dK)
59
mm
Lowering for mounting screw head (d5)
29.5
mm
Miller length without indexable insert (h2)
54.4
mm
Miller length with indexable insert (h)
55
mm
ISO_CCTMS
FDA22G3200$$$$
DIN_CCTMS
FDA03202200
Katalog_CCTWS
DAH37
DIN_CCTWS
HORN-DAH373N
ISO_CCTWS
HORNDAH37$$$3N$$$$$
Number of teeth (Z)
8
St.
Cutting diameter (Ds)
80
mm
