DAHM.82.020.D204.02B

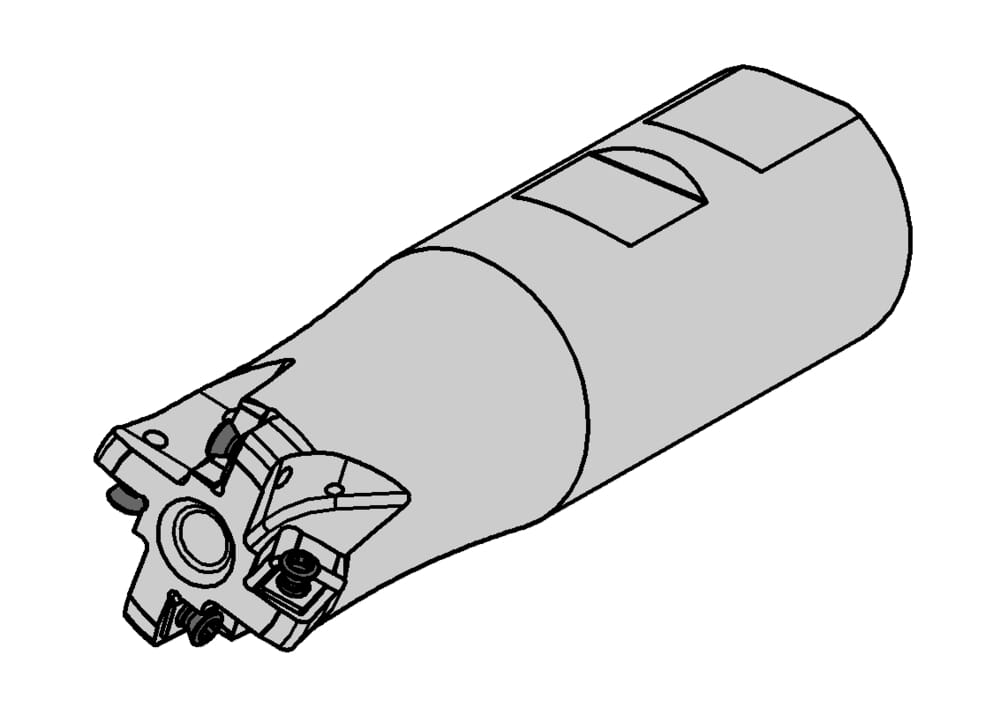

High-feed milling cutters shank
Part number DAHM82020D20402B
HORN High-feed milling cutters shank DAHM.82.020.D204.02B for Milling
Please note:Technical instructions
ISO_CCTWS
HORNDAH82$$$3N$$$$$

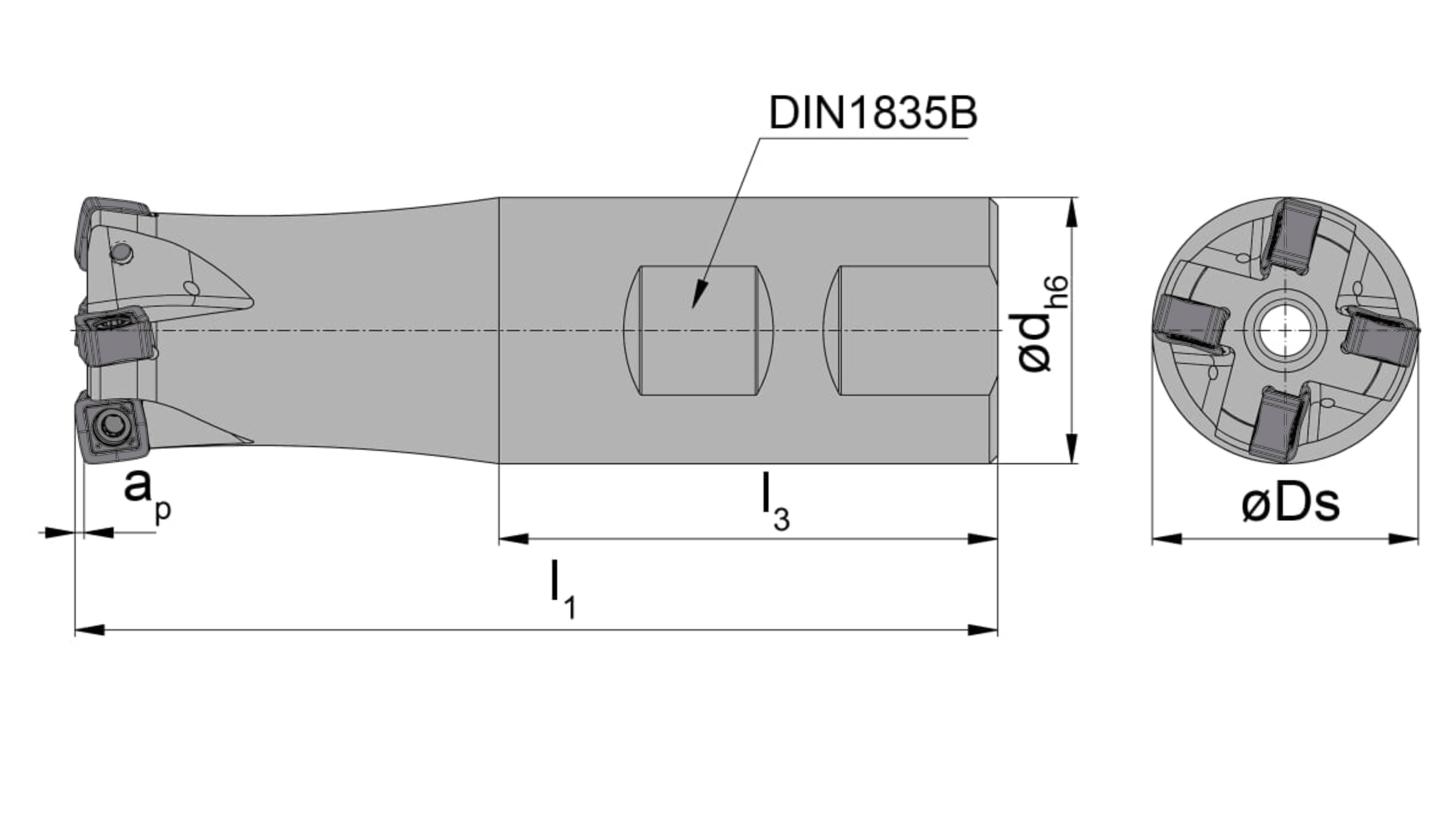

Number of revolutions maximum (nmax)
21000
Tension length (l3)
50
mm
Total length insert (l1)
87
mm
Cutting depth (ap)
1
mm
ISO_CCTMS
ZYL10G2000h$06
DIN_CCTMS
ZYL02001005
Katalog_CCTWS
DAH82
DIN_CCTWS
HORN-DAH823N
Number of teeth (Z)
2
St.
Cutting diameter (Ds)
20
mm
Shank diameter (d)
20
mm
| Downloads | |
|---|---|
| DAHM82020D20402B_20211215_151747224.DXF | Download |
| DAHM82020D20402B_20240117_132822569.STP | Download |
| Download all files | |
