DAHM.84.066.A2240.05

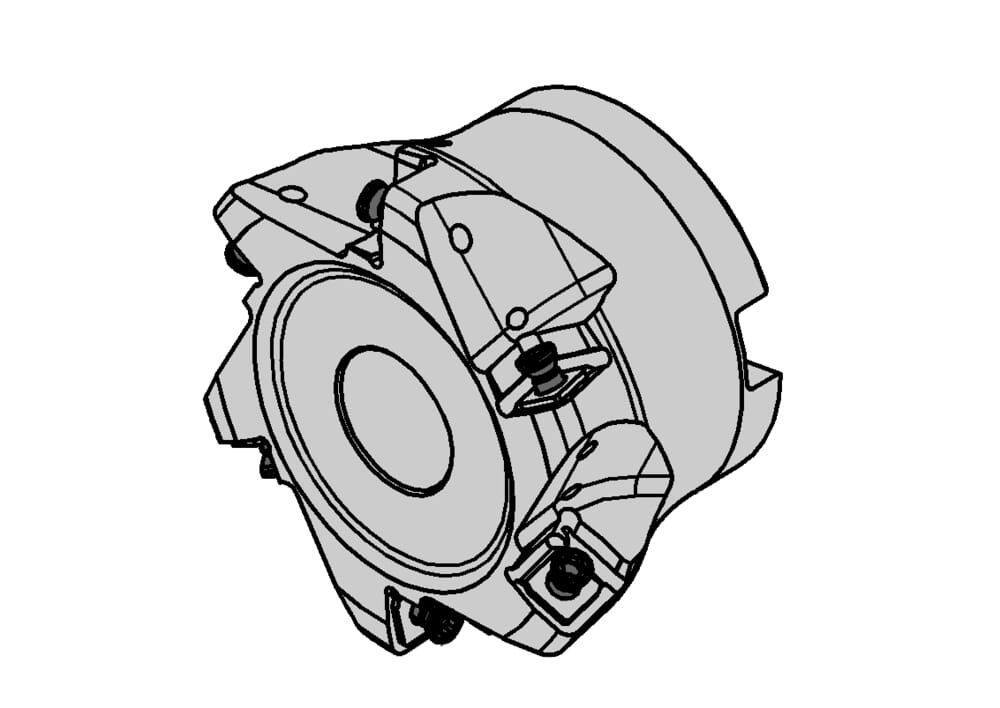

Aufsteckfräser
Part number DAHM84066A224005
HORN Aufsteckfräser DAHM.84.066.A2240.05 for Milling
Please note:Technical instructions
ISO_CCTMS
FDA22G2200$$$$

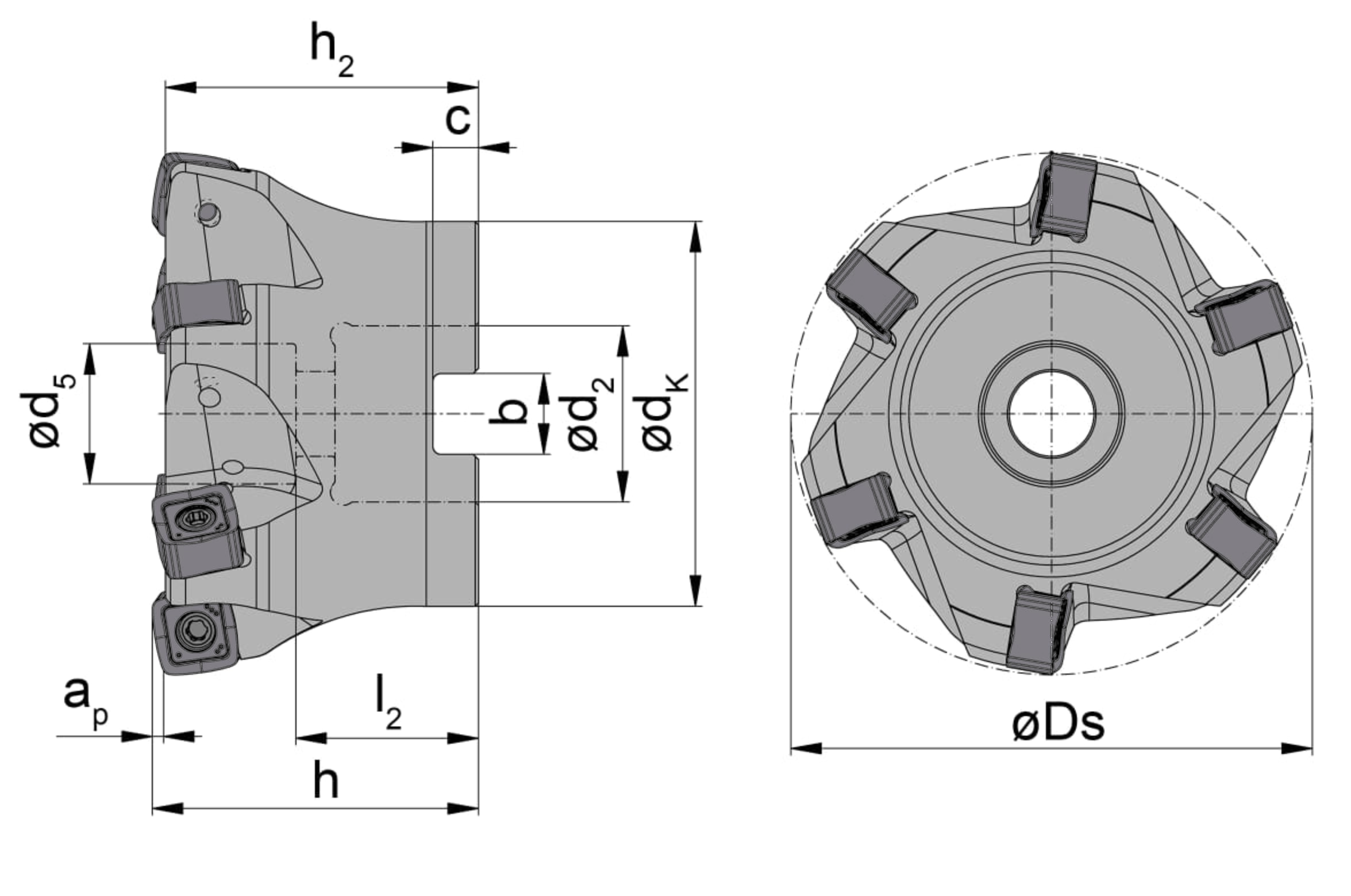

Diameter facing system for disk cutters (d2)
22
mm
Number of revolutions maximum (nmax)
6500
Min-1
Maximum stepover (ap) (ap)
1.5
mm
Depth carrier cross groove (C)
6.3
mm
Width carrier cross groove (b)
10.4
mm
Length from stop to base fastening screw head (l2)
25
mm
Neck diameter/ Flange diameter miller mandrel (dK)
49
mm
Lowering for mounting screw head (d5)
19.5
mm
Miller length without indexable insert (h2)
38
mm
Miller length with indexable insert (h)
40
mm
DIN_CCTMS
FDA02202200
Katalog_CCTWS
DAH84
DIN_CCTWS
HORN-DAH843N
ISO_CCTWS
HORNDAH84$$$3N$$$$$
Number of teeth (Z)
5
St.
Cutting diameter (Ds)
66
mm
