DAM31.016.M083.02B
Toolholder
Part number DAM31016M08302B

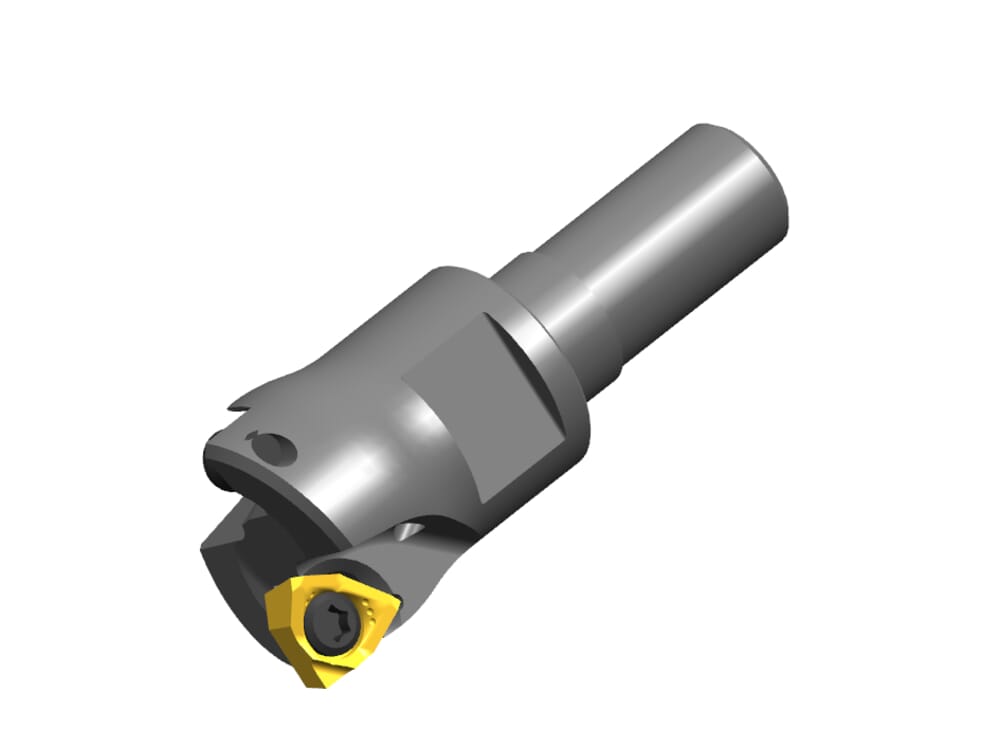

HORN Toolholder DAM31.016.M083.02B for Milling
Please note:Technical instructions
Katalog_CCTWS
DA3116
eclass-shortcut
21-18-08-90
Maximum stepover (ap) (ap)
3
mm
Key range (SW)
10
mm
Neck diameter on stop (d4)
13
mm
Length from stop (l2)
20
mm
Total milling length with insert (l1)
38
mm
Katalog_CCTMS
08001
ISO_CCTMS
HORN00800105$$
DIN_CCTMS
HORN-00800105
DIN_CCTWS
HORN-DA31163N
ISO_CCTWS
HORNDA3116$$3N$$$$$
Diameter miller body (d1)
15
mm
Number of teeth (Z)
2
St.
Cutting diameter (Ds)
16
mm
Screw thread (d2)
M8
