DAM31.020.D204.03B
Toolholder
Part number DAM31020D20403B

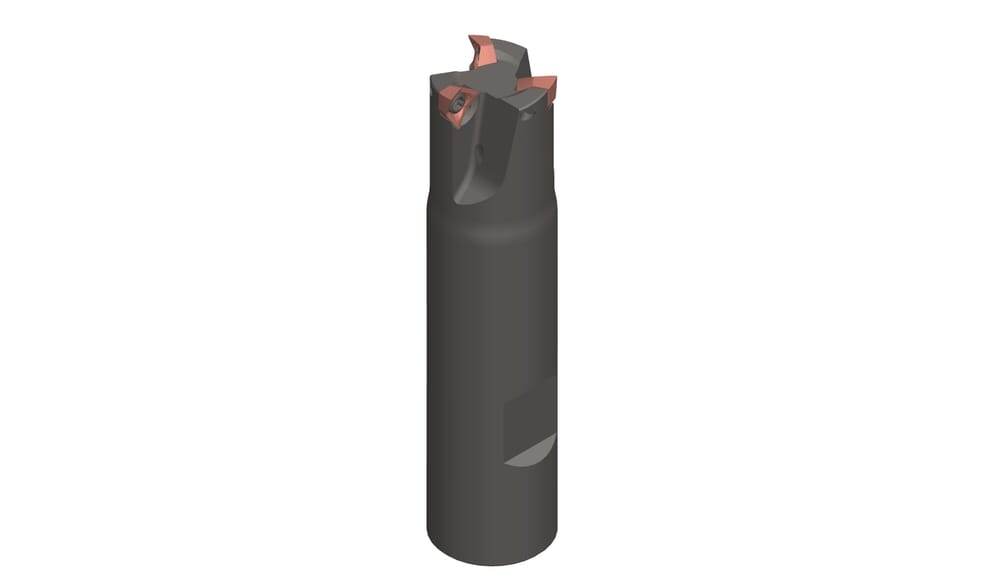

HORN Toolholder DAM31.020.D204.03B for Milling
Please note:Technical instructions
Katalog_CCTWS
DA3120
eclass-shortcut
21-18-08-90
Tension length (l3)
59
mm
Working length, Neck length, Extension length (l2)
21
mm
Total length insert (l1)
86
mm
Cone diameter (d)
20
mm
Neck diameter (d1)
19
mm
Cutting depth (ap)
3
mm
ISO_CCTMS
ZYL10G2000h$06
DIN_CCTMS
ZYL02001005
DIN_CCTWS
HORN-DA31203N
ISO_CCTWS
HORNDA3120$$3N$$$$$
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
20
mm
Shank diameter (d)
20
mm
| Downloads | |
|---|---|
| DAM31020D20403B_20210629_121512749.DXF | Download |
| DAM31020D20403B_20240117_135639667.STP | Download |
| Download all files | |
