DAM31.025.D255.04B

Toolholder

Part number DAM31025D25504B

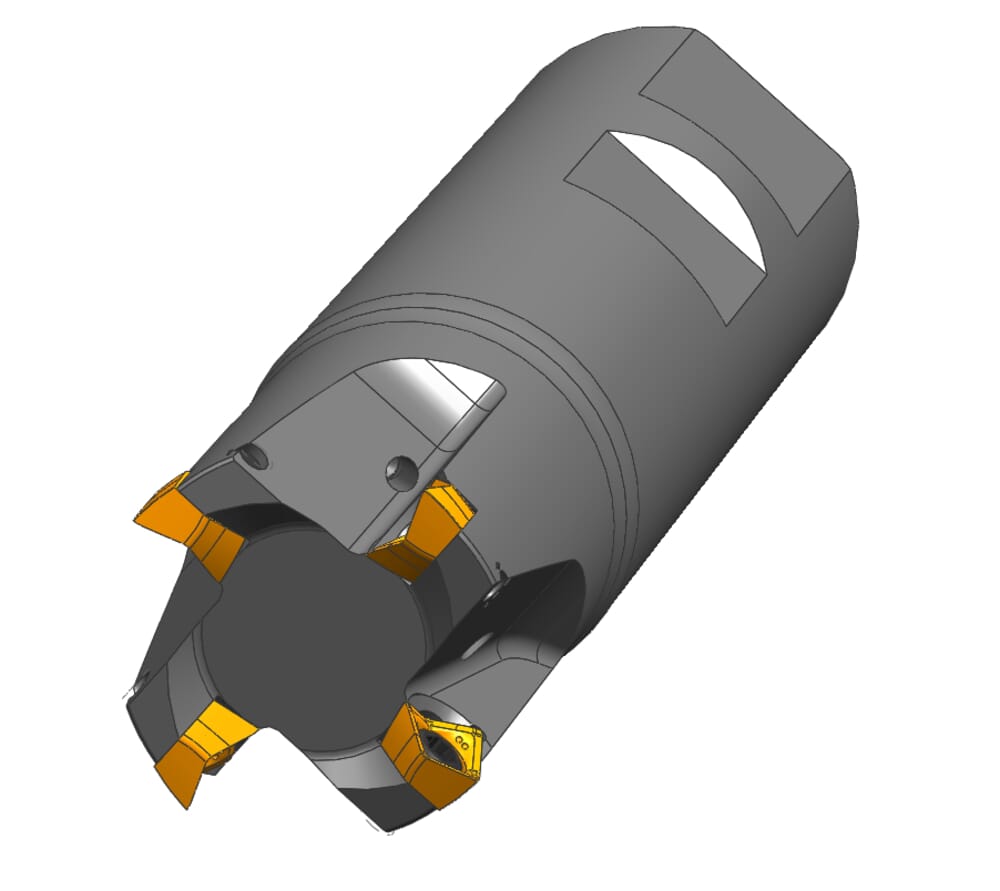

HORN Toolholder DAM31.025.D255.04B for Milling

Katalog_CCTWS

DA3125

eclass-shortcut

21-18-08-90

Tension length (l3)

64 mm

Working length, Neck length, Extension length (l2)

27 mm

Total length insert (l1)

97 mm

Cone diameter (d)

25 mm

Neck diameter (d1)

24 mm

Cutting depth (ap)

3 mm

ISO_CCTMS

ZYL10G2500h$06

DIN_CCTMS

ZYL02501005

DIN_CCTWS

HORN-DA31253N

ISO_CCTWS

HORNDA3125$$3N$$$$$

Number of teeth (Z)

4 St.

Cutting diameter (Ds)

25 mm

Shank diameter (d)

25 mm
