DAM31.032.M166.05B
Toolholder
Part number DAM31032M16605B

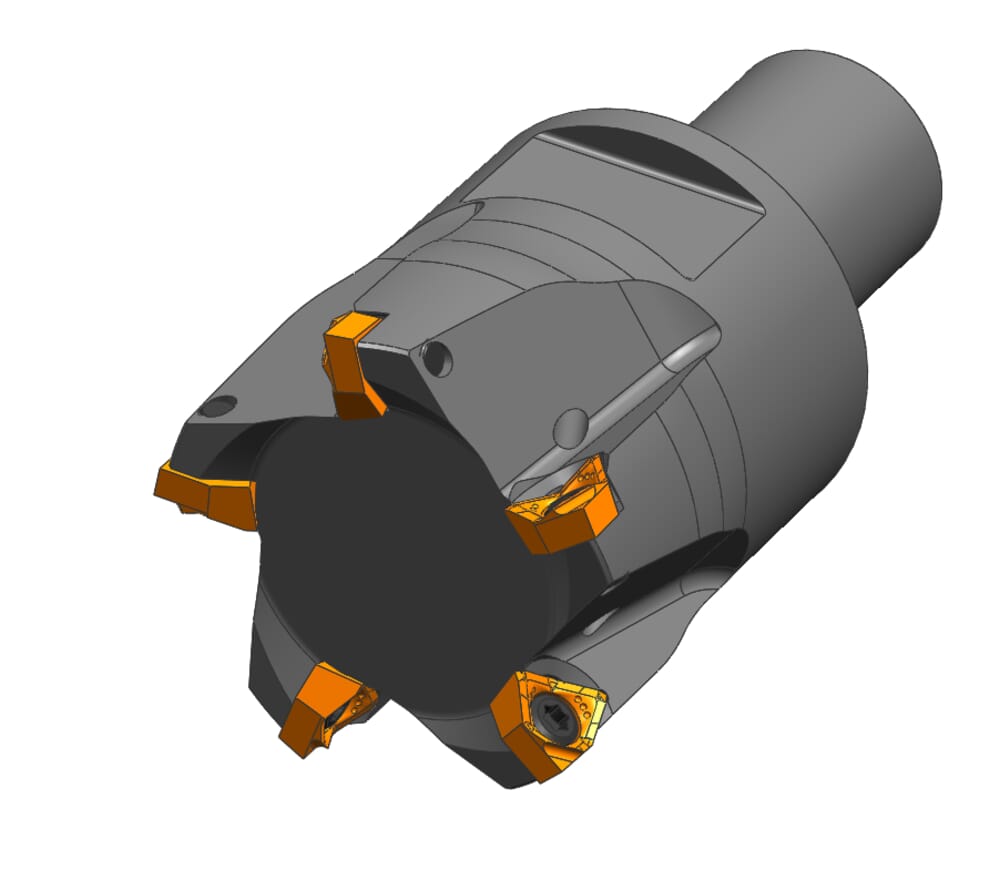

HORN Toolholder DAM31.032.M166.05B for Milling
Please note:Technical instructions
Katalog_CCTWS
DA3132
eclass-shortcut
21-18-08-90
Maximum stepover (ap) (ap)
3
mm
Key range (SW)
24
mm
Neck diameter on stop (d4)
29
mm
Length from stop (l2)
35
mm
Total milling length with insert (l1)
58
mm
Katalog_CCTMS
16001
ISO_CCTMS
HORN01600105$$
DIN_CCTMS
HORN-01600105
DIN_CCTWS
HORN-DA31323N
ISO_CCTWS
HORNDA3132$$3N$$$$$
Diameter miller body (d1)
31
mm
Number of teeth (Z)
5
St.
Cutting diameter (Ds)
32
mm
Screw thread (d2)
M16
