DAM31.414.D204.03B

Toolholder

Part number DAM31414D20403B

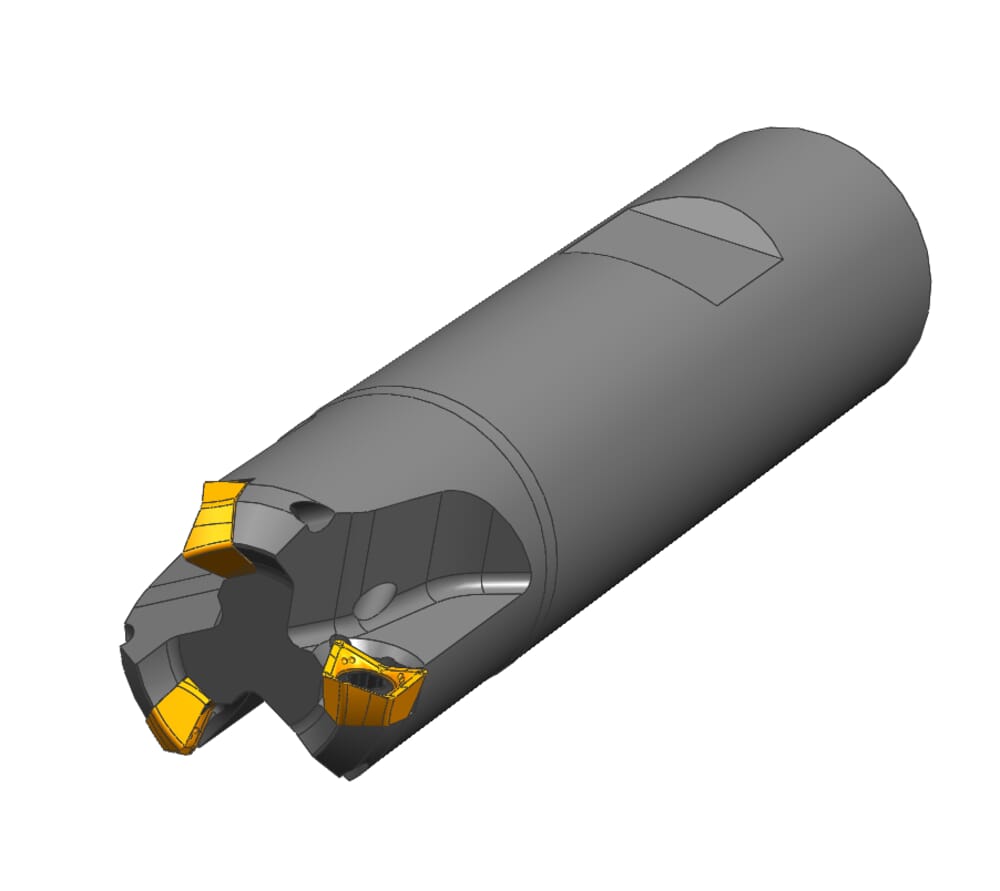

HORN Toolholder DAM31.414.D204.03B for Milling

DIN_CCTWS

HORN-DA31203N

eclass-shortcut

21-18-08-90

Tension length (l3)

62 mm

Working length, Neck length, Extension length (l2)

23 mm

Total length insert (l1)

87 mm

cone-diameter-met

20 mm

Neck diameter (d1)

18.8 mm

Cutting depth (ap)

2 mm

ISO_CCTMS

ZYL10G2000h$06

DIN_CCTMS

ZYL02001005

Katalog_CCTWS

DA3120

ISO_CCTWS

HORNDA3120$$3N$$$$$

Diameter (d6)

20.9 mm

Maximum cutting circle diameter (d5)

19 mm

Number of teeth (Z)

3 St.

Cutting diameter (Ds)

14.4 mm

Shank diameter (d)

20 mm
